TAT BP9019S-40 9.0×9.0×1.8mm Pin Mount Passive Piezoelectric Ceramic Buzzer 4000Hz 1~25Vp-p

BP9019S-40 is a mini passive piezoelectric ceramic buzzer manufactured by TAT. This pin mount buzzer has an ultra-thin dimension of 9.0×9.0×1.8mm, designed for space-limited PCB boards. It requires square wave drive signal to output 4000Hz prompt tone. With ultra-low power consumption and wide operating temperature range, it is a cost-effective audible indicator for compact electronic modules.

Model:
BP9019S-40
Brand:
TAT
Code:
BP9019S-40

Style:	Piezoelectric Ceramic buzzer
Operating Voltage:	1-25 Vp-p
Rated Current:	Max.1mA,at 4KHz 50% duty Square Wave 3Vp-p
Sound Output at 10cm:	Min.65dB,at 4KHz 50% duty Square Wave 3Vp-p
Capacitance:	13000Hz±30% pF At 1KHz
Operating Temperature:	-30℃~+70℃
Store Temperature:	-40℃~+85℃
Availability:

Quantity:



Inquire Add to Basket

Product Description

Key Features

Passive piezo ceramic type, driven by square wave signal
Oscillation Frequency: 4000 Hz
Operating Voltage: 1~25 Vp-p; Rated Voltage: 3 Vp-p
Low Current Consumption: Max 3mA at rated voltage
Sound Pressure Level: Min.65dB at 10cm
Ultra-thin compact size: 9.0×9.0×1.8mm, lightweight 0.3g
Housing: Black LCP, excellent heat resistance
Lead pin: Tin plated brass, anti-oxidation
Wide Temperature Range: -40℃ ~ +85℃ for operation and storage
RoHS compliant for global electronic products

Technical Specification

Item	Specification	Test Condition
Oscillation Frequency	4000 Hz	Square Wave
Operating Voltage	1~25 Vp-p	-
Rated Voltage	3 Vp-p	-
Current Consumption	Max.3 mA	At Rated Voltage
Sound Pressure Level	Min.65 dB @10cm	At Rated Voltage
Electrostatic Capacity	12000 ±30% pF	120Hz,1V
Operating Temperature	-40℃ ~ +85℃	-
Storage Temperature	-40℃ ~ +85℃	-

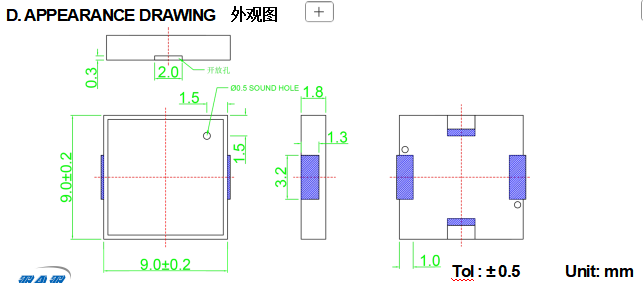

Dimension	9.0×9.0×1.8 mm	-
Max Weight	0.3 gram	-
Housing Material	Black LCP	-
Lead Pin	Tin Plated Brass(Sn)	-
Environmental Standard	RoHS	Yes

Application

This tiny pin piezo buzzer works as sound indicator for compact electronics:

1. IoT sensor modules

2. Portable electronic devices

3. Smart home small appliances

4. Wearable electronics

5. Instrument control panels

6. Mini detection & reminder equipment

Custom & Order Service

Samples available for acoustic and reliability testing
Custom options: resonant frequency, pin layout, laser marking
Datasheet, RoHS certificate and test report available on request

FAQ

Q: Is this buzzer active or passive? A: It is passive piezo buzzer. Square wave signal is needed, cannot be driven directly by DC power.

Q: What benefits does LCP housing bring? A: LCP material features good thermal stability, suitable for environments with large temperature fluctuation.

Q: Why choose this 9mm ultra-thin buzzer? A: It saves PCB space, perfect for slim and mini electronic products with limited internal space.
