BM8530S High Quality SMD Electromagnetic Buzzer

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
BM8530S SMD Electromagnetic Buzzer delivers reliable audio signals with stable frequency response and low power consumption for PCB applications. Its compact SMT design ensures easy assembly and consistent performance in consumer electronics, security systems, and industrial equipment.

- 8.5 × 8.5 × 3.0 mm body, approx. 0.6 g, black LCP housing rated for lead-free reflow
- Designed for continuous duty from -20 °C to +70 °C, storage -30 °C to +80 °C
- Compact SMD package compatible with automated pick-and-place assembly
  • BM8530S

Availability:
Quantity:

The BM8530S SMD Electro-Magnetic Buzzer is a precision-engineered surface-mount acoustic component specifically developed to generate clear, penetrating sound signals on densely populated PCBA boards. Encased in a sleek, miniaturized black polymer housing, this device operates through a highly responsive electromagnetic coil and metal diaphragm structure. When an electric current is applied, it creates a concentrated magnetic field that drives the diaphragm with exact mechanical precision, producing audible tones that easily cut through ambient environmental noise.

Recognized for its exceptionally stable performance, low power consumption, and crisp sound output, this acoustic device is an essential building block for modern electronic design. It offers significant advantages during manufacturing, including seamless SMT assembly compatibility, consistent frequency response, and long-term mechanical durability. Procurement teams and hardware engineers widely specify these buzzers for consumer electronics, home appliances, security systems, and industrial control equipment, where they serve as reliable components for critical alerts, user reminders, and operational status indications.

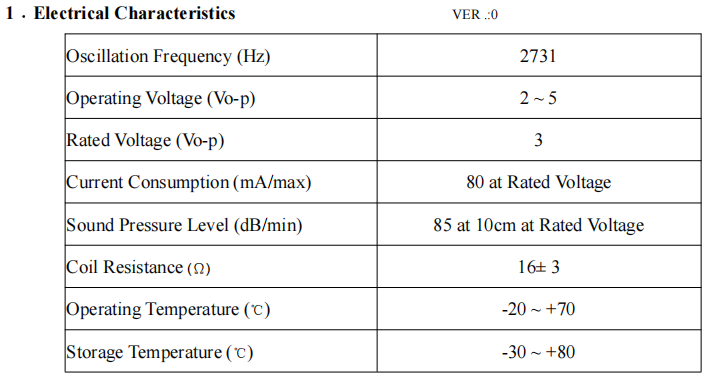

BM8530S SMD Electromagnetic Buzzer structural design and compact footprint for PCBA boards

Product Advantages & Features

1. Stable Sound Performance & High Reliability

Our SMD electromagnetic buzzers deliver a consistently clear and distortion-free sound output, driven by a meticulously calibrated coil and diaphragm architecture. The operating frequency remains exceptionally stable within a strict ±2% tolerance, guaranteeing that the reliable sound component produces the exact auditory feedback required for critical safety applications. Built to withstand demanding assembly and field conditions, the device is rated for continuous operation from -20 °C to +70 °C and for storage down to -40 °C, so the alert tone stays stable in equipment that sees humidity and temperature swings. The coil and diaphragm assembly is designed for continuous duty, which keeps maintenance out of the picture over the service life of the host product.

2. Low Power Consumption & Efficient Driving

Engineered specifically for energy efficiency, this DC driven buzzer operates optimally at low rated voltages ranging from 1.5V to 5V, while maintaining an ultra-low current consumption of just 10–30mA. This highly efficient electromagnetic structure ensures a strong, audible sound output without draining battery reserves, making it the perfect energy efficient buzzer for portable, battery-powered electronic devices. By minimizing energy usage and reducing thermal output, it actively helps hardware designers lower the overall system power consumption, extending the operational life of the end-user's device between charges.

3. Compact Size & SMT Compatibility

Featuring a miniaturized SMD buzzer small size design, these acoustic components are perfectly optimized for high-speed, automated pick-and-place assembly processes. With an 8.5 × 8.5 × 3.0 mm footprint and a body of only 0.6 g, the compact form factor supports high-density PCB layout integration. Crucially, the component is engineered to withstand rigorous manufacturing environments, supporting lead-free reflow soldering with a peak of 250 °C max and 10 s max above 245 °C. We also provide comprehensive mounting guidelines to prevent coil delamination during the heating phase. This SMT buzzer component directly improves manufacturing throughput and reduces manual assembly costs on the factory floor.

4. Customizable Sound & Versatile Applications

To meet diverse auditory requirements, these electronic alert buzzers support customizable frequency ranges, most commonly between 2kHz and 4kHz, delivering targeted acoustic profiles. They are capable of generating impressive sound pressure levels reaching up to 85–95dB at a distance of 10cm, ensuring the alert is heard distinctly even in noisy environments. Whether you need a high sound pressure buzzer for industrial alarms or a softer tone for consumer gadgets, the acoustic and structural characteristics can be tailored. This customizable buzzer adapts seamlessly to smart home systems, automotive electronics, and specialized medical equipment.

Technical Parameters

The following specifications detail the core operational limits and acoustic capabilities of the BM8530S series, ensuring exact alignment with your circuit design requirements.

Parameter

Specification Value

Rated Voltage Range

1.5V – 5V DC

Current Consumption

10 – 30mA

Operating Frequency

2kHz – 4kHz (Stable within ±2%)

Sound Pressure Level (SPL)

85 – 95dB at 10cm

Component Dimensions

8.5 × 8.5 × 3.0 mm

Operating Temperature

-20 °C ~ +70 °C

Storage Temperature

-30 °C ~ +80 °C

Net Weight

Approx. 0.6 g

Housing Material

Black LCP, reflow compatible

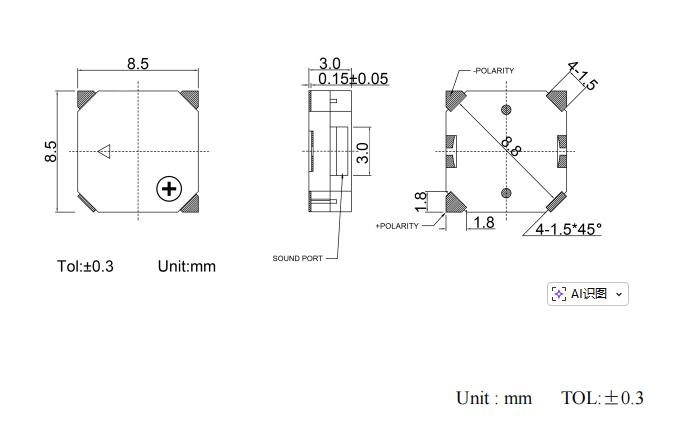

SMD buzzer component integrated into automated SMT assembly line for PCB manufacturing

Product Uses

1. Consumer Electronics Devices

SMD electromagnetic buzzers are heavily integrated into everyday consumer electronics, including smartphones, tablets, wearable fitness trackers, and handheld gaming gadgets. In these devices, they provide essential audio feedback for incoming notifications, tactile button presses, daily alarms, and critical system alerts. Their ultra-compact size and 10–30mA low power consumption make them the ideal acoustic solution for space-constrained, battery-dependent designs. Furthermore, their stable sound output guarantees a clear, pleasant, and consistent user experience without draining the device's battery life.

2. Home Appliances

Within the household ecosystem, these buzzers serve as vital auditory reminder components in appliances such as microwave ovens, washing machines, induction cookers, and smart air conditioners. They emit a distinct, resonant chime that notifies users of operation completion, filter change warnings, or functional status changes, easily cutting through ambient kitchen or laundry room noise. Their inherent mechanical durability and ability to operate flawlessly in fluctuating temperature and high-humidity conditions make them exceptionally reliable for years of continuous use in demanding household environments.

3. Security and Alarm Systems

In physical security infrastructure—ranging from commercial alarm panels and smoke detectors to biometric access control systems—SMD buzzers execute a critical life-safety function. They are engineered to generate immediate, piercing warning sounds that alert building occupants to potential dangers, unauthorized door access, or internal system malfunctions. The ability to instantly output a high sound pressure level of up to 95dB ensures that these fast-response alerts are highly effective and impossible to ignore in safety-critical applications.

4. Medical & Automotive Devices

The part is RoHS compliant and is built for applications where an audible cue carries real weight: patient monitors, diagnostic instruments and portable healthcare products, as well as dashboard alerts and driver-assist warnings. In both cases the limit that matters is the same — the tone must keep sounding across the rated -20 °C to +70 °C window and under the vibration conditions listed below. Tell us the qualification documents your programme requires and we will confirm what we can supply.

How to Choose an SMD Electromagnetic Buzzer?

Selecting the exact acoustic component for your PCBA requires a careful evaluation of electrical, mechanical, and environmental factors. Consider the following criteria to ensure optimal integration and user experience:

  • Electrical Compatibility: Verify the rated voltage (1.5V–5V) and current draw (10–30mA) to ensure it aligns perfectly with your existing drive circuit capabilities without overloading the power rail.

  • Acoustic Requirements: Check the sound pressure level—aiming for the 85–95dB at 10cm range—to guarantee the alert meets your application’s specific audibility needs. Pay close attention to the frequency range (typically 2kHz–4kHz) to achieve the desired sound clarity and pitch.

  • Footprint & Assembly: Evaluate the physical size and SMT package dimensions (8.5 × 8.5 × 3.0 mm) to confirm it matches your available PCB real estate and automated pick-and-place nozzle requirements.

  • Environmental Resilience: Review the operating temperature range (-20 °C ~ +70 °C) and verify international reliability standards, such as RoHS compliance, to ensure long-term performance in the intended deployment environment.

Reliability Test

Every test below is followed by a functional check. Appearance and performance must stay unchanged, and sound pressure level may not fall by more than 10 dB from the initial value.

Test

Condition

Ordinary temperature life

96 h at 25 ± 10 °C, driven at rated voltage, resonant frequency, 1/2 duty square wave

High temperature

Storage at +85 °C for 96 h

Low temperature

Storage at -40 °C for 96 h

Humidity

+40 ± 3 °C at 90–95 % RH for 48 h, then 6 h at room temperature

Vibration

1000 cycles/min at 1.5 mm amplitude, 1 h in each of three axes

Reflow

Recommended reflow profile; no abnormality afterwards and the solder fillet meets requirement

The table lists the conditions we run in production qualification. If your programme needs a specific test added — long-term damp heat, salt spray, or a customer-defined shock sequence — send the spec and we will quote it.

Soldering Condition

Reflow follows the profile below. The peak is a component limit, so do not exceed it even when the solder paste datasheet allows a higher one.

Stage

Value

Preheat

170–190 °C, 90 ± 30 s

Ramp rate

4 °C/s max

Peak temperature

250 °C max

Time above 245 °C

10 s max

Cooling

By air

During automated mounting, keep any bending, expanding, pulling force or mechanical shock on the part to a minimum. Excessive soldering temperature, or a gradient that is too steep in either direction, can cause electrical failure or mechanical damage.

Mounting & Handling

  • The housing is not sealed against foreign material. Keep magnetic powder, washing solvent, flux and corrosive gas out of the sound port during your process — once material enters the cavity, output can drop and does not recover.

  • Place the part flat on its pads before reflow; a tilted body leaves one pad with an incomplete fillet and shifts the sound port away from the board opening.

Documentation

The full series datasheet covers the dimensional drawing, the reflow profile, the reliability conditions above and the packaging specification. Because the same 8.5 × 8.5 mm body is built in several drive versions, we send the document that matches your circuit rather than a generic one.

To get it: send the drive voltage and waveform, the target frequency and sound pressure level at 10 cm, the mounting type and your annual quantity. We will come back with the matching build and its datasheet.

Downloads

Datasheet: BM8530S-0327-16 Datasheet (PDF, 589 KB) — direct download, no form.

This PDF is the production document for part number BM8530S-0327-16, the 3.6 Vo-p rated build of this body. The specification table on this page lists the series range; the electrical and acoustic values inside the PDF apply to the 3.6 Vo-p variant.

What the document contains:

  • Dimensional drawing with the tolerance band and the pad layout

  • Electrical and acoustic values together with the voltage and duty they are rated at

  • Reliability test items, test conditions and acceptance criteria

  • Reflow soldering profile, PCB mounting and handling notes

Designing around a different drive voltage? Send the voltage range, waveform and target sound pressure level and we will return the matching part number and its own datasheet, so the document you file with your design always matches the part on the BOM.

Supply Chain & Technical Support

Securing a reliable component is only half the equation; partnering with a capable manufacturer ensures project success from prototyping to mass market release. Our production facilities operate under strict ISO 9001 certification, implementing comprehensive batch traceability management. This rigorous quality control system guarantees that whether you order a small pilot run or a million units, the acoustic performance and physical dimensions will exhibit zero deviation.

To support dynamic procurement needs, we offer highly flexible Minimum Order Quantities (MOQ) alongside competitive tiered pricing structures, keeping your costs low while maintaining stable delivery schedules. Furthermore, our engineering team provides in-depth technical support, offering specialized guidance on drive circuit design and acoustic cavity structural adaptation to maximize the buzzer's resonance in your specific housing. Every order is backed by our commitment to quality, featuring a rapid-response RMA protocol that guarantees swift resolution and replacements within 30 days, minimizing any potential disruption to your assembly lines.
