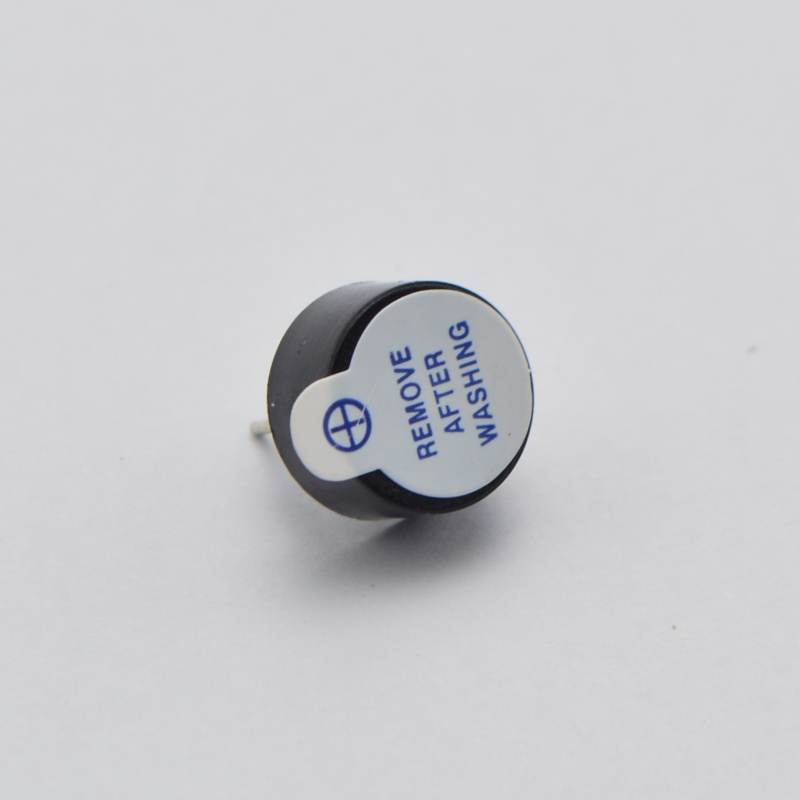

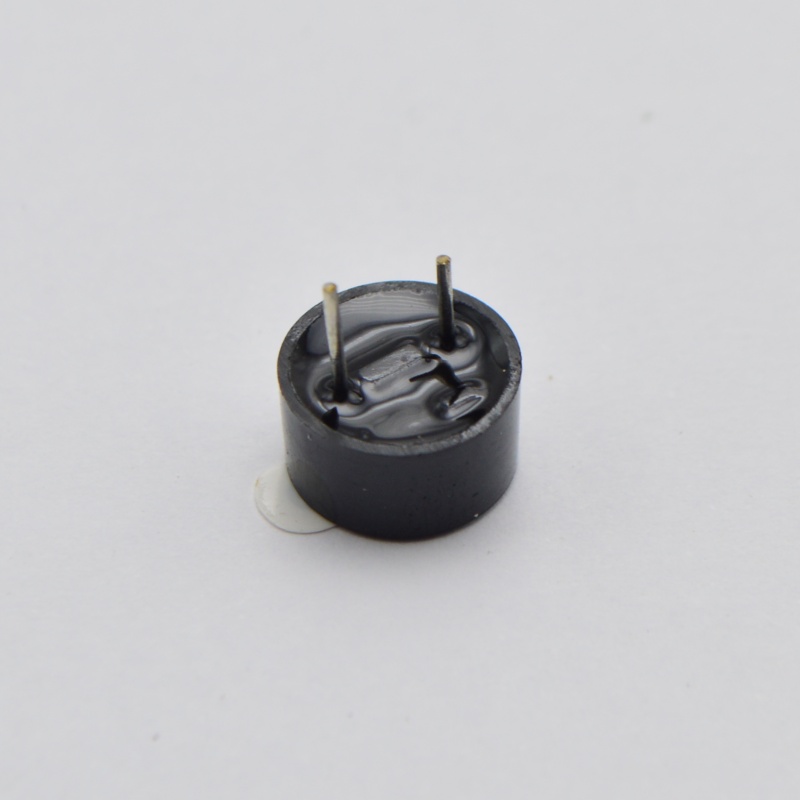

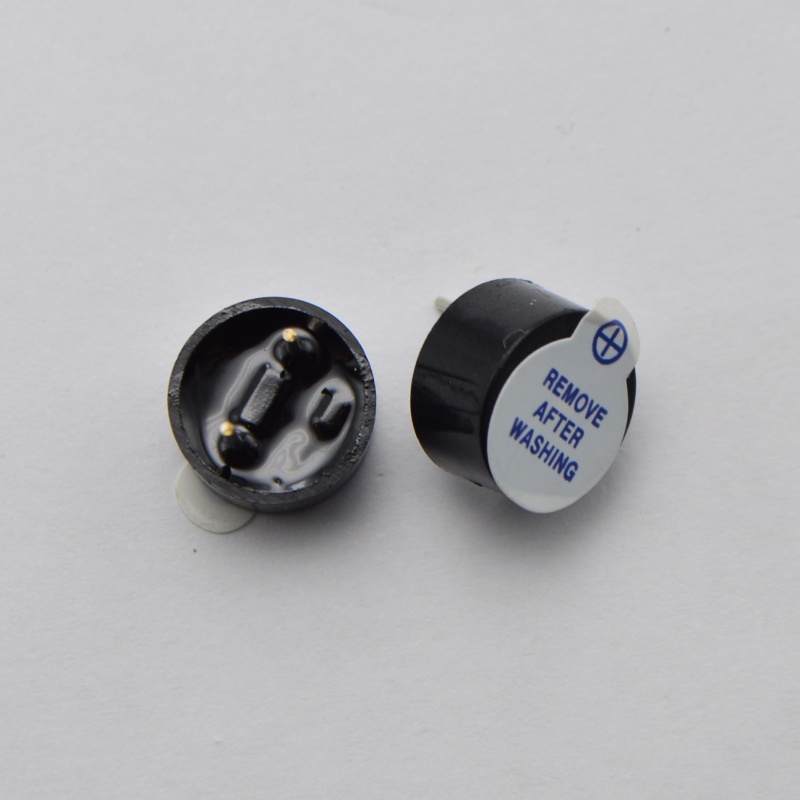

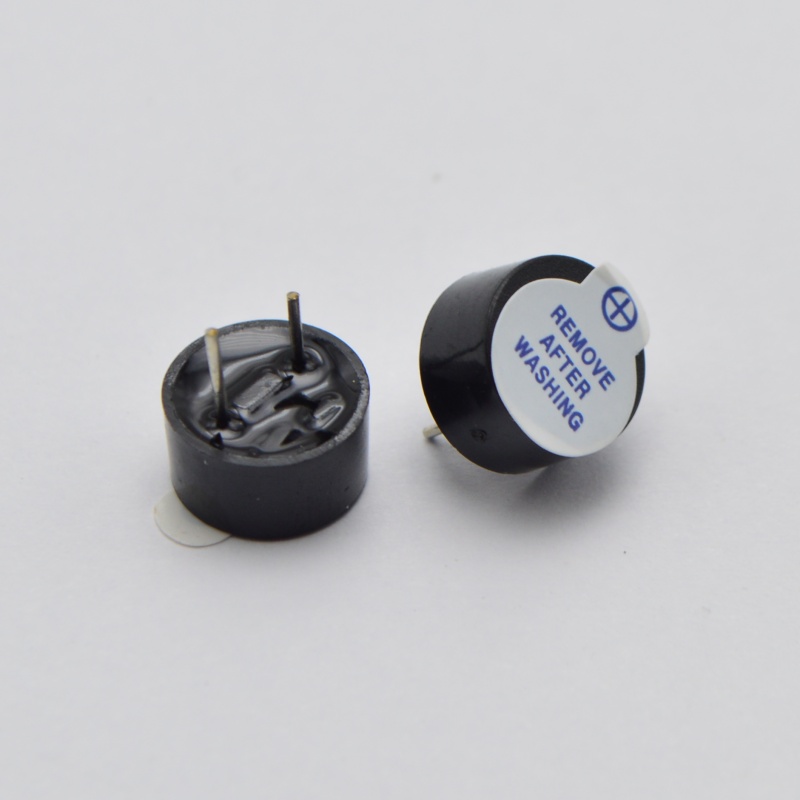

The BMC9650 Electromagnetic Buzzer is an industrial-grade electro-acoustic component engineered to generate reliable sound through the precise interaction of a magnetic field and a vibrating diaphragm. Constructed with a durable, flame-retardant casing, a precision-wound pure copper coil, and a highly responsive elastic diaphragm, this device ensures long-term acoustic stability and structural integrity. When a direct current passes through the internal coil, it induces a magnetic force that drives the diaphragm, producing a sharp, penetrating audible tone that easily cuts through ambient factory noise or everyday household environments.
Recognized for its consistent sound output, straightforward driving circuit requirements, and dependable performance even at low voltages, this buzzer serves as a critical notification tool. With its moderate power consumption profile and distinct, clear tone quality, it is widely specified for alarms, domestic appliances, heavy industrial machinery, and electronic monitoring devices where immediate status indication is required.
The BMC9650 provides highly stable sound output driven by its optimized coil-and-diaphragm architecture. Operating frequencies are strictly controlled within a narrow ±2–3% tolerance, guaranteeing a consistent, recognizable tone across massive production batches. Delivering sound pressure levels between 85–95dB at a 10cm distance, it projects a loud, unmistakable alert. To ensure this reliability, every unit undergoes rigorous full-inspection of acoustic parameters, alongside extreme high-low temperature aging and drop tests, securing outstanding yield rates and audio uniformity. This stable frequency buzzer acts as a reliable audio component, ensuring clear sound buzzer performance for critical systems requiring precise acoustic signaling.
Designed for straightforward implementation, these buzzers operate directly on DC voltage without necessitating complex external oscillation circuits. With typical operating voltages ranging broadly from 1.5V to 12V, they are readily compatible with diverse electronic architectures. Available in both Surface Mount Device (SMD) and Dual In-line Package (DIP) formats, they perfectly accommodate automated wave soldering and reflow soldering processes. This easy drive buzzer design minimizes engineering complexity, accelerates assembly line efficiency, and reduces overall component costs, making this simple circuit buzzer an ideal electronic alarm component for volume manufacturing environments.
Engineered to strike an optimal balance between energy draw and acoustic volume, this efficient electromagnetic buzzer typically consumes merely 20–50mA while projecting a commanding, audible tone. This medium power buzzer profile makes it exceptionally suited for battery-operated portable instruments and fixed installations alike, where a strong sound buzzer is necessary without draining system reserves. Its reliable energy efficiency guarantees dependable operation across fluctuating environmental conditions, serving as a steadfast audible alert device.
Flexibility remains a core attribute of this multi-application buzzer. Manufacturers can request specific customization options regarding operating voltage, pin pitch dimensions, wire lengths, and targeted frequency responses (typically tuned between 2–4kHz) to match unique circuit board layouts. Whether you need a specific PCB mount buzzer or a tailored alarm buzzer component, this customizable buzzer adapts to precise engineering requirements, allowing designers to optimize acoustic alerts for automotive electronics, domestic appliances, and complex industrial systems.

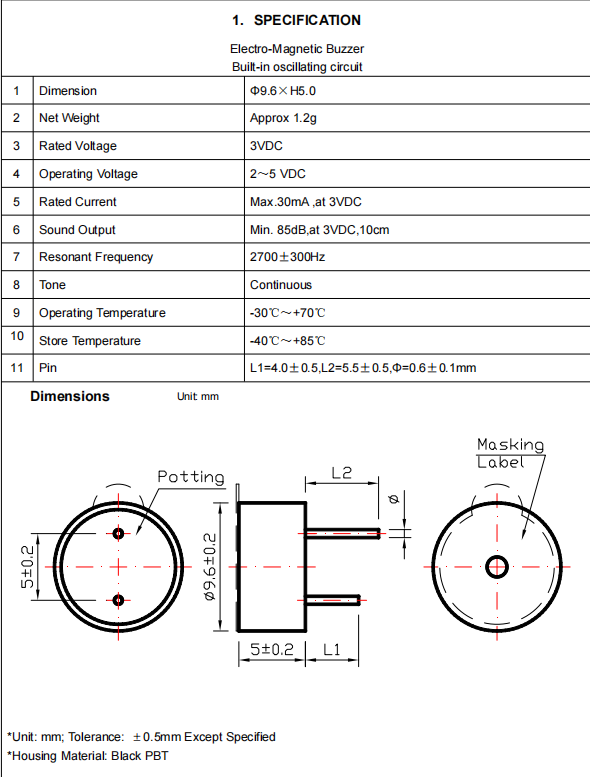

Beyond the core electrical specifications, this component exhibits exceptional environmental reliability. It maintains stable acoustic pressure and frequency output even when exposed to severe temperature fluctuations and high-humidity industrial environments. The table below outlines the primary operational metrics for system integration.
Parameter | Specification Value |
|---|---|
Operating Voltage Range | 1.5V – 12V DC |
Current Consumption | 20 – 50mA |
Sound Pressure Level | 85 – 95dB (measured at 10cm) |
Operating Frequency | 2kHz – 4kHz (±2–3% tolerance) |
Mounting Compatibility | SMD / Through-hole (DIP) |
Alarm & Warning Systems: Integrated extensively into fire detection units, intrusion monitors, and safety panels. They emit a piercing, continuous sound signal that instantly alerts occupants of hazardous conditions. The stable frequency ensures the warning tone remains distinct and urgent in indoor and semi-industrial spaces.
Home Appliances: Embedded within microwave ovens, washing machines, air conditioners, and induction cookers to provide operation reminders. They generate a pleasant yet noticeable chime when a wash cycle concludes or an operational error is detected, significantly improving usability and daily user interaction.
Industrial Equipment: Deployed in heavy machinery control panels and automated manufacturing systems. Serving as an audible indicator for system status, fault alarms, and operational warnings, their rugged construction withstands mechanical vibrations and harsh factory conditions for continuous operation.
Consumer Electronics: Utilized in compact devices like digital timers, communication telephones, electronic toys, and small gadgets. They deliver crisp audio cues for button presses and status notifications, offering a cost-effective acoustic solution with a very small footprint.
Security & Access Control Systems: Installed in door entry keypads and restricted access panels. These buzzers produce immediate, distinct confirmation tones upon successful keycard scans or warning sounds for unauthorized access attempts, enhancing overall facility communication and safety awareness.
To achieve optimal acoustic performance and structural longevity, please adhere to the following selection and integration guidelines:
Voltage & Current Matching: When specifying an electromagnetic buzzer, first verify the rated voltage (1.5V–12V) and current (20–50mA) to ensure exact compatibility with your primary driving circuit.
Acoustic Evaluation: Assess the required sound pressure level based on the deployment environment. A rating of 85–95dB is typically sufficient to cut through standard ambient noise.
Frequency Selection: Confirm the frequency stability (commonly tuned between 2–4kHz) to guarantee a consistent tone that aligns with your desired acoustic profile.
Physical Integration: Ensure the physical dimensions and mounting configuration (SMD or through-hole DIP) precisely match your PCB layout and automated assembly capabilities.
Compliance Verification: Review the operating temperature limits, durability ratings, and verify adherence to international compliance standards, including RoHS and REACH, to guarantee global market access and long-term component safety.
To safeguard the structural integrity and acoustic precision of every unit during global transit, our components are secured using industry-standard protective methods. Depending on the selected mounting type, orders are packaged in anti-static Tape & Reel formats for automated placement machines, or high-strength blister trays for bulk protection. These rigorous packaging protocols effectively prevent mechanical deformation, repel moisture ingress, and eliminate static discharge risks during long-distance transportation and extended warehouse storage. This meticulous attention to logistics ensures that every component arrives in pristine condition, ready for immediate assembly line deployment.
