Dedicated to global electroacoustic technology.
| Name: | |
|---|---|
| Operating Voltage: | |
| Resonant Frequency: | |
| Sound Output at 10cm: | |
| Rated Current: | |
| Tone: | |
| Weight: | |
| Quantity: | |
Rated Voltage: 5VDC, working voltage range 4~7VDC
Sound Output: Minimum 85dB at 5VDC, 10cm testing distance
Resonant Frequency: 2700±300Hz, continuous tone output
Wide Temperature Range: Operating & storage temperature from -40℃ to +85℃
Max Rated Current: 30mA @5VDC, low power consumption
Housing Material: High-performance gray LCP, excellent heat & impact resistance
Installation: Pin through-hole mounting, easy for PCB soldering
Stable acoustic performance, consistent sound for long-time alerting
RoHS compliant, suitable for global export electronic projects
Item | Parameter |
|---|---|
Model No. | BMC9650-0527 |

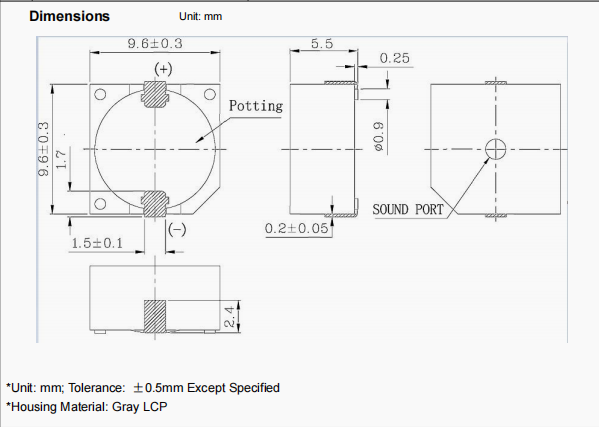

Dimension | 9.6×9.6×5.0 mm |
Net Weight | Approx. 1.5g |
Rated Voltage | 5VDC |
Operating Voltage | 4~7VDC |
Max Rated Current | 30mA @5VDC |
Sound Output | Min.85dB @5VDC,10cm |
Resonant Frequency | 2700±300Hz |
Tone Type | Continuous |
Operating Temperature | -40℃ ~ +85℃ |
Storage Temperature | -40℃ ~ +85℃ |
Housing Material | Gray LCP |
Mount Type | Pin / Through-hole |
This passive magnetic buzzer is ideal for audible warning & reminder signals for:
1. Smoke & fire alarm detectors
2. Security alarm systems
3. Smart home devices
4. Industrial control panels
5. Medical instruments
6. Electronic meters & sensors
7. Household appliance alert modules
Sample available for performance verification
Support bulk production with stable lead time
Customization on frequency, pin layout & packing is acceptable
Datasheet, test report and RoHS certificate can be provided upon request
Q: What is a passive magnetic buzzer? A: Passive buzzers cannot sound directly by DC power. They need square wave signal from MCU or drive circuit to make sound.
Q: What is the difference between passive buzzer and active buzzer? A: Active buzzers have built-in drive circuit and sound once connected to rated DC voltage. Passive types need external drive and support adjustable sound frequency.
Q: Can this buzzer work in low-temperature outdoor equipment? A: Yes, its operating temperature covers -40℃ to 85℃, which fits outdoor and industrial low & high temp environments.
