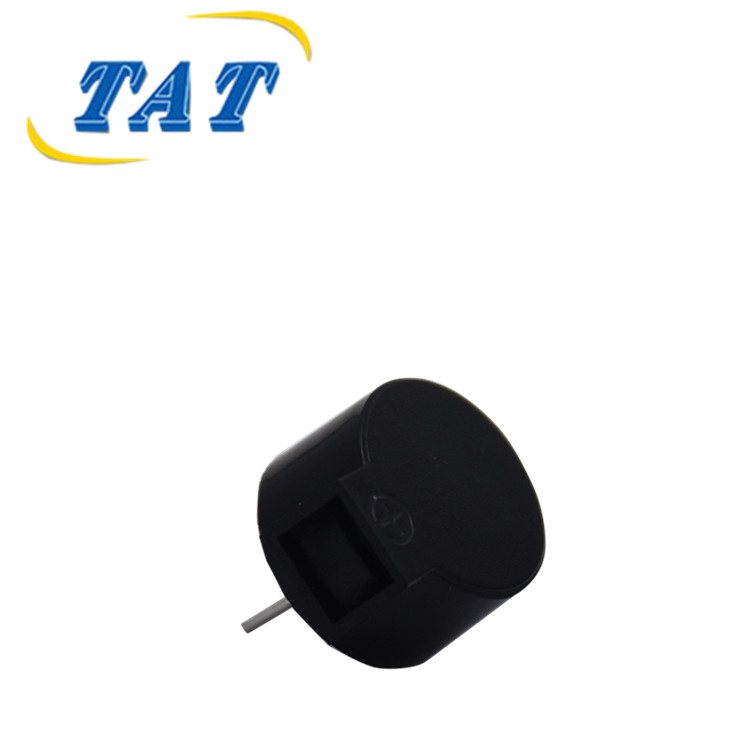

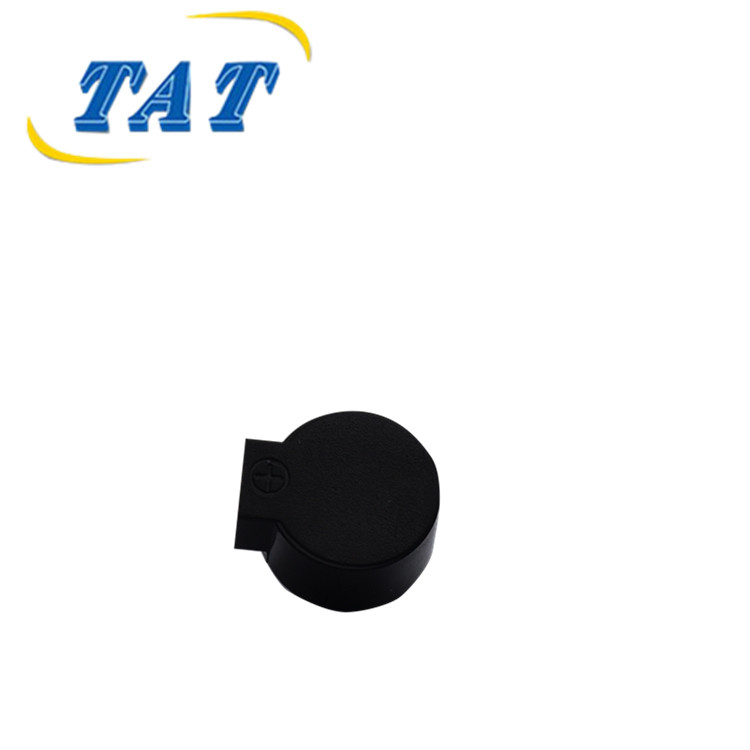

BM1275E-0327-16
TAT
BM1275E-0327-16
| Style: | |
|---|---|
| Rated Voltage: | |
| Operating Voltage: | |
| Rated Current: | |
| Sound Output at 10cm: | |
| Coil Resistance: | |
| Resonant Frequency: | |
| Availability: | |
| Quantity: | |
90 dB Loud for 12 mm Size — 5–10 dB louder than typical 12 mm buzzers (80–85 dB); clearly audible inside enclosures and across a room.
Low-Voltage 2–5 Vo-p Drive — direct drive from a 3 V MCU GPIO or coin cell; no boost circuit or piezo oscillator needed.
16 Ω Low-Impedance Coil — 70 mA peak at 3 Vo-p; a single NPN transistor or GPIO outputs enough current for full volume.
2731 Hz Warm Magnetic Tone — softer and more natural than a high-pitched piezo beep; comfortable for repeated appliance and instrument feedback.
Potted Bottom Seal — epoxy potting protects the coil against dust, humidity and vibration.
Compact Φ12.0 × 7.0 mm, 1.5 g — fits inside remote controls, meters, small appliances and toys.

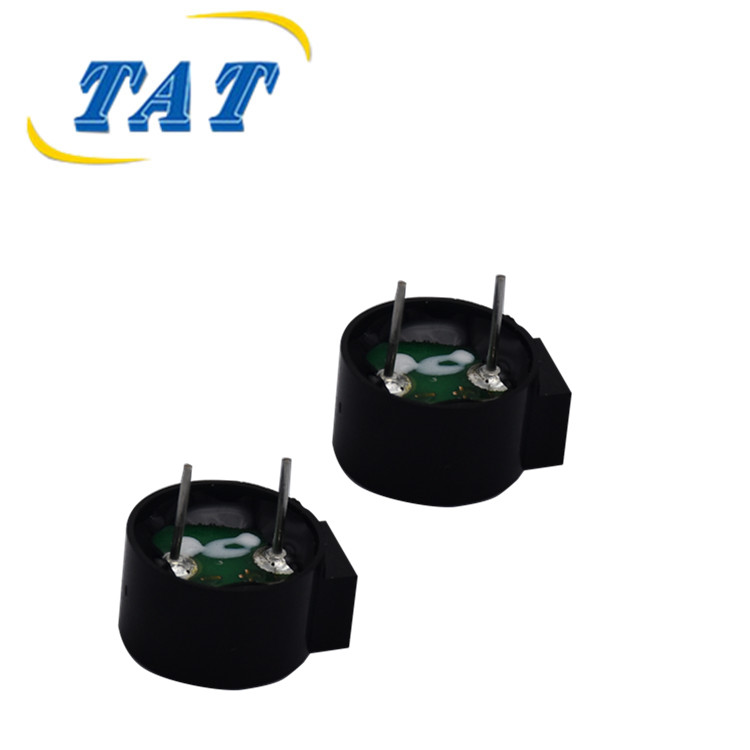

Through-Hole Pins, 6.5 mm Spacing — two Φ0.6 mm pins, 5.0 mm long, on a standard small footprint; wave-solder friendly.
Black PPO Housing, -20 °C ~ +70 °C; RoHS compliant.

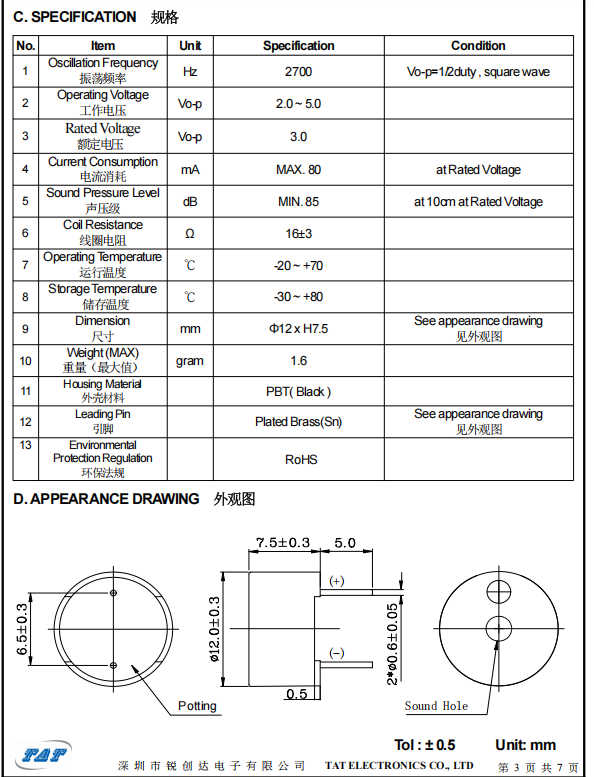

Parameter | Specification |
|---|---|
Brand | TAT |
Model | BM1275E-0327-16 |
Buzzer Type | Passive Electromagnetic (Magnetic) Buzzer |
Rated Voltage | 3 Vo-p |
Operating Voltage | 2 – 5 Vo-p |
Rated Current | ≤ 70 mA at 2.731 kHz, 50% duty square wave, 3 Vo-p |
Sound Output (SPL) | ≥ 90 dB at 10 cm, at 2.731 kHz 50% duty, 3 Vo-p |
Coil Resistance | 16.0 ± 3.0 Ω |
Resonant Frequency | 2731 Hz |
Body Diameter | Φ12.0 ± 0.2 mm |
Body Height | 7.0 ± 0.3 mm |
Top | Sound port outlet |
Bottom | Potted seal |
Mounting | Through-hole pins; L1 = 5.0 ± 0.5 mm; Φ0.6 ± 0.1 mm; spacing 6.5 ± 0.2 mm |
Housing Material | Black PPO |
Net Weight | Approx. 1.5 g |
Operating Temperature | -20 °C ~ +70 °C |
Storage Temperature | -30 °C ~ +80 °C |
Tolerance | ±0.5 mm unless specified |
Certification | RoHS Compliant |
Origin | China (Guangdong) |
Home Appliances — microwave ovens, ovens, rice cookers, washing machines, dishwasher finish signals
Instruments & Meters — multimeters, temperature controllers, timers, scales
Security & Doorbells — access panels, smoke detectors, wired doorbells, alarm keypads
Automotive — dashboard reminders, OBD dongles, aftermarket alarms
Toys & Education — electronic keyboards, quiz buzzers, learning machines
Medical Portable — glucose meters, blood pressure monitors
Remotes & Smart Home — Bluetooth remotes, smart locks, touch switches
Loud Where It Counts — 90 dB in a 12 mm package is rare; small devices get a clearly audible alert without a bigger buzzer.
Runs on 3 V Straight from GPIO — 2–5 Vo-p range and 16 Ω coil simplify drive design; no external boost.
Warm, Non-Harsh Tone — 2731 Hz magnetic output is pleasant for user-facing appliances and meters.
Sealed for Reliability — potted bottom resists dust and moisture in kitchens and workshops.
Full OEM/ODM Flexibility — alternate frequencies, pin lengths, wire-lead/connector versions available.
Q1: Active or passive? Passive magnetic. Feed a square wave at 2731 Hz (≈50% duty) from an MCU PWM or oscillator; DC voltage alone makes no sound.
Q2: How do I drive it from a 3 V MCU? Connect one pin to a GPIO PWM output (2.7 kHz square wave) and the other to GND. The 16 Ω coil draws ~70 mA peak; for cleaner/louder drive use a small NPN/MOSFET stage.
Q3: How loud is 90 dB? At 10 cm at 3 Vo-p, 90 dB is comparable to a busy street or loud alarm clock — clearly audible across a room, even inside an enclosure.
Q4: Can I run it from a coin cell? Yes — the 2–5 Vo-p range covers 3 V coin-cell and small-battery operation.
Q5: Magnetic vs piezo — which to choose? Magnetic = warm 2.7 kHz tone, low voltage, 16 Ω coil; piezo = sharp 4 kHz tone, capacitive, lower current. Choose magnetic for softer feedback, piezo for piercing alarms.
Q6: Can I get wire leads instead of pins? Yes. Standard is through-hole pins; wire-lead and JST connector variants are available on request.
