| Name: | |
|---|---|
| Storage Temperature: | |
| Rated Voltage: | |
| Operating Voltage: | |
| Rated Current: | |
| Sound Output at 10 cm: | |
| Coil Resistance: | |
| Quantity: | |
Passive electromagnetic buzzer, driven by square wave signal (1/2 duty cycle)
Oscillation Frequency: 2700Hz
Rated Voltage: 3.0 Vo-p; Operating Voltage: 2.0~4.0 Vo-p
Current Consumption: Max.70mA at rated voltage
Sound Pressure Level: Min.85dB at 10cm
Coil Resistance: 16 ±2 Ω
Side sound outlet design, ideal for side panel sound transmission
Housing: Black PPS, outstanding heat resistance
Lead pin: Gold plated brass(Sn), anti-oxidation & stable soldering
Operating Temperature: -30℃ ~ +105℃; Storage Temperature: -40℃ ~ +105℃
RoHS compliant for global electronic projects
Item | Specification | Test Condition |
|---|---|---|
Oscillation Frequency | 2700 Hz | Vo-p, 1/2 duty square wave |
Operating Voltage | 2.0 ~ 4.0 Vo-p | - |
Rated Voltage | 3.0 Vo-p | - |
Current Consumption | Max.70 mA | At Rated Voltage |
Sound Pressure Level | Min.85 dB @10cm | At Rated Voltage, 10cm |
Coil Resistance | 16 ±2 Ω | - |
Operating Temperature | -30℃ ~ +105℃ | - |
Storage Temperature | -40℃ ~ +105℃ | - |

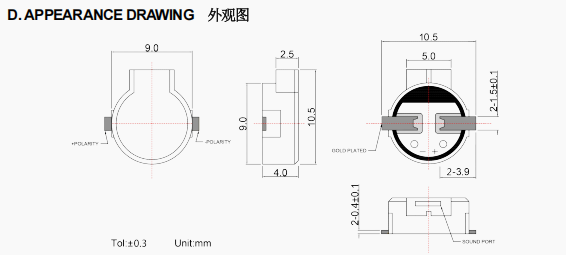

Dimension | Φ9.0 × H4.0 mm | - |
Max Weight | 0.6 gram | - |
Housing Material | Black PPS | - |
Leading Pin | Gold Plated Brass(Sn) | - |
Environmental Regulation | RoHS | - |
This side sound electromagnetic buzzer is widely used as audio indicator:
1. Handheld portable electronic devices
2. Household small appliances
3. Industrial instruments and meters
4. Medical portable modules
5. Smart control PCBA boards
6. Mini vehicle reminder equipment
Samples available for acoustic and high-temperature reliability testing
Custom options: pin length, resonant frequency, laser marking
Datasheet, RoHS certificate and inspection report can be provided
Q: Is this electromagnetic buzzer active or passive? A: It is passive magnetic buzzer. Square wave signal is required; it cannot be directly powered by DC.
Q: What is the advantage of side sound structure? A: The sound hole is on the side, suitable for product structures where the top surface is blocked and only side space is reserved for sound.
Q: What is the advantage of PPS housing? A: PPS has excellent thermal stability, can withstand higher temperature and is suitable for harsh temperature scenarios.
Q: Why use gold plated pins? A: Gold plating greatly improves oxidation resistance, guarantees stable solderability for long-term storage and assembly.
