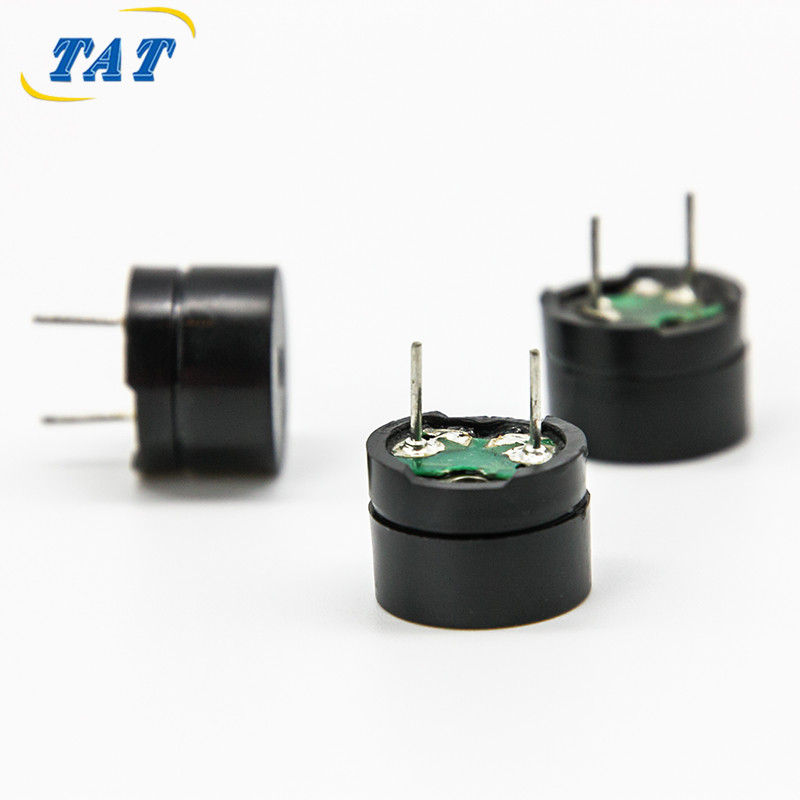

TAT BM1285-0320-16 is a standard-size passive electromagnetic buzzer in the industry-common Φ12*8.5mm (12080) package. Driven by a 2–5Vo-p square wave at 2048Hz, it delivers ≥85 dB of warm, clear tone directly from a 3V MCU or small battery — no boost circuit. A 16Ω coil, potted seal and through-hole pins make it a reliable, drop-in alerting part for door buzzers, home appliances, instruments and security panels.
  • BM1285-0320-16

  • TAT

  • BM1285-0320-16

Style:
Rated Voltage:
Operating Voltage:
Rated Current:
Sound Output at 10cm:
Coil Resistance:
Resonant Frequency:
Availability:
Quantity:

Key Features

  • Industry-Standard 12 × 8.5 mm Footprint — the common "12080" magnetic buzzer size drops into existing tooling and replaces most generic 12 mm buzzers.

  • 2–5 Vo-p Low-Voltage Drive — direct drive from a 3 V MCU GPIO or coin cell; keywords-aligned for 3 V and 5 V buzzer applications.

  • 16 Ω Low-Impedance Coil — 70 mA peak at 3 Vo-p; a single NPN transistor or GPIO outputs enough current for full 85 dB.

  • 2048 Hz Warm Magnetic Tone — softer than a high-pitched piezo beep; comfortable for door, appliance and instrument feedback.

  • ≥85 dB SPL at 10 cm (3 Vo-p) — clearly audible indoor alert for doors, panels and handheld devices.

  • Potted Seal — side/bottom potting protects the coil against dust, humidity and vibration.

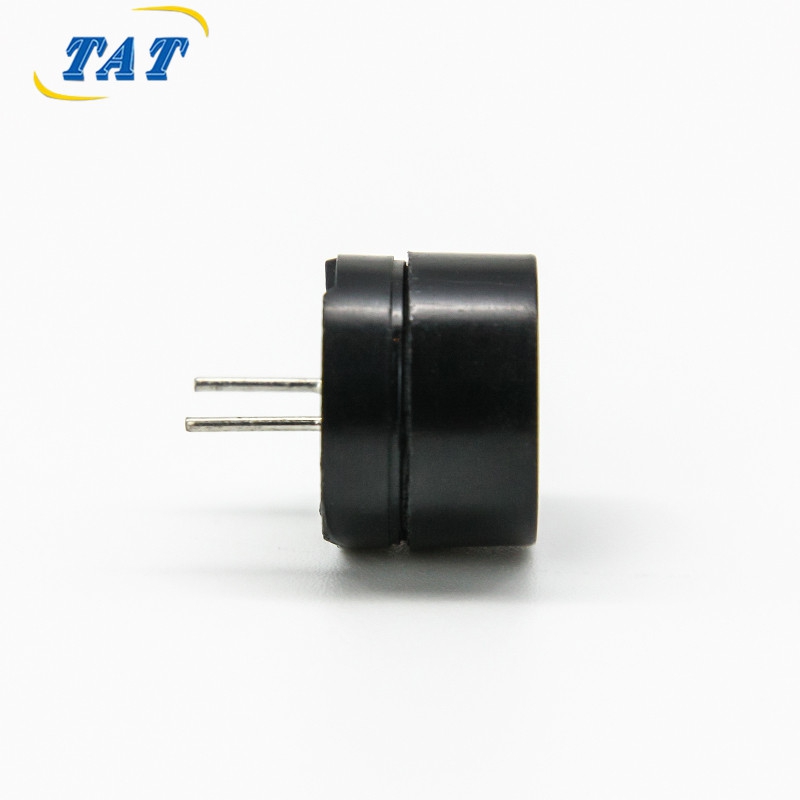

  • Through-Hole Pins, 6.5 mm Spacing — two Φ0.6 mm pins, 5.0 mm long, on a standard small PCB footprint.

  • Black PBT Housing, -20 °C ~ +70 °C; RoHS compliant.

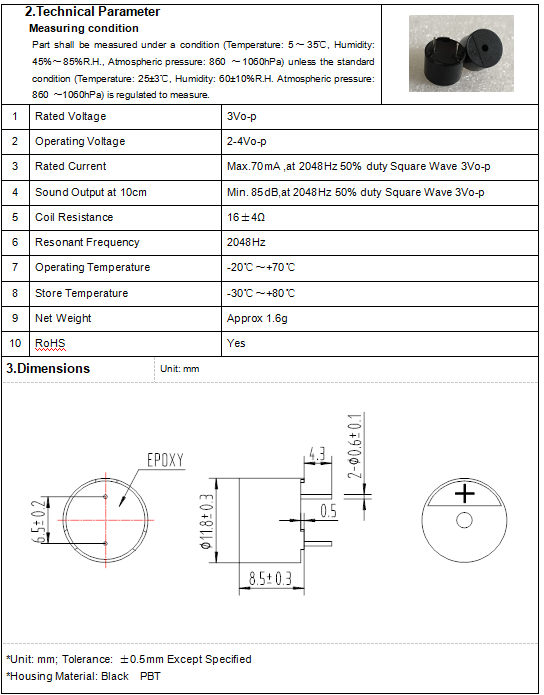

Technical Specifications

Parameter

Specification

Brand

TAT

Model

BM1285-0320-16

Buzzer Type

Passive Electromagnetic (Magnetic) Buzzer

Rated Voltage

3 Vo-p

Operating Voltage

2 – 5 Vo-p

Rated Current

≤ 70 mA at 2.048 kHz, 50% duty square wave, 3 Vo-p

Sound Output (SPL)

≥ 85 dB at 10 cm, at 2.048 kHz 50% duty, 3 Vo-p

Coil Resistance

16 ± 3 Ω

Resonant Frequency

2048 Hz

Body Diameter

Φ12.0 ± 0.5 mm

Body Height

8.5 ± 0.5 mm

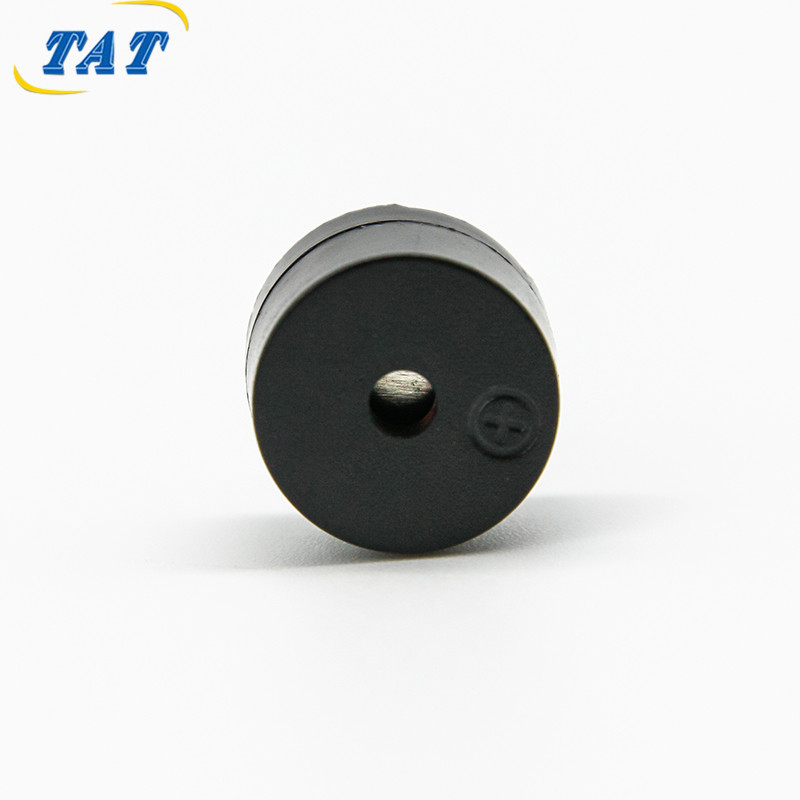

Top

Center emission hole, (+) polarity marked

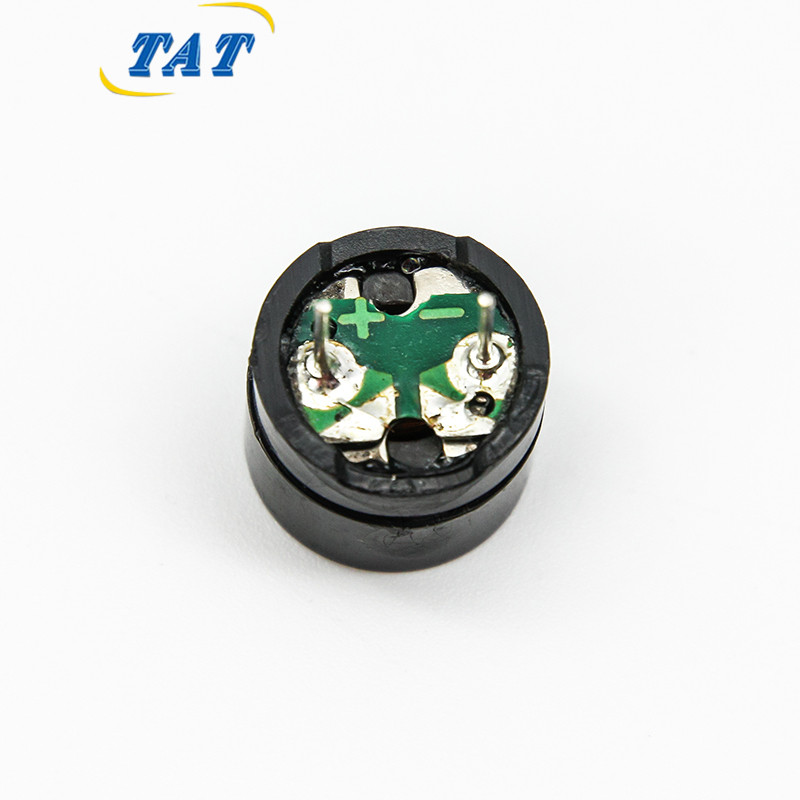

Side/Bottom

Potted seal

Mounting

Through-hole pins; L1 = 5.0 ± 0.5 mm; Φ0.6 ± 0.1 mm; spacing 6.5 ± 0.5 mm

Housing Material

Black PBT

Net Weight

Approx. 1.5 g

Operating Temperature

-20 °C ~ +70 °C

Storage Temperature

-30 °C ~ +80 °C

Tolerance

±0.5 mm unless specified

Certification

RoHS Compliant

Origin

China


Typical Applications

  • Door & Access — magnetic door buzzers, wired doorbells, access-control entry tones

  • Home Appliances — microwave ovens, ovens, rice cookers, washing machine finish signals

  • Instruments & Meters — multimeters, temperature controllers, timers, scales

  • Security & Alarms — door panels, smoke detectors, alarm keypads

  • Automotive — dashboard reminders, OBD dongles, aftermarket buzzers

  • Toys & Education — electronic keyboards, quiz buzzers, learning machines

  • Medical Portable — glucose meters, blood pressure monitors

Why Choose TAT BM1285-0320-16?

  1. Drop-In 12080 Replacement — standard 12 × 8.5 mm footprint matches generic designs; no PCB re-layout needed.

  2. 3 V/5V Friendly — 2–5 Vo-p range suits battery and logic-level products; 16 Ω coil is easy to drive.

  3. Pleasant 2 kHz Tone — magnetic output is softer than piezo, ideal for door and appliance user feedback.

  4. Sealed and Reliable — potted construction resists dust and moisture for long service.

  5. Full OEM/ODM Flexibility — alternate frequencies, pin lengths, wire-lead/connector versions available.

Frequently Asked Questions

Q1: Active or passive? Passive magnetic. Feed a square wave at 2048 Hz (≈50% duty) from an MCU PWM or oscillator; DC voltage alone makes no sound.

Q2: How do I drive it from a 3 V/5 V MCU? Connect one pin to a GPIO PWM output (2 kHz square wave) and the other to GND. The 16 Ω coil draws ~70 mA peak; use a small NPN/MOSFET stage for cleaner drive.

Q3: How loud is 85 dB? At 10 cm at 3 Vo-p, 85 dB is a clear indoor alert — comparable to an alarm clock or clear notice, suited to doors, panels and handheld devices.

Q4: Is it the standard 12080 size? Yes — Φ12 × 8.5 mm with 6.5 mm pin spacing matches the common 12080 magnetic buzzer footprint.

Q5: Magnetic vs piezo? Magnetic = warm 2 kHz tone, low voltage, 16 Ω coil; piezo = sharp 4 kHz tone, capacitive, lower current. Choose magnetic for softer door/appliance feedback.

Q6: Can I get wire leads instead of pins? Yes. Standard is through-hole pins; wire-lead and JST connector variants are available on request.
