Dedicated to global electroacoustic technology.
| Style: | |
|---|---|
| Rated Voltage: | |
| Operating Voltage: | |
| Rated Current: | |
| Sound Output at 10cm: | |
| Coil Resistance: | |
| Resonant Frequency: | |
| Quantity: | |
Compact Small Size: Φ12.0 × H6.2mm ultra-small body, saves PCB space for miniaturized equipment.
Low Voltage Operation: Rated 3.0Vp-p, operating voltage range 2~5Vp-p, suitable for battery-powered devices.
Clear Mid-frequency Tone: 2731Hz resonant frequency, pleasant and noticeable prompt sound.
High Sound Pressure: Min.85dB sound output, enough loudness for small equipment alarm.
Through-hole Pin Mount: Standard pin design for easy soldering on PCB.
Wide Temperature Range: Stable performance from -20℃ ~ +70℃.
RoHS Compliance: Meets international environmental requirements for export electronics.
Item | Specification | Test Condition |
|---|---|---|
Model | TAT BM1265-0327-16 Passive Electromagnetic Buzzer | - |

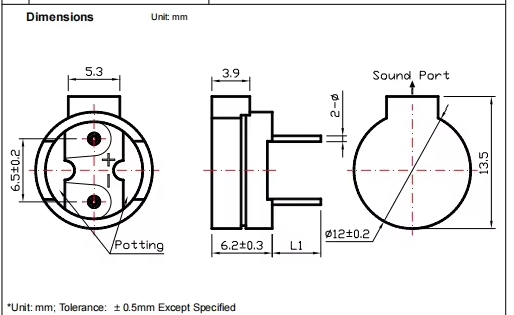

Dimension | Φ12.0 × H6.2 mm | - |
Net Weight | Approx.1.5g | - |
Rated Voltage | 3.0 Vp-p | Square wave signal |
Operating Voltage | 2 ~ 5 Vp-p | Square wave signal |
Rated Current | Max.70mA | At 2731Hz, 50% duty Square Wave,3.0Vp-p |
Sound Output | Min.85dB | At 2731Hz, 50% duty Square Wave,3.0Vp-p |
Coil Resistance | 16 ±6 Ω | - |
Resonant Frequency | 2731 Hz | - |
Operating Temperature | -20℃ ~ +70℃ | - |
Storage Temperature | -30℃ ~ +80℃ | - |
Pin Spec | L1=5.0±0.5mm, Φ=0.6±0.1mm | - |
Compliance | RoHS | Yes |
Unless otherwise specified, parts are measured under ambient condition: Temperature: 5 ~ 35℃, Humidity: 45% ~ 85%R.H., Atmospheric pressure: 860 ~ 1060hPa. Standard measuring condition: Temperature: 25±3℃, Humidity: 60±10%R.H., Atmospheric pressure: 860 ~1060hPa.
This electromagnetic buzzer works on electromagnetic induction principle. When square wave current flows into internal coil, alternating magnetic field attracts and releases the metal diaphragm continuously to vibrate and emit sound. This is a passive electromagnetic buzzer, without built-in oscillation circuit. External MCU square wave driving signal is required. Its mid-frequency tone performs better than piezo buzzers for small device prompt alerts.
This Φ12*6.2mm passive magnetic buzzer widely used for audio prompt and warning:
Smart home sensors
Portable handheld electronics
Household appliance reminder
Mini medical instruments
IoT wireless modules
Small industrial control panels
We are professional manufacturer of electro-acoustic components. Custom service available for resonant frequency, sound level and pin specifications. Samples can be offered for prototype testing before mass order. RoHS certificate is available upon request. Please contact our sales engineer for quotation and MOQ.
Q: Is this buzzer active or passive? A: It is passive electromagnetic buzzer, external MCU square wave signal required, no built-in oscillator.
Q: What is the operating voltage? A: Rated 3.0Vp-p, working range 2~5Vp-p square wave.
Q: What is resonant frequency? A: 2731Hz, clear mid-frequency beep.
Q: What is coil resistance? A: 16±6Ω.
Q: Can I get samples to test? A: Yes, samples available for customer verification.
Q: Does it meet RoHS standard? A: Yes, this buzzer complies with RoHS.
