BMC1265-0527
TAT
BMC1265-0527
| Style: | |
|---|---|
| Rated Voltage: | |
| Operating Voltage: | |
| Rated Current: | |
| Sound Output at 10cm: | |
| Resonant Frequency: | |
| Tone: | |
| Availability: | |
| Quantity: | |
Built-In Driver — DC Power, Instant Sound — connect DC and it beeps; no PWM code, no driver transistor, no external frequency source.
Wide 1–12 V DC Input — one part covers coin cells, 3.3 V/5 V logic, 9 V batteries and 12 V equipment; reduces SKU count.
85 dB Clear Output — clearly audible indoor alert at 10 cm.
Slim Φ12*6.5 mm DIP — thinner than standard 7.5 mm buzzers; fits shallow enclosures.
2300 Hz Warm Magnetic Tone — soft, non-harsh reminder sound.
DIP Pins, 7.6 mm Pitch — two Φ0.6 mm pins fit standard PCB pads; wave-solder and hand-solder friendly.
Potted Top — dust/moisture resistant; RoHS compliant to export standards.

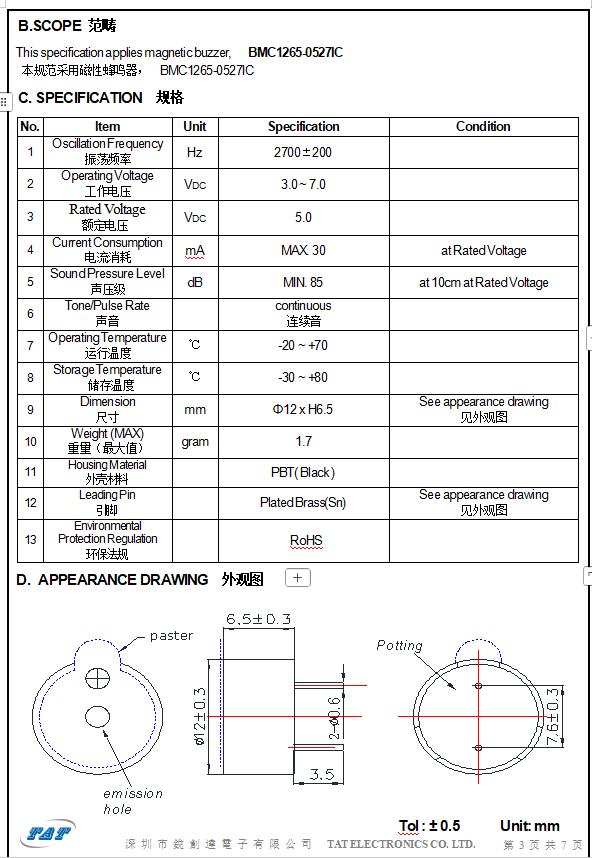

Parameter | Specification |
|---|---|
Brand | TAT |
Model | BMC1265-0527 |
Buzzer Type | Active Electromagnetic Buzzer (internal driving circuit) |
Operating Voltage | 1 – 12 VDC |
Sound Output (SPL) | 85 dB at 10 cm |
Resonant Frequency | 2700±300Hz |
Tone | Continuous |
Body Diameter | Φ12 mm |
Body Height | 6.5 mm |

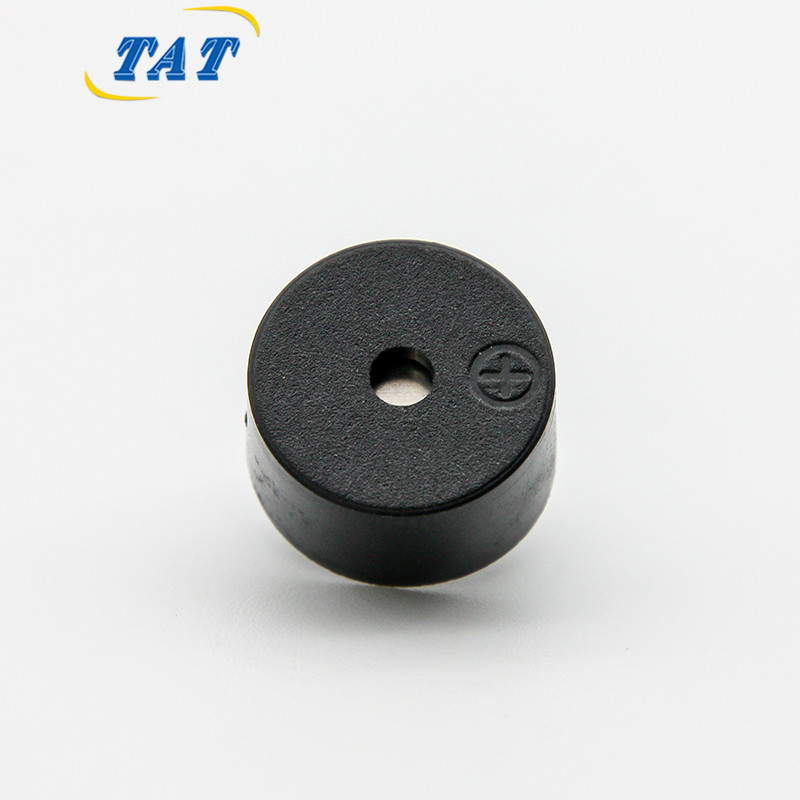

Top | Potted seal, center emission hole |

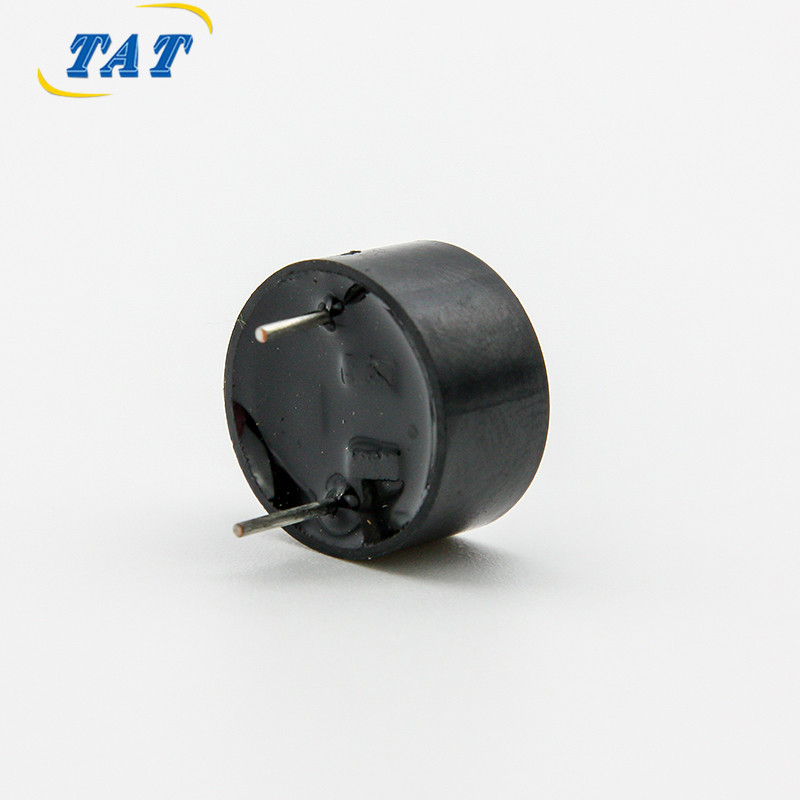

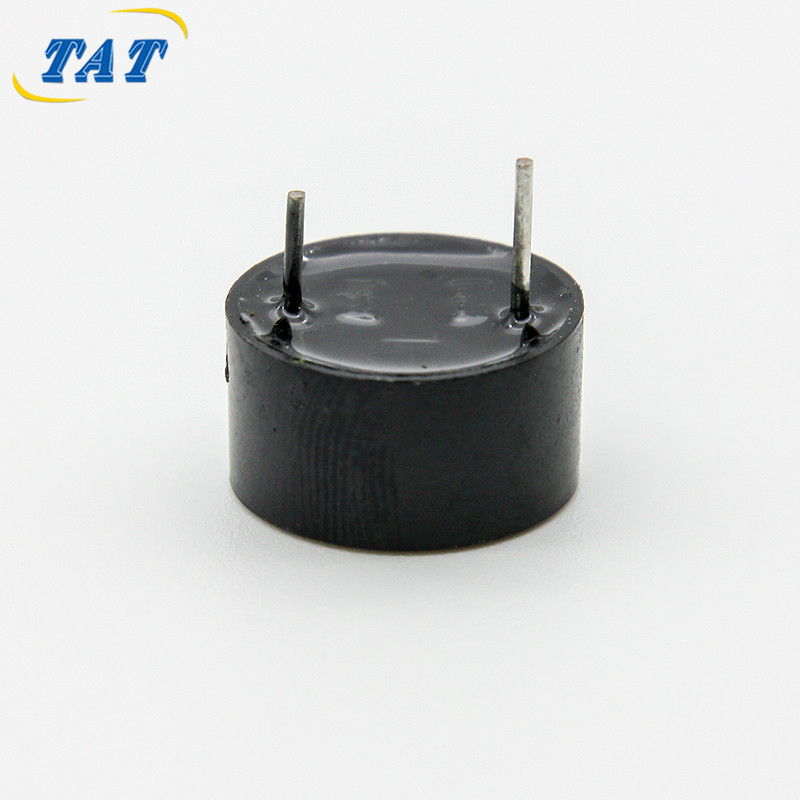

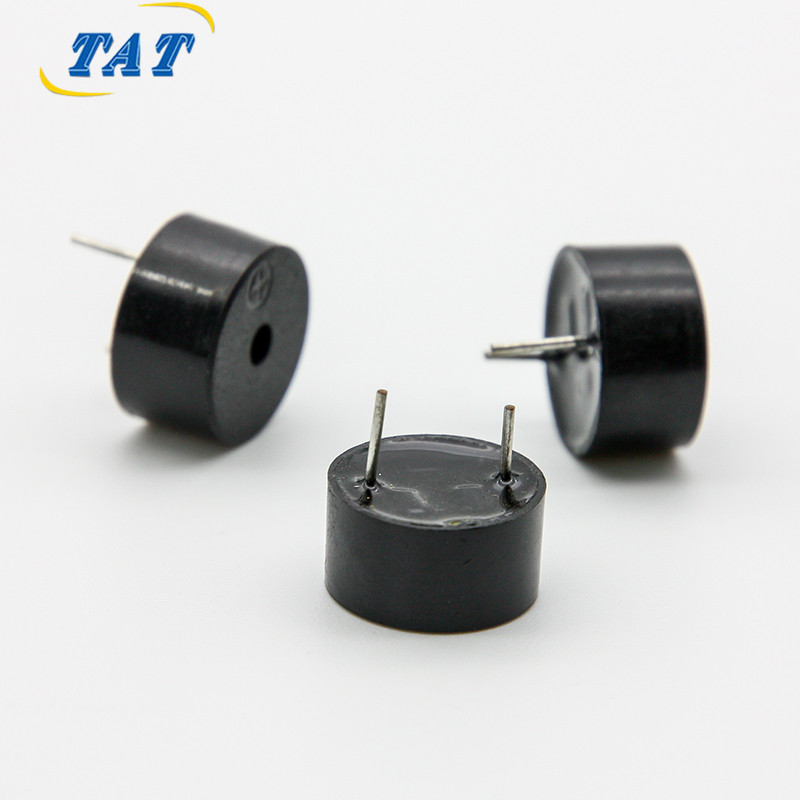

Mounting | DIP through-hole pins; 2 * Φ0.6 mm; spacing 7.6 mm; pin extension 5 mm |
Housing | Potted black housing |
Net Weight | Approx. 1.0 g class |
Certification | RoHS, export standards |
Origin | China |
Alarms & Doorbells — door access, magnetic contacts, smoke detectors, panic buttons
Instruments & Timers — temperature controllers, timers, scales, multimeters
Industrial Panels — small status and warning beepers
Home Appliances — microwave ovens, rice cookers, washer beeps
Toys & Education — quiz buzzers, alarm kits, project boards
Smart Home — smart locks, touch switches, door alarms
Simplest Alert Solution — two wires to DC = sound; no firmware or driver circuit.
1–12 V Wide Range — one SKU spans coin cell, 5 V logic and 12 V equipment.
Slim 6.5 mm Body — fits shallow panels where 7.5 mm parts won't.
DIP Standard Footprint — easy assembly and cross-replacement.
OEM Flexibility — intermittent tone, longer pins, wire-lead versions available.
Q1: Active or passive? Active. It has an internal driving circuit. Apply DC voltage (1–12 V) and it sounds — no PWM needed.
Q2: How do I connect it? Connect the two pins to a DC supply (1–12 V, plus/minus per marking). Use a switch, relay or transistor to turn it on/off.
Q3: Can I run it on 5 V or 12 V? Yes. Operating range is 1–12 V DC, so coin cells, 3.3 V, 5 V and 12 V all work.
Q4: How loud is 85 dB? 85 dB measured 10 cm away is a clear indoor alert — typical for alarms, timers and appliances.
Q5: Continuous or intermittent? Standard is continuous tone. Intermittent (pulse) versions are available on request.
