BPC2310 23mm 12V Active Piezo Buzzer | Continuous Tone 90dB Internal Drive Piezoelectric Buzzer

The BPC2310 active piezoelectric buzzer is a ready-to-use acoustic alarm component with built-in driving circuit. Different from passive piezo buzzers, this model works directly with DC power without extra drive circuit. With resonant frequency at 3500±500Hz and stable continuous tone output, this pin-type piezo buzzer provides loud and clear warning sound. The PBT plastic shell delivers outstanding heat resistance, supporting wide operating temperature from -20℃ to +70℃, which makes it reliable for indoor and semi-outdoor electronic warning products. It is a standard 23*10mm buzzer, through-hole pin mounting for easy soldering on PCB boards. Strict quality control ensures consistent sound volume and long service life for mass production projects.

Model:
BPC2310
Brand:
TAT
Code:
BPC2310

Rated Voltage:	12 VDC
Operating Voltage:	6 ~ 15 VDC
Rated Current:	Max.15mA, at 12VDC
Sound Output at 10cm:	Min.90dB @12VDC
Resonant Frequency:	3500±500 Hz
Operating Temperature:	-20 - +70℃
Storage Temperature:	-30 - +80℃
Availability:

Quantity:



Inquire Add to Basket

Product Description

Key Features

1. Built-in drive circuit, active type, direct DC power supply

2. Rated 12VDC, operating voltage range: 6~15VDC

3. Min 90dB loud sound at 10cm test distance, continuous tone

4. Black PBT housing, high temperature & impact resistant

5. Wide temperature range: -20℃ ~ +70℃ operating, -30℃ ~ +80℃ storage

6. Through-hole pin mounting, easy PCB assembly

7. RoHS compliant, suitable for EU export

8. Stable frequency 3500±500Hz, consistent acoustic performance

Technical Specifications

Item	Parameter
Model	BPC2310
Rated Voltage	12 VDC
Operating Voltage	6 ~ 15 VDC
Rated Current	Max.15mA @12VDC
Sound Output (10cm)	Min.90dB @12VDC
Resonant Frequency	3500 ± 500 Hz
Sound Tone	Continuous Tone
Operating Temperature	-20 ~ +70 ℃
Storage Temperature	-30 ~ +80 ℃
Housing Material	Black PBT

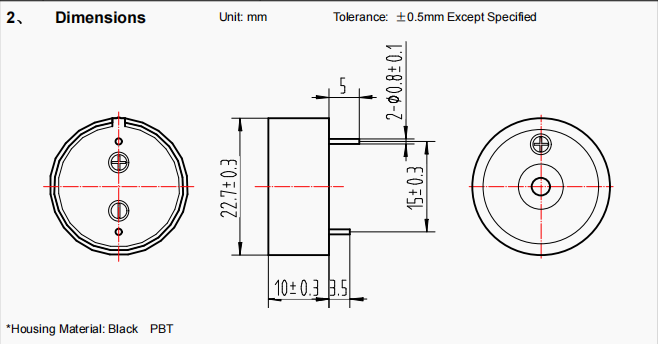

Dimension	Φ23mm * 10mm
Mounting Type	Pin / Through-hole
Certification	RoHS
Weight	Approx. 3g

Applications

Security alarm & burglar warning systems
Household appliances: washing machine, kitchen appliances reminder
Industrial control equipment, instrument prompt alarm
Smart IoT devices, access control systems
Medical equipment, emergency warning modules

FAQ

Q1: Is this active or passive buzzer? A: This is an active piezo buzzer with internal driving circuit. It can sound directly once connected to DC 6-15V power supply, no signal generator required.

Q2: Can we change the tone to intermittent beep? A: Standard version is continuous tone. Custom intermittent tone buzzer is available for bulk orders.

Q3: What does 90dB mean? A: The sound level is tested at 10 centimeters distance under rated 12VDC.

Q4: Is it suitable for European market? A: Yes, it meets RoHS standard for EU electronics.

Q5: Can you provide free samples for testing? A: Yes, samples are available for your performance verification. Please send inquiry for sample cost and freight.
