BM9032ES
| Availability: | |
|---|---|
| Quantity: | |
The BM9032ES SMD Electro-Magnetic Buzzer is a precision-engineered, surface-mount acoustic component specifically developed to generate distinct, penetrating sound signals on densely populated PCBA boards. Operating through a meticulously wound electromagnetic coil and a highly responsive vibrating metallic diaphragm, this component translates electrical currents into a concentrated magnetic field, driving mechanical vibration to produce crisp, audible alerts. Designed for modern electronic assembly, the BM9032ES features a heat-resistant polymer housing that perfectly withstands the thermal stress of lead-free reflow soldering processes, ensuring zero structural degradation during automated manufacturing.
Engineers and procurement teams recognize these buzzers for their exceptionally stable acoustic performance, minimal power draw, and uncompromising clarity in sound output. Offering distinct advantages such as rapid SMT assembly compatibility, consistent frequency response across varying environmental conditions, and field-proven durability, the BM9032ES is an essential building block for audio feedback. It is extensively deployed across consumer electronics, smart home appliances, critical security systems, and industrial control equipment to provide reliable alerts, operational reminders, and clear status indications.
The BM9032ES SMD electromagnetic buzzers deliver a consistently sharp and clear sound output, driven by an optimized coil and diaphragm architecture. Acoustic precision is a primary focus; the operating frequency is fixed by the 2731 Hz resonance of the coil and diaphragm, guaranteeing that audio signals remain uniform and recognizable in critical alert applications. Reliability is further validated through rigorous quality control: every production batch undergoes severe high-low temperature cycling, drop tests, and vibration evaluations. Consequently, every production lot is verified by 96-hour life, high and low temperature storage, humidity and vibration tests. This robust internal design actively minimizes sound distortion and ensures dependable operation even in harsh environments. Component Focus: SMD electromagnetic buzzer, stable frequency buzzer, reliable sound component, long lifespan buzzer.
Engineered specifically for strict energy budgets, these SMD electromagnetic buzzers operate efficiently at low rated voltages ranging from 4 to 7 Vo-p. The internal magnetic structure is optimized to require a current consumption of at most 90 mA at 5 Vo-p. This extremely low power draw makes the BM9032ES the definitive choice for battery-powered instruments, wearable technology, and portable electronic devices where extending battery life is a critical design parameter. Despite the minimal energy usage, the efficient electromagnetic conversion ensures a strong, penetrating sound output, allowing design engineers to reduce overall system power consumption without sacrificing alert audibility. Component Focus: low power buzzer, energy efficient buzzer, DC driven buzzer, battery device buzzer.
Featuring a highly miniaturized surface-mount footprint, the BM9032ES series is meticulously optimized for high-speed, automated pick-and-place assembly lines. Available in common industry-standard sizes such as 9mm, 12mm, and even smaller ultra-low profiles, these buzzers grant hardware designers immense flexibility when laying out space-constrained PCBs. To further streamline manufacturing, the products are supplied in standard Tape & Reel packaging, allowing seamless integration with all major SMT placement equipment. This lightweight, compact form factor not only supports high-density circuit integration but also significantly accelerates assembly throughput and reduces overall manufacturing costs. Component Focus: SMD buzzer small size, SMT buzzer component, compact acoustic device, PCB mount buzzer.
Understanding that different operating environments require distinct acoustic signatures, these buzzers support a resonant frequency fixed at 2731 Hz by the coil and diaphragm. They are capable of generating substantial sound pressure levels, reaching at least 90 dB at a distance of 10 cm, ensuring alerts are heard even in noisy surroundings. Backed by dedicated R&D support, we offer rapid prototyping and flexible OEM/ODM acoustic structure designs to meet specific frequency, sound pressure, or dimensional requirements. This adaptability makes them highly sought after for alarms, medical monitoring devices, smart home ecosystems, automotive electronics, and daily consumer products. Component Focus: customizable buzzer, high sound pressure buzzer, alarm buzzer component, electronic alert buzzer.
Datasheet: TAT BM9032ES-0527-32 Datasheet (PDF, 6 pages, 513 KB)
The document contains the full technical parameters, the dimensional drawing, the measuring condition with the recommended driving circuit, the frequency response curve, the recommended reflow profile with soldering pattern, the reliability test conditions and the packing specification.
Values are measured under 5 - 35 °C, 45 - 85 % R.H., 860 - 1060 hPa, with the standard condition 25 ±3 °C, 60 ±10 % R.H. used where a tighter reference is needed. Sound pressure is read at 10 cm on the axis.
This model carries a built-in oscillating circuit, so it produces its tone without an external oscillator; the drive signal still has to reach the rated amplitude to hit the specified output level, and the recommended driving circuit in the approval drawing shows the transistor stage that does it.
The 90 mA maximum is a real budget item on a 5 V rail: size the switching transistor and the supply track for it, and remember that the current is drawn in bursts at the drive frequency rather than as a steady DC load.
Parameter | Test Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
Rated Voltage | 5.0 Vo-p, 50 % duty square wave | — | 5.0 | — | Vo-p |
Operating Voltage | — | 4 | — | 7 | Vo-p |
Rated Current | 2731 Hz, 50 % duty, 5 Vo-p | — | — | 90 | mA |
Sound Output | 2731 Hz, 50 % duty, 5 Vo-p, 10 cm | 90 | — | — | dB |
Coil Resistance | — | 29 | 32 | 35 | Ω |
Resonant Frequency | — | — | 2731 | — | Hz |
Net Weight | — | — | 0.5 | — | g |
After any of the tests below the part shall meet specification without any degradation in appearance and performance other than SPL, and SPL shall not deviate more than -10 dB from the initial value.
Test Item | Test Condition | Acceptance Criteria |
|---|---|---|
Ordinary Temperature Life | 96 h at 25 ±10 °C, rated voltage, resonant frequency, 1/2 duty square wave | SPL change ≤ 10 dB |
High Temperature Storage | +85 °C for 96 h, then 2 h at normal condition | No visible damage |
Low Temperature Storage | -40 °C for 96 h, then 2 h at normal condition | No visible damage |
Humidity | +40 ±3 °C, 90 - 95 % R.H. for 48 h, then 6 h at room temperature | No visible damage |
Temperature Shock | 60 °C / 1 h → 25 °C / 3 h → -20 °C / 1 h → 25 °C / 3 h, 10 cycles total | No visible damage |
Drop Test | Standard packaging dropped from 75 cm onto 5 cm hard board, 3 sides, 6 faces | No visible damage |
Vibration | 1000 cycles/min, amplitude 1.5 mm, 1 h on each of 3 axes | No visible damage |
Reflow Test | One pass at the recommended reflow condition | No abnormality; soldering meets requirement |
Two process limits matter more than the profile itself: too high a soldering temperature, and too steep a temperature gradient (rapid heating or cooling), are the two documented causes of electrical failure and mechanical damage on this part. Keep bending, expanding and pulling forces, and any shock against the body, to a minimum during automated mounting.
Process Step | Recommended Parameter |
|---|---|
Pre-heating | 170 - 190 °C |
Soak temperature | 180 ±10 °C |
Pre-heat time | 90 ±30 sec |
Ramp up / down rate | 4 °C/sec max. |
Peak temperature | 250 °C max. |
Time at peak | 10 sec max. |
Cooling | Cooling by air |

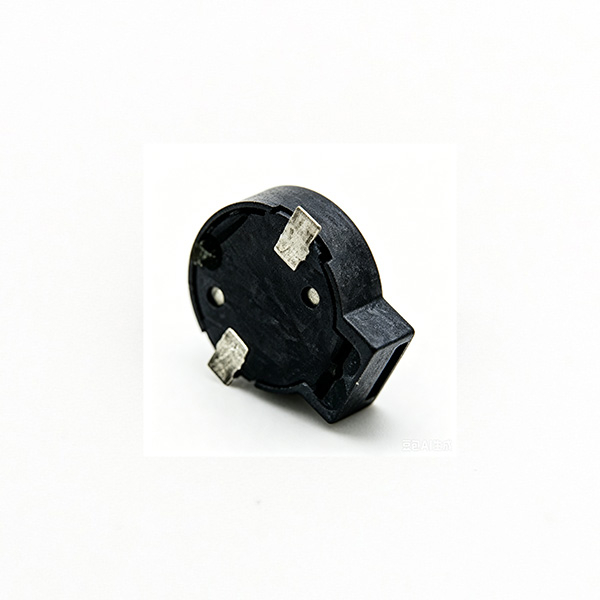

SMD termination — two soldering pads on the underside with tin-plated brass terminal plates. Body 9.0 × 9.0 × 3.2 mm, black LCP housing, tolerance ±0.3 mm except where specified.
Land pattern — use the soldering pattern in the approval drawing; it is drawn to the same tolerance system as the body, so copying it keeps the pad alignment inside the terminal area.
Acoustic path — the sound port faces the side of the housing. Keep that opening free of adhesive, label and conformal coating when the part is mounted against a panel.
Foreign material is the most common field failure cause. The part is not sealed against ingress, so keep magnetic powder, washing solvent, flux residue and corrosive gas out of the housing during your production process — contamination inside the cavity reduces sound output and can silence the part.
