Waterproof Omni‑directional Electret Condenser Microphone Unit 4.0*1.5mm With Dual Wire Leads

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
TAT-EM4015 is a 4015-size electret condenser microphone (ECM) in a tiny Φ4*1.5 mm package. Omnidirectional, powered from just 2V at 0.5mA, and with a high signal-to-noise ratio of >56 dB, it captures clean voice in TWS earbuds, Bluetooth headsets, voice assistants and wearables. A waterproof wire-lead version and -46/−44/−42 dB sensitivity options cover different mechanical and acoustic designs.
  • EM4015

  • TAT

  • EM4015

Impedance:
Weight:
Operation Voltage Range:
Size:
S/N Ratio:
Sensitivity:
Availability:
Quantity:

Key Features

  • 4015 Standard Size, Φ4*1.5 mm — the smallest ECM form factor for TWS earbuds, wearables and compact voice devices.

  • Omnidirectional Pickup — 360° sound capture; no aiming needed around the user's mouth.

  • 2 V / 0.5 mA Ultra-Low Power — long battery life in wireless and portable products.

  • High S/N >56 dB — clean, low-noise voice for calls and recording.

  • Three Sensitivity Options — -46 ±3 / -44 ±3 / -42 ±3 dB (1 kHz, 0 dB = 1 V/Pa) to match your enclosure and amplifier.

  • Sensitivity Holds at 1.5 V — drop-in voltage only reduces output <3 dB.

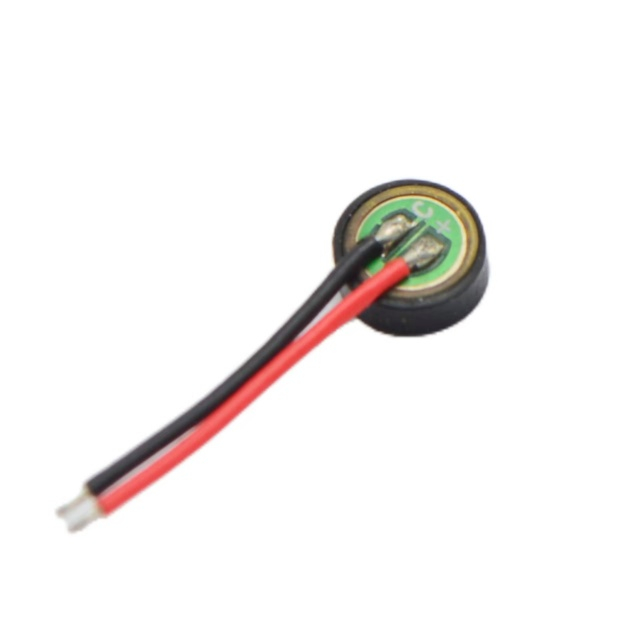

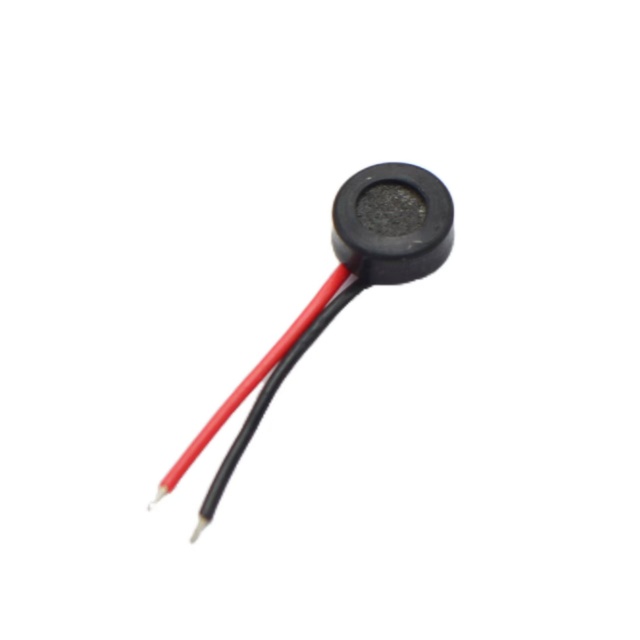

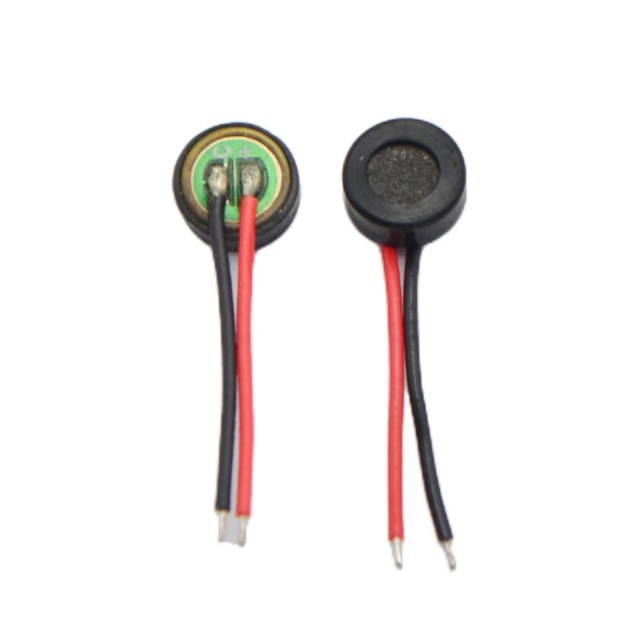

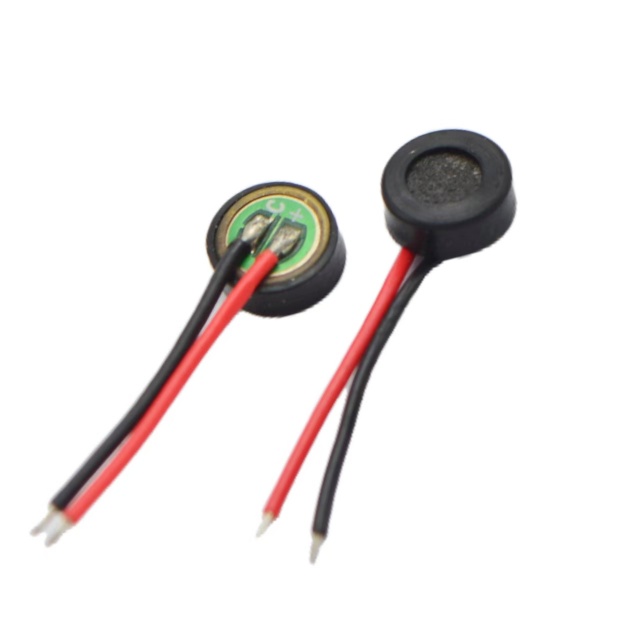

  • Waterproof Wire-Lead Version — moisture/dust resistant; red/black leads for fast wiring.

  • Multiple Terminations — SMD pads (A), pin-hole (B), through-hole pins (P).

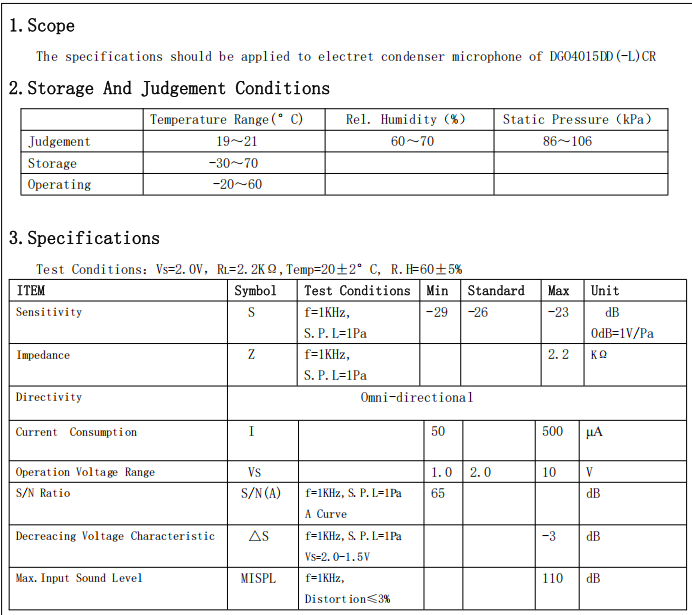

Technical Specifications

Parameter

Specification

Brand

TAT

Model

TAT-EM4015 (M4015 series)

Type

Electret Condenser Microphone (ECM)

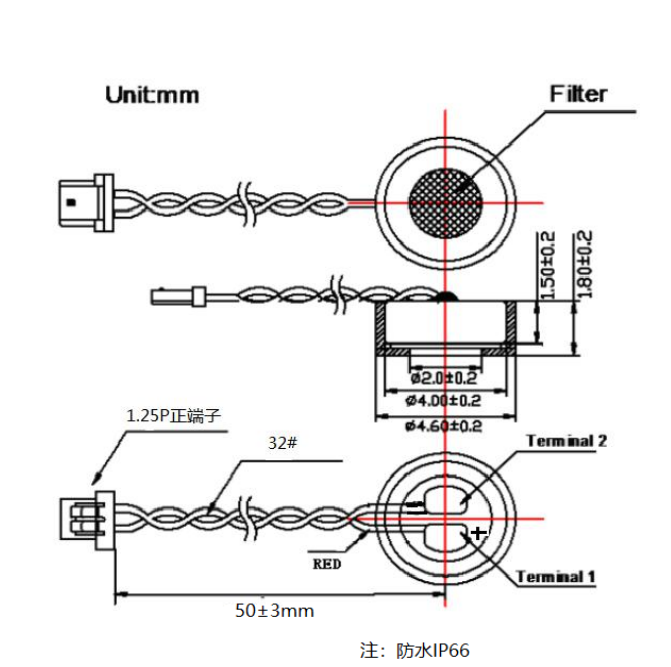

Size

Φ4.0 ± 0.2*1.5 ± 0.1 mm (4015)

Directivity

Omnidirectional

Standard Operating Voltage

2 V

Current Consumption

Max. 0.5 mA

Impedance

< 2.2 kΩ

Sensitivity (1 kHz, 0 dB = 1 V/Pa)

-46 ±3 dB / -44 ±3 dB / -42 ±3 dB (selectable)

Sensitivity Reduction

Within 3 dB at 1.5 V

Signal-to-Noise Ratio

> 56 dB

Termination Options

M4015A SMD pads / M4015B pin-hole / M4015P through-hole pins / wire-lead

Waterproof

Available (wire-lead version)

Origin

China


Typical Applications

  • TWS & Bluetooth Headsets — true wireless earbuds, hands-free calling

  • Voice Products — smart speakers, voice assistants, intercoms

  • Recording & Imaging — voice recorders, action cameras, webcams

  • Wearables — smartwatches, fitness bands

  • In-Car — hands-free car kits, dashcams

  • Smart Home — smart speakers, voice-controlled devices

Why Choose TAT TAT-EM4015?

  1. Tiny 4015 Footprint — fits the smallest earbud and wearable designs.

  2. Clean Voice, Low Noise — >56 dB S/N keeps call audio clear.

  3. Battery-Friendly — 2 V at 0.5 mA extends talk/standby time.

  4. Pick Your Sensitivity & Termination — three sensitivities and pad/pin/lead versions for any design.

  5. Waterproof Option — for outdoor, wearable and sweat-prone use.

Frequently Asked Questions

Q1: What does "4015" mean? It's the standard ECM size: Φ4.0 mm diameter*1.5 mm height — the smallest widely used microphone capsule.

Q2: Omnidirectional? Yes. It picks up sound from all directions (360°), typical for earbuds and headsets.

Q3: What voltage does it need? Standard 2 V, current ≤0.5 mA. It works down to 1.5 V with <3 dB sensitivity loss — easy on battery supplies.

Q4: How do I bias it? Feed the 2 V supply through a bias resistor (typically 2.2 kΩ–2.7 kΩ); the audio signal couples out via a capacitor to your codec/amplifier.

Q5: Which sensitivity should I choose? -46 dB for close-mic headset/earbud use; -44 / -42 dB for more distant or low-gain designs. Contact us for a recommended value.

Q6: Is it waterproof? The wire-lead version offers moisture resistance. For fully waterproof/sealed designs, specify the waterproof mesh/film option.
