EM6027
TAT
EM6027
| Capacitor: | |
|---|---|
| Material: | |
| Circuit Current: | |
| Sensitivity (1 kHz, 0 dB = 1 V/Pa): | |
| Impedance: | |
| S/N ratio: | |
| Directivity: | |
| Availability: | |
| Quantity: | |
6027 Standard Size, Φ6*2.7 mm — larger diaphragm than 4015 for fuller voice pickup.
Metal-Shielded Anti-Jamming — conductive can shields against 2.4G / Wi-Fi / RF interference for clean calls.
Omnidirectional Pickup — 360° sound capture; no aiming needed.
2 V / 0.5 mA Ultra-Low Power — long battery life in wireless and portable products.
High S/N >58 dB — lower self-noise than smaller capsules; clean recording and calls.
Impedance < 2.2 kΩ — standard ECM output for codec/amplifier input.
Three Sensitivity Options — -46 ±3 / -44 ±3 / -42 ±3 dB (1 kHz, 0 dB = 1 V/Pa).

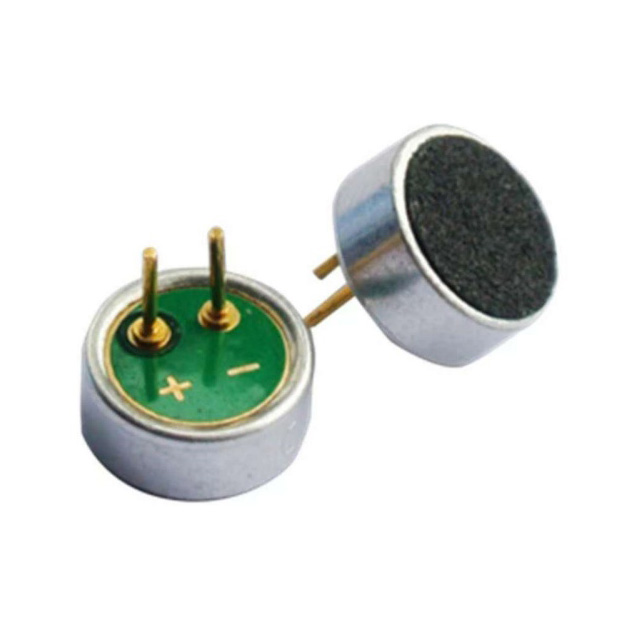

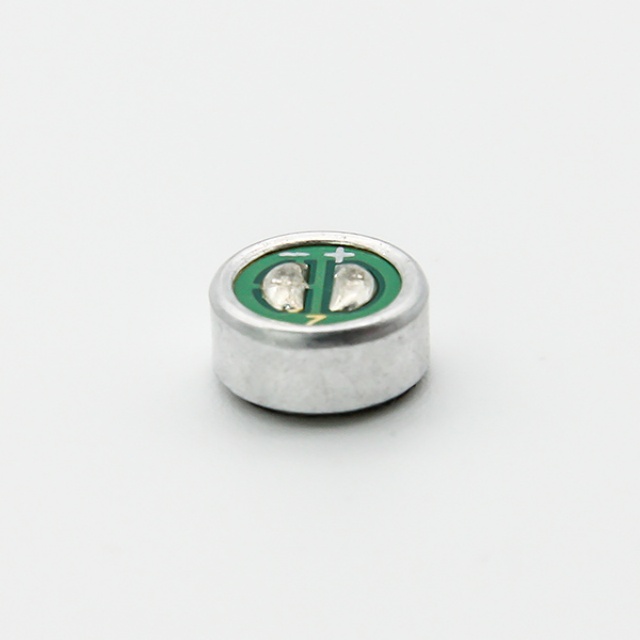

Two Terminations — M6027P through-hole pins / M6027A pads.

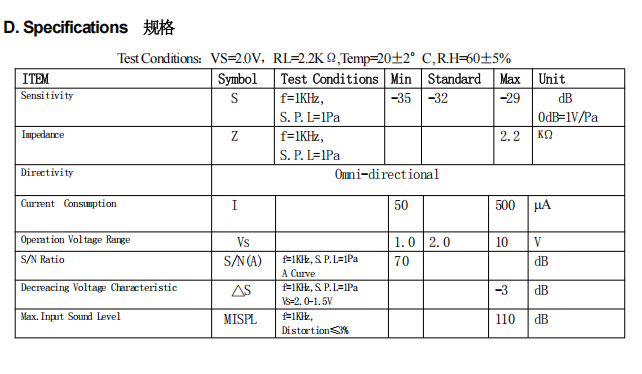

Parameter | Specification |
|---|---|
Brand | TAT |
Model | TAT-EM6027 (M6027 series) |
Type | Shielded Electret Condenser Microphone (ECM), Anti-Jamming |

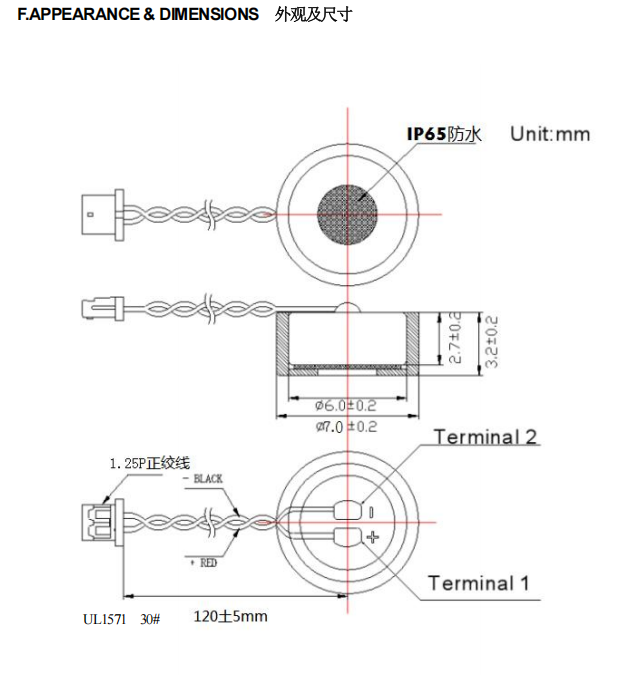

Size | Φ6.0 ± 0.2 * 2.7 ± 0.15 mm (6027) |
Directivity | Omnidirectional |
Standard Operating Voltage | 2 V |
Current Consumption | Max. 0.5 mA |
Impedance | < 2.2 kΩ |
Sensitivity (1 kHz, 0 dB = 1 V/Pa) | -46 ±3 dB / -44 ±3 dB / -42 ±3 dB (selectable) |
Sensitivity Reduction | Within 3 dB at 1.5 V |
Signal-to-Noise Ratio | > 58 dB |
EMI/RFI | Metal shield, anti-2.4G/Wi-Fi interference |
Termination | M6027P through-hole pins / M6027A solder pads |
Origin | China |
Bluetooth & Wireless Audio — TWS earbuds, headsets, 2.4G wireless mics, lavalier mics
Voice Products — smart speakers, voice assistants, intercoms
Recording & Imaging — voice recorders, action cameras, webcams
In-Car — hands-free car kits, dashcams
Smart Home — smart speakers, voice-controlled devices
Wearables — smartwatches, fitness bands
Anti-Jamming Metal Shield — solves 2.4G/Wi-Fi RF popping in wireless designs.
Cleaner Than 4015 — S/N >58 dB and a larger 6 mm diaphragm for fuller voice.
Battery-Friendly — 2 V at 0.5 mA extends talk/standby time.
Pick Your Sensitivity & Termination — three sensitivities and pin/pad versions.
Free Samples — test before you commit to volume.
Q1: What does "6027" mean? Standard ECM size: Φ6.0 mm diameter * 2.7 mm height — larger than 4015 for fuller pickup.
Q2: What does "anti-jamming" mean? The capsule has a metal shield can that blocks 2.4G / Wi-Fi / RF interference, preventing noise and popping in Bluetooth and wireless products.
Q3: Omnidirectional? Yes. It picks up sound from all directions (360°).
Q4: What voltage does it need? Standard 2 V, current ≤0.5 mA. Works down to 1.5 V with <3 dB sensitivity loss.
Q5: How do I bias it? Feed 2 V through a bias resistor (typically 2.2 kΩ–2.7 kΩ); audio couples out via a capacitor to your codec.
Q6: Pins or pads? M6027P has through-hole pins; M6027A has solder pads. Specify at order.
