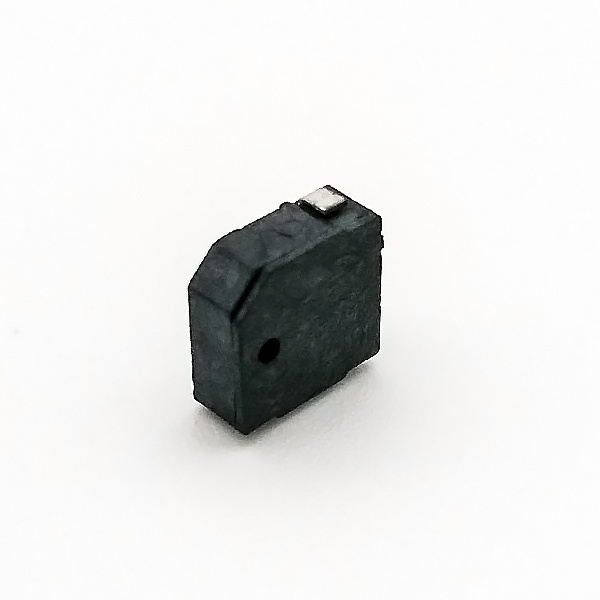

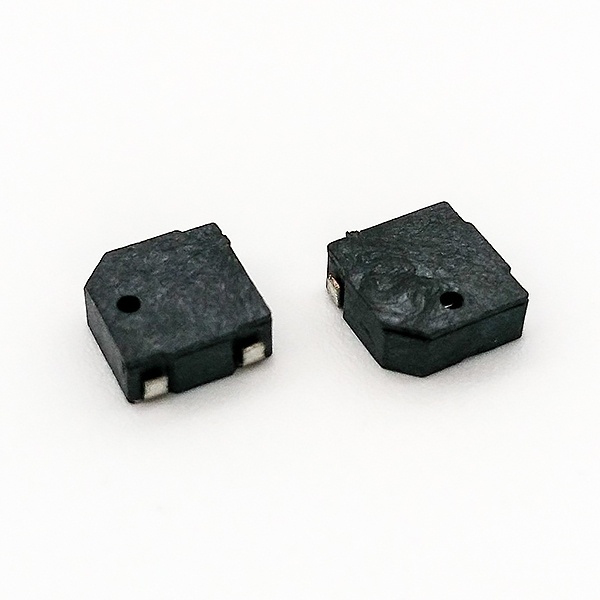

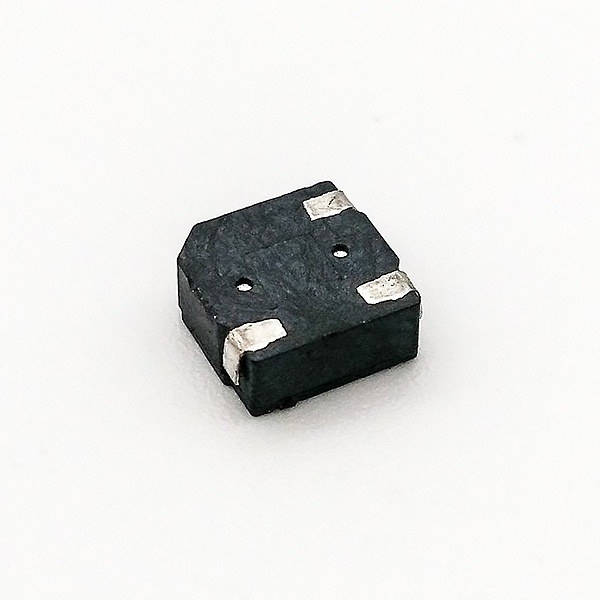

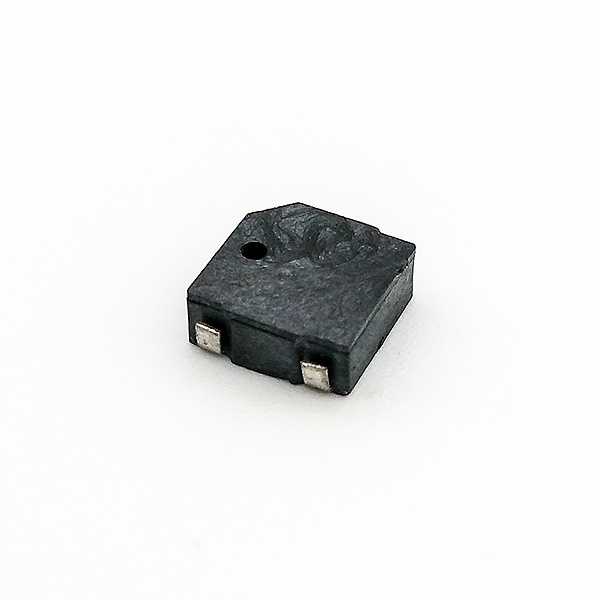

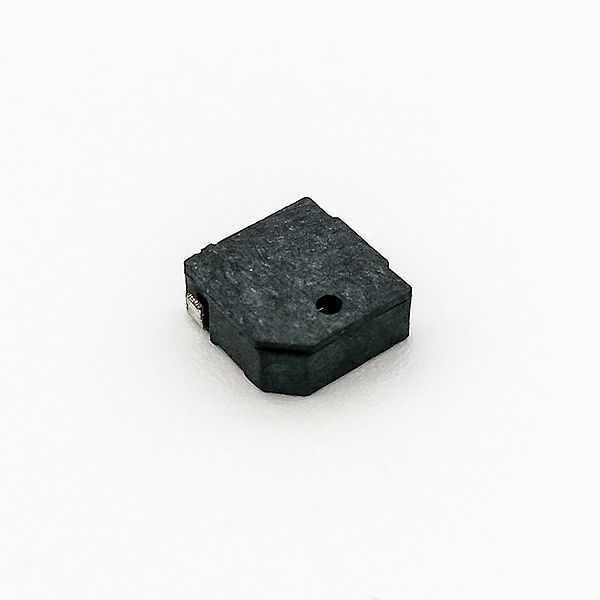

BM5020S SMD Electromagnetic Buzzer For PCBA Boards

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
The BM5020S SMD electromagnetic buzzer delivers stable, clear audio signals with low power consumption, designed for seamless integration into PCBA boards. Its efficient electromagnetic coil and diaphragm structure ensures consistent performance across various applications.

- Compact SMD design for easy automated assembly
- Fixed 4000Hz oscillation frequency, screened by 96-hour life test
- Low power consumption (3–7V, max. 130mA at 5V) ideal for battery-powered devices
- Widely used in consumer electronics, security systems, and industrial controls
  • BM5020S

Availability:
Quantity:

The BM5020S SMD Electro-Magnetic Buzzer represents a highly efficient surface-mount acoustic component specifically engineered to generate precise sound signals across modern PCBA boards. Operating through a sophisticated electromagnetic coil and diaphragm structure, an applied electric current induces a magnetic field that drives rapid vibration, producing clear, crisp, and highly audible tones. Built with premium industrial-grade materials, the buzzer features a high-temperature-resistant Liquid Crystal Polymer (LCP) housing paired with meticulously engineered tin-plated brass terminals. This robust material and structure combination ensures absolute structural stability and excellent electrical conductivity, particularly during demanding lead-free reflow soldering processes.

When handled, the component presents a smooth, precisely molded black exterior with perfectly aligned terminals, reflecting its advanced manufacturing process. Hardware engineers rely on these buzzers for their exceptionally stable performance, minimal power draw, and consistent acoustic output. Offering direct integration into automated SMT assembly lines, stable frequency response, and proven physical durability, this acoustic solution is indispensable for delivering reliable alerts, status reminders, and operational indications in complex electronic ecosystems.

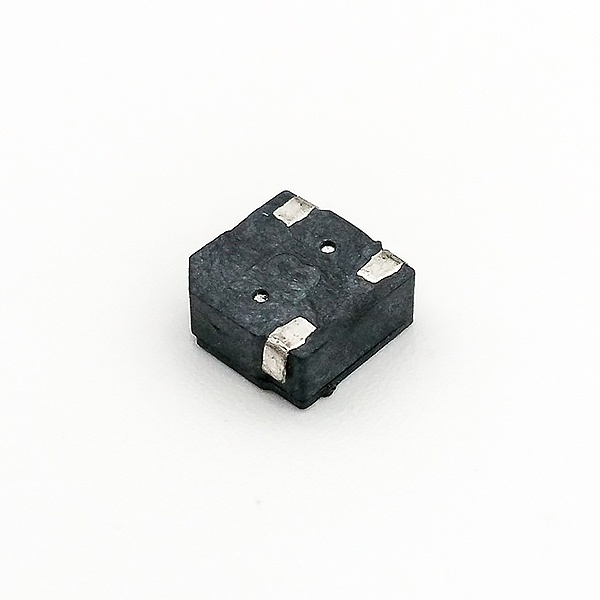

BM5020S SMD Electro-Magnetic Buzzer compact black housing with tin-plated brass terminals

SMD Buzzer Product Advantages & Features

1. Stable Sound Performance & High Reliability

Delivering consistent and clear sound output, the BM5020S relies on a precisely engineered coil and diaphragm architecture. The operating frequency is fixed at the 4000Hz oscillation frequency, guaranteeing reliable audio signaling even in critical operational environments. To ensure long-term dependability, the component undergoes rigorous reliability and environmental testing, including prolonged exposure to high and low temperatures, constant temperature and humidity chambers, thermal shock cycles, and severe drop and vibration assessments. Consequently, every lot is verified by 96-hour high temperature, low temperature and humidity tests, resisting sound distortion and maintaining acoustic integrity across challenging industrial and consumer landscapes.

2. Low Power Consumption & Efficient Driving

Designed specifically for energy efficiency, this SMD electromagnetic buzzer operates flawlessly at low rated voltages ranging from 3 to 7V, while maintaining a current consumption of at most 130mA at the rated 5V. This highly efficient driving mechanism makes it an exceptional choice for battery-powered instruments and portable electronic devices where power preservation is critical. The optimized electromagnetic structure guarantees a remarkably strong sound output without draining system resources, directly contributing to extended battery life and reduced overall system power consumption for your end products.

3. Compact Size & SMT Assembly Guidelines

Featuring a miniaturized surface-mount profile, these buzzers are perfectly optimized for high-speed, automated pick-and-place assembly processes. Common footprint sizes such as 9mm, 12mm, and even smaller profiles grant hardware designers immense flexibility in dense PCB layout planning. For assembly, reflow soldering may be performed twice, and manual soldering is rated for 350℃ within 5 seconds. Its lightweight, compact form factor supports high-density circuit integration, driving down assembly costs while maximizing production throughput.

4. Customizable Sound & Acoustic Performance

Recognizing that different applications demand unique auditory feedback, these buzzers support customizable frequency ranges, fixed at a 4000Hz oscillation frequency, alongside sound pressure levels of at least 75dB at a 10cm distance. To assist hardware engineers in achieving the optimal acoustic output, we supply recommended driving circuit diagrams and detailed frequency response curves. This enables rapid frequency matching and ensures the highest quality sound pressure output, allowing the component to be perfectly tailored for specific acoustic and structural requirements in alarms, medical monitors, and smart home networks.

Technical Parameters

Understanding the exact technical specifications is crucial for proper integration into your circuit designs. The BM5020S is engineered to deliver precise acoustic performance while maintaining strict electrical tolerances. Below is a comprehensive overview of the core operational parameters that define this electromagnetic buzzer's capabilities, ensuring hardware engineers have the exact data needed for optimal component matching.

Parameter

Specification

Rated Voltage Range

3 – 7V

Current Consumption

Max. 130mA (at 5V)

Frequency Range

4000Hz (oscillation)

Sound Pressure Level (SPL)

Min. 75dB at 10cm

Operating Temperature

-20℃ – +70℃

Housing Material

LCP (Black)

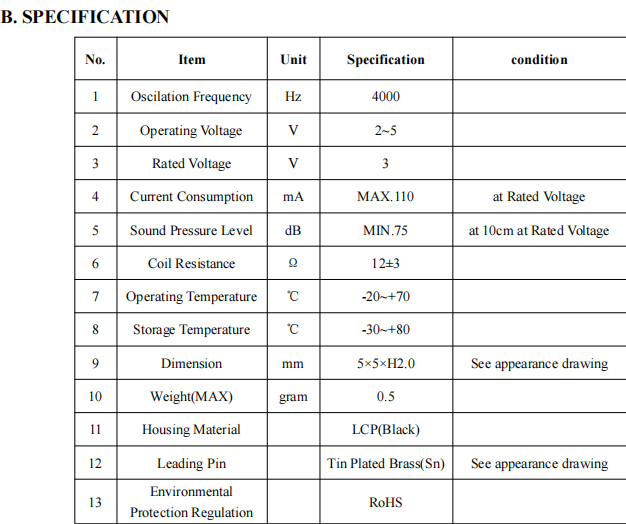

Technical specifications and frequency response curve for the BM5020S SMD electromagnetic buzzer

Downloads

Datasheet: TAT BM5020S-0540-12 Datasheet (PDF, 7 pages, 1.7 MB)

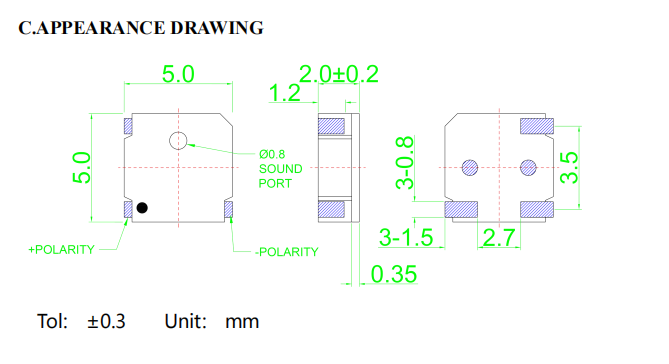

The document contains the full specification, the appearance drawing, the testing method, the typical frequency response curve, the recommended driving circuit, the soldering condition, the reliability test conditions and the packing standard.

Measurement Conditions

Standard measurement condition: 25 ±2 °C, 45 - 65 % R.H. Oscillation frequency, current consumption and sound pressure are all read with the recommended driving circuit shown in the approval drawing, at the rated 5 V and at 10 cm on axis.

Where a measurement is disputed, the judgement condition applies instead: 25 ±2 °C, 60 - 70 % R.H., 860 - 1060 mbar.

Electrical & Acoustic Limits

At 0.1 g and 5 × 5 × 2.0 mm, this is the smallest part in the TAT SMD range, and the 130 mA peak draw is the highest relative to its size — both facts should shape the supply track and the placement nozzle you choose before the first prototype run.

Parameter

Test Condition

Min

Typ

Max

Unit

Oscillation Frequency

—

—

4000

—

Hz

Rated Voltage

—

—

5

—

V

Operating Voltage

—

3

—

7

V

Current Consumption

at rated voltage

—

—

130

mA

Sound Pressure Level

at rated voltage, 10 cm

75

—

—

dB

Coil Resistance

—

9

12

15

Ω

Weight

—

—

—

0.1

g

Reliability Test

The allowable variation of SPL after any test below is ±10 dB unless stated otherwise. Solderability and terminal strength are process qualifications, not ageing tests, and they are what protect you against tombstoning and pad lift-off on the line.

Test Item

Test Condition

Acceptance Criteria

High Temperature Storage

85 ±2 °C for 96 h, then 2 h at normal condition

SPL change ≤ 10 dB

Low Temperature Storage

-30 ±2 °C for 96 h, then 2 h at normal condition

SPL change ≤ 10 dB

Humidity

40 ±2 °C, 90 - 95 % R.H. for 96 h, then 2 h at normal condition

SPL change ≤ 10 dB

Temperature Cycle

5 cycles between the high and low storage limits above

SPL change ≤ 10 dB

Drop Test

Drop on 4 cm hard wood board, 6 directions, from 75 cm

SPL change ≤ 10 dB

Vibration

Amplitude 1.5 mm, 10 - 55 Hz, 2 h on each of 3 perpendicular axes

SPL change ≤ 10 dB

Solderability

Terminals immersed in rosin 5 sec, then in solder bath 300 ±5 °C for 3 ±1 sec

≥ 90 % of terminal length wetted

Terminal Strength

9.8 N (1.0 kg) axial pull on each terminal for 10 sec

No visible damage, no separation

Soldering Condition

Reflow soldering is permitted twice, and the part must be allowed to cool back to normal temperature between the two passes — this is the condition under which the second pass is qualified, not an optional convenience.

Process Step

Recommended Parameter

Reflow soldering

Recommended profile in the approval drawing; max. 2 passes

Cooling between passes

Required — part must return to normal temperature

Manual soldering

350 °C within 5 sec

Mounting & PCB Notes

  • Body — 5 × 5 × H2.0 mm, weight max. 0.1 g, black LCP housing, tolerance ±0.3 mm except where specified.

  • Terminals — tin-plated brass (Sn) leading pins, laid out per the appearance drawing; the part is RoHS compliant.

Product Uses & Applications

1. Consumer Electronics Devices

Widely integrated into modern consumer electronics—including smartphones, tablets, wearable health trackers, and handheld gaming consoles—these SMD electromagnetic buzzers deliver immediate audio feedback for user notifications, tactile button presses, daily alarms, and critical system alerts. Their ultra-compact size and minimal power consumption make them the perfect acoustic solution for space-constrained designs. Furthermore, the stable sound output guarantees a clear, consistent, and pleasant user experience, enhancing the overall perceived value of everyday electronic gadgets.

2. Home Appliances

Within the demanding environments of household appliances such as microwave ovens, smart washing machines, induction cookers, and climate control air conditioners, these buzzers function as essential reminder and alert mechanisms. They effectively notify users of completed operation cycles, provide immediate error warnings, and signal operational status changes. Their exceptional durability and proven ability to operate reliably amidst fluctuating temperature and humidity conditions ensure they deliver consistent acoustic performance over the long lifespan expected of major household appliances.

3. Security and Alarm Systems

In the realm of safety and security, reliability is non-negotiable. These buzzers play a foundational role in security devices like central alarm control panels, residential smoke detectors, and commercial access control systems by generating unmistakable warning sounds. They are instrumental in alerting users to potential environmental dangers, unauthorized facility access, or internal system malfunctions. The high sound pressure output combined with an instantaneous response time ensures that alerts are both timely and highly effective in safety-critical applications.

4. Medical Devices

Precision medical equipment, including continuous patient monitoring devices, advanced diagnostic instruments, and portable healthcare therapeutics, relies heavily on accurate auditory cues. These electromagnetic buzzers provide clear, unambiguous sounds for operational status updates, critical patient alerts, and routine medication reminders. Their low power requirements ensure they do not interfere with sensitive medical electronics, while their stable acoustic performance makes them exceptionally suited for high-stakes healthcare environments where absolute reliability and consistency are paramount.

How to Choose an SMD Electromagnetic Buzzer?

When selecting the ideal SMD electro-magnetic buzzer for your specific project, engineers must evaluate several critical factors to ensure optimal performance and perfect circuit compatibility. First, carefully consider the rated voltage and current consumption to verify alignment with your existing power supply design. It is essential to check the sound pressure level—aiming for at least 75dB at 10cm—to guarantee the audio output meets your application’s specific audibility requirements in its intended environment. Additionally, pay close attention to the oscillation frequency, fixed at 4000Hz on this model, to achieve optimal sound clarity and human ear sensitivity. Evaluate the physical size and SMT package dimensions to ensure they perfectly match your proposed PCB layout and automated assembly constraints. Furthermore, thoroughly review the operating temperature range and reliability standards to ensure long-term, fail-safe performance. Selecting a manufacturing partner with deep customization capabilities and robust engineering support can significantly improve the final product fit and elevate the end-user experience.

Packaging, Logistics & Compliance

To meet the rigorous demands of high-volume automated manufacturing and global supply chains, our SMD electromagnetic buzzers are packaged with meticulous attention to detail and environmental safety.

  • Standardized Tape & Reel Packaging: Components are securely enclosed in standard Tape & Reel formats, perfectly adapted for rapid, automated pick-and-place production lines.

  • Moisture-Proof Vacuum Sealing: Each reel is protected within a moisture-proof vacuum-sealed bag, preventing oxidation of the tin-plated brass terminals and ensuring structural integrity during extended transit and storage.

  • Detailed Carton Specifications: We provide precise inner and outer carton dimensions and weight specifications, facilitating accurate inventory management and secure logistics handling.

  • Global Environmental Compliance: The BM5020S strictly adheres to international environmental and safety standards, including full RoHS compliance. This guarantees an eco-friendly manufacturing footprint and significantly accelerates the global market access and regulatory approval process for your final terminal equipment.
