S40-0450
TAT
S40-0450
| Sensitivity (SPL): | |
|---|---|
| Rated Impedance: | |
| DC Resistance: | |
| Rated Power: | |
| Resonance Frequency (F0): | |
| Operating Temperature: | |
| Storage Temperature: | |
| Availability: | |
| Quantity: | |

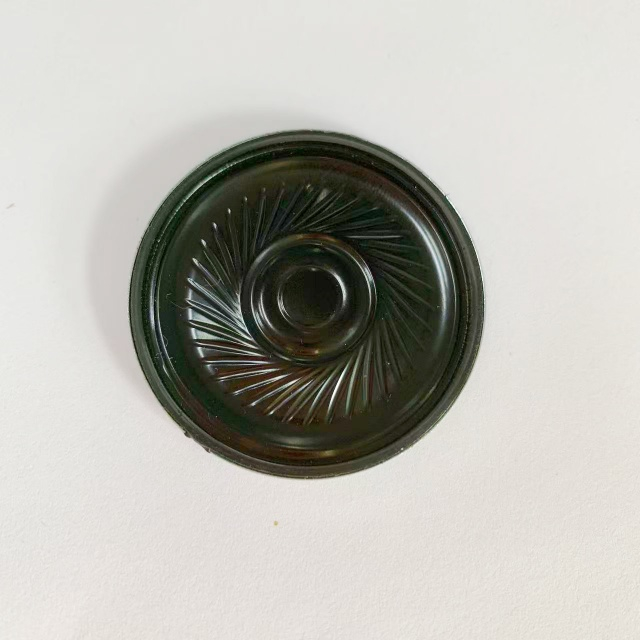

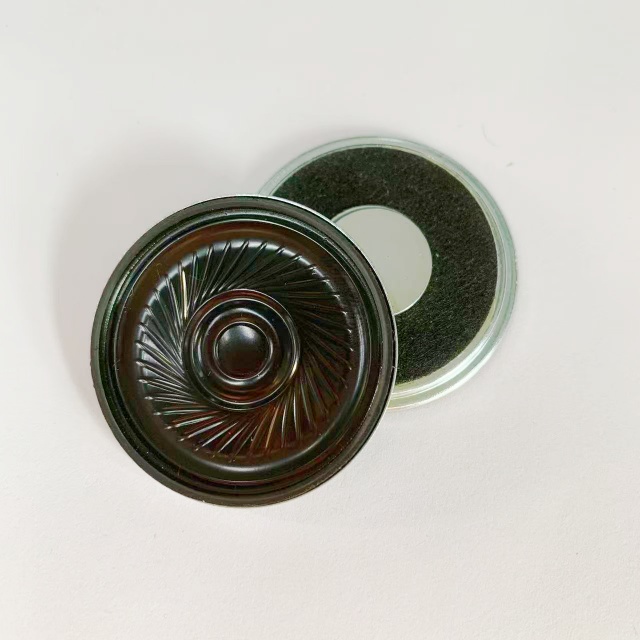

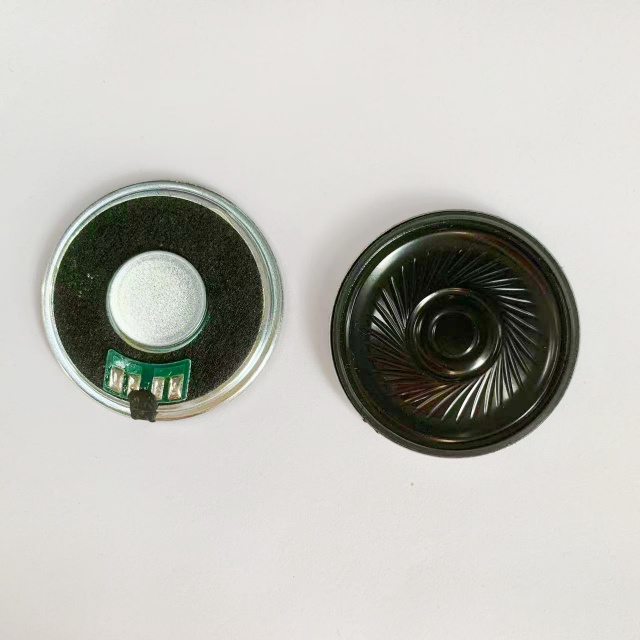

Metal Frame, Rigid and Durable — steel basket resonates far less than plastic frames, dissipates heat better and resists impact; cleaner midrange and longer service life.
5 W Rated / 6 W Peak Power — 3–5× the power of typical 40 mm plastic speakers (1–2 W); drives louder, fuller audio from compact Class-D amps.
F0 as Low as 190 Hz, Full Range to 20 kHz — deep low-end that ordinary 40 mm speakers (F0 300–500 Hz) cannot reach, while still covering voice and high detail in a single driver.
4 Ω ±15% Standard Impedance — pairs with Bluetooth modules, mobile codecs and common Class-D amp ICs out of the box; DC resistance 3.6 Ω.
89 dB Efficient Sensitivity (0.1 W / 0.1 m) — high efficiency means small amps reach usable volume without draining batteries.
Low Distortion <10% at 1 kHz, No Audible Noise — tested free of buzz/rattle from 200 Hz to 4 kHz up to 4.5 Vrms for clean voice and music.
4×Φ3 mm Mounting Holes — metal mounting ring bolts directly to your enclosure; vibration-resistant for portable and mounted products.
RoHS Compliant, -20 °C ~ +70 °C Operation.
Parameter | Specification |
|---|---|
Brand | TAT |
Model | S40-0450 |
Speaker Type | Full-Range Dynamic Mylar Speaker, Metal Frame |
Rated Impedance | 4 Ω ± 15% (@2 kHz, 1 V) |
DC Resistance | 3.6 ± 15% Ω |
Rated Power | 5.0 W |
Max Power | 6.0 W |
Sensitivity (SPL) | 89 ± 3 dB @0.1 W sine wave, 0.1 m; avg. 0.8 / 1.0 / 1.2 / 1.5 kHz |
Resonance Frequency (F0) | 190 ± 20% Hz @1 V (without baffle) |
Frequency Range | F0 – 20 kHz (resonant down −10 dB) |
Distortion | < 10% at 1 kHz, 0.1 W |
Audible Noise | Free of audible noise 200 Hz – 4 kHz, up to 4.5 Vrms |
Body Diameter | Φ40 ± 0.2 mm (mounting ring Φ38.5) |
Overall Height | 20 ± 0.5 mm |
Rear Magnet Cup | Φ23*7.5 ± 0.2 mm |
Mounting | 4*Φ3 mm holes on metal ring |
Net Weight | 29 ± 0.2 g |
Operating Temperature | -20 °C ~ +70 °C |
Storage Temperature | -30 °C ~ +80 °C |
Front Clearance | Keep front of diaphragm clear (0.0 mm obstruction) for undisturbed sound |
Certification | RoHS Compliant |
Origin | China |
Portable Audio — Bluetooth mini speakers, pocket radios, voice players, pocket FM receivers
Smart Home — smart speakers, control panels, video doorbells, intercoms, alarm hosts
Commercial — POS terminals, barcode scanners, cash registers, digital signage voice announcements
Automotive — aftermarket head-unit add-ons, dashcams, parking-audio modules
Medical — desktop patient monitors, therapy devices, nebulizer voice prompts
Toys & Education — early-learning machines, storytellers, children's tablets, quiz buzzers
More Power Than Its Size Suggests — 5 W rated fills a small room or counter area; plastic 40 mm speakers clip and distort at this level.
Genuine Bass for a 40 mm Driver — F0 of 190 Hz gives warmth and kick that flat, tinny micro speakers lack.
One Driver, Full Band — F0 to 20 kHz means no crossover network, cutting BOM cost and board space.
Metal Frame Build Quality — stiff basket and 29 g weight resist drop damage and panel vibration over years of use.
Full OEM/ODM Flexibility — 8 Ω option, wire/terminal variants, custom lead length and connector available.
Q1: Is this 4 Ω or 8 Ω? The S40-0450 is 4 Ω ±15% (DC resistance 3.6 Ω). An 8 Ω version is available on request.
Q2: How much power can it handle? 5.0 W continuous rated, 6.0 W peak. Match with a Class-D amp rated 4–6 W into 4 Ω; avoid sustained clipping above 6 W.
Q3: Why does F0 = 190 Hz matter? A lower resonant frequency means deeper bass extension. Most 40 mm speakers sit near 300–500 Hz and sound thin; this one reaches 190 Hz for fuller voice and music.
Q4: What does "front clearance 0.0 mm" mean? Nothing may cover or touch the diaphragm on the front — keep a clear sound path to your enclosure's outlet hole, otherwise output drops and distortion rises.
Q5: Which amplifier works? Any 4 Ω Class-D amp 4–6 W: PAM8620, NS4150, PAM8403, TPA3110 (small channels), or the built-in amp in Bluetooth modules such as JL AC696N, BES2600.
Q6: Does it need a crossover? No. As a full-range driver it covers F0–20 kHz by itself; use a crossover only for multi-driver systems.
