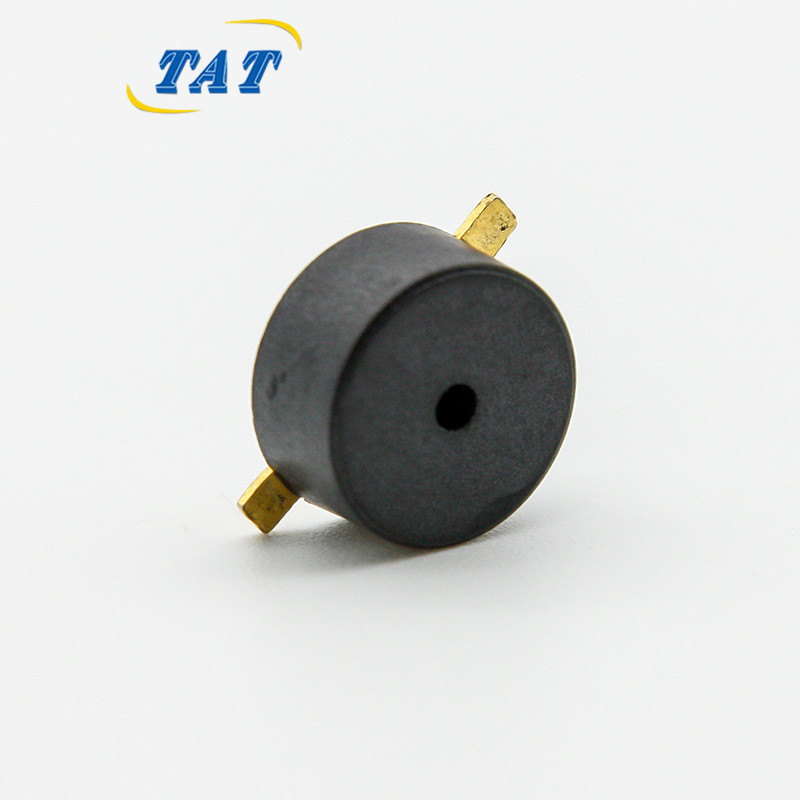

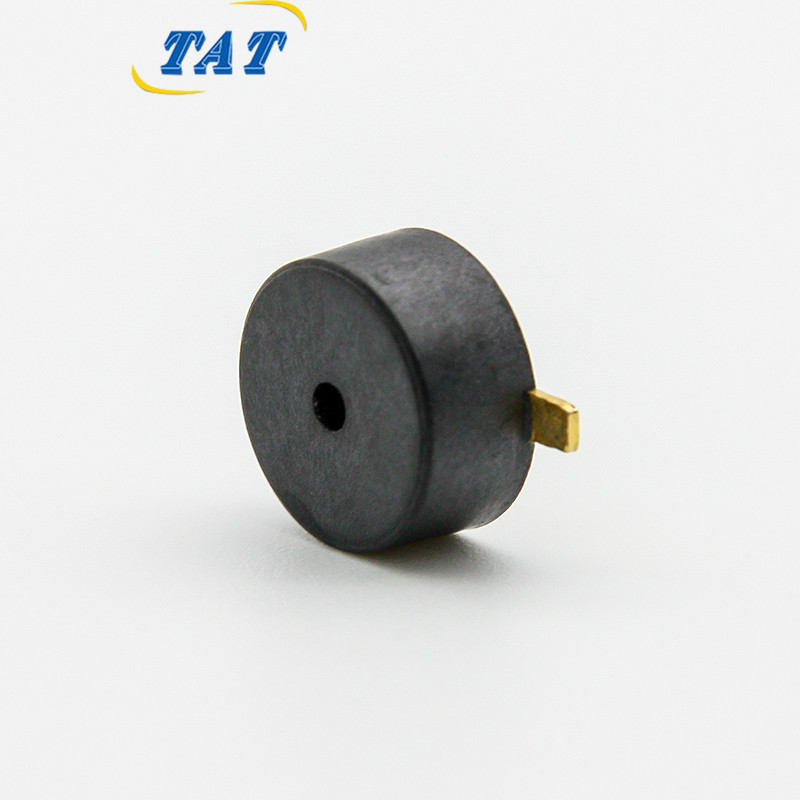

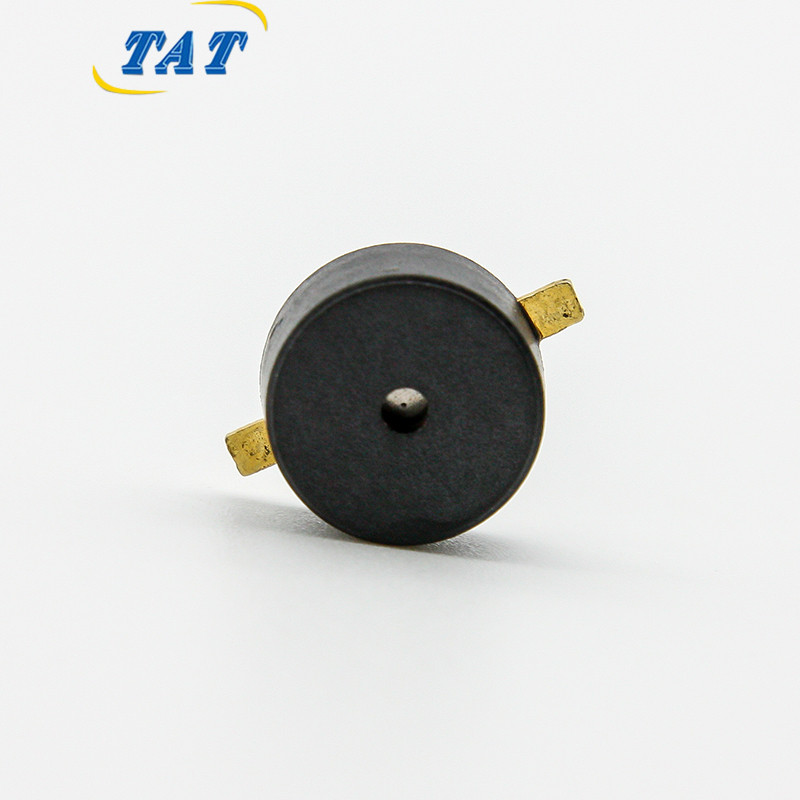

Ultra-Compact Φ9 × 4.5 mm, 0.5 g — among the thinnest magnetic buzzers; fits TWS lids, watches and remotes that cannot accept 5+ mm parts.
Low-Voltage 2–4 Vo-p Drive — direct drive from a 3 V MCU GPIO or coin cell; no charge pump needed.
16 Ω Coil, Easy to Drive — 100 mA peak at rated voltage; a small NPN transistor or GPIO drives it to full 85 dB.
≥85 dB SPL at 10 cm (Rated Voltage) — clear, audible indoor alert in a 9 mm footprint.
2700 Hz Warm Magnetic Tone — softer than a high-pitched piezo; comfortable for user-facing wearables and remotes.

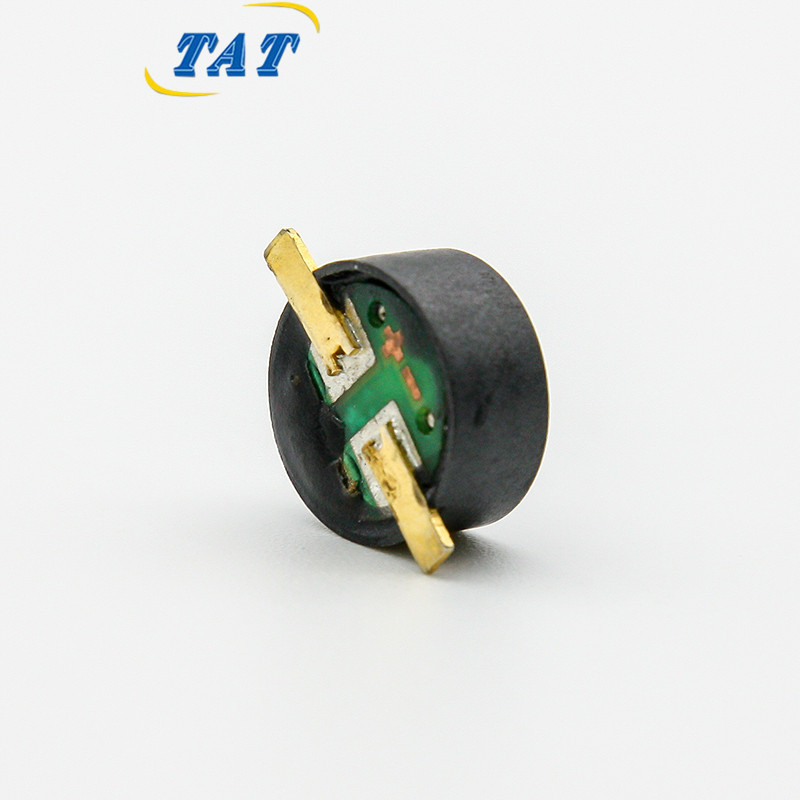

Black LCP Housing, SMD Terminals — heat-resistant LCP and side metallized pads survive reflow; suited to automated SMT lines.
RoHS Compliant, -20 °C ~ +60 °C Operation.

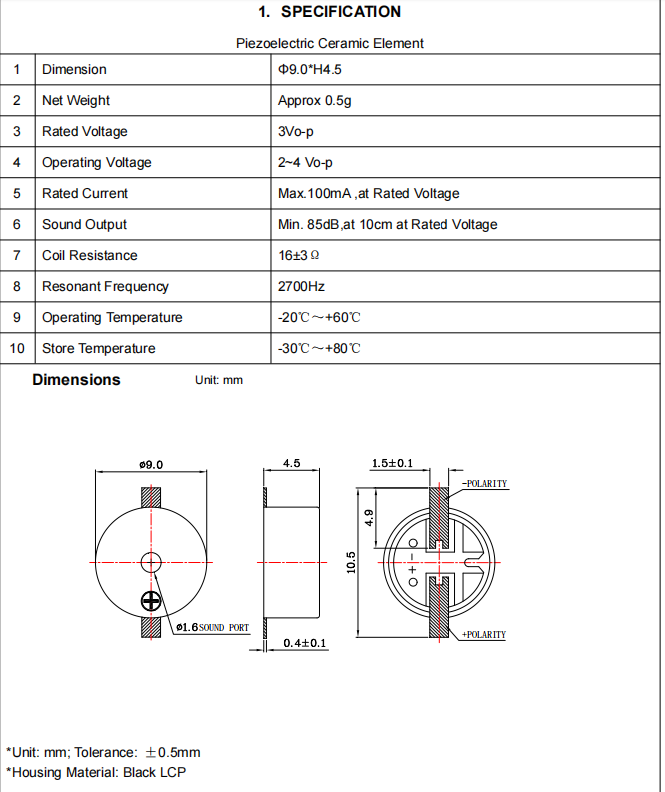

Parameter | Specification |
|---|---|
Brand | TAT |
Model | BM9045SZ-0327-16 |
Buzzer Type | Passive Electromagnetic (Magnetic) Buzzer |
Rated Voltage | 3 Vo-p |
Operating Voltage | 2 – 4 Vo-p |
Rated Current | ≤ 100 mA at rated voltage |
Sound Output (SPL) | ≥ 85 dB at 10 cm, at rated voltage |
Coil Resistance | 16 ± 3 Ω |
Resonant Frequency | 2700 Hz |
Body Diameter | Φ9.0 mm |
Body Height | 4.5 mm |
Top | Φ6.0 sound hole, (+) polarity marked |
Mounting | Side SMD terminals, 1.5 ± 0.1 mm wide, 0.4 ± 0.1 mm thick |
Housing Material | Black LCP (heat-resistant) |
Net Weight | Approx. 0.5 g |
Operating Temperature | -20 °C ~ +60 °C |
Storage Temperature | -30 °C ~ +80 °C |
Tolerance | ±0.5 mm unless specified |
Certification | RoHS Compliant |
Origin | China (Guangdong) |
Hearables & Wearables — TWS charging cases, Bluetooth neckbands, smartwatches, fitness bands
Remote Controls — TV/set-top-box remotes, Bluetooth voice remotes, presentation clickers
Medical Wearables — glucose meters, pulse oximeters, temperature patches
Smart Home — doorbells, smart locks, touch switches, leak detectors
Toys & Novelties — greeting cards, mini voice modules, educational flashcards
Low-Power IoT — battery sensor nodes, beacon tags, asset trackers
Fits the Slimmest Designs — 4.5 mm thickness and 0.5 g open wearable and TWS-case designs impossible with thicker buzzers.
Runs on 3 V Straight from GPIO — 2–4 Vo-p range and 16 Ω coil simplify drive design; no external boost.
LCP for Real SMT — heat-resistant housing and side pads pass reflow without damage.
Warm 2.7 kHz Tone — magnetic output sounds pleasant for user-facing devices, not harsh.
Full OEM/ODM Flexibility — alternate frequencies, pin or wire-lead/connector versions available.
Q1: Active or passive? Passive magnetic. Feed a square wave at 2700 Hz (≈50% duty) from an MCU PWM pin; DC voltage alone makes no sound.
Q2: How do I drive it from a 3 V MCU? Connect one terminal to a GPIO PWM output (2.7 kHz square wave) and the other to GND. The 16 Ω coil draws ~100 mA peak; use a small NPN/MOSFET for cleaner drive.
Q3: Is it SMD or through-hole? Side metallized terminals suit SMD/reflow assembly; a through-hole pin version is available on request.
Q4: How loud is 85 dB? At rated 3 Vo-p measured 10 cm away, 85 dB is a clear indoor alert — suited to handheld and wearable devices held near the user.
Q5: Magnetic vs piezo? Magnetic = warm 2.7 kHz tone, low voltage, 16 Ω coil; piezo = sharp 4 kHz tone, capacitive. Choose magnetic for soft wearable feedback.
Q6: Can I get wire leads? Yes. Standard is SMD terminals; wire-lead and JST connector versions are available on request.
