BM8540S-0327-16
TAT
BM8540S-0327-16
| Rated Voltage: | |
|---|---|
| Operating Voltage: | |
| Rated Current: | |
| Sound Output: | |
| Coil Resistance: | |
| Resonant Frequency: | |
| RoHS: | |
| Availability: | |
| Quantity: | |
85 dB Guaranteed Minimum from an SMD Package — 85 dB is a specified floor at the rated drive, not a best-case sample; suited to status and fault annunciation in enclosed equipment.
Side Sound Port — sound exits through a side slot, so the buzzer can sit flush against a panel with no top clearance, preventing lost volume.
Operating Temperature -20 °C ~ +70 °C — sized for indoor equipment and enclosed cabinets; storage extends to -40 °C ~ +85 °C and does not widen the operating range.
2731 Hz Magnetic Tone — clear, non-harsh alert tone for status and fault indication.
2.0 ~ 5.0 Vo-p Drive, 16 ± 3 Ω Coil — switchable from a 3.3 V logic pin through one transistor; 90 mA maximum at the rated drive point.
Black LCP Housing, Reflow-Compatible — 0.15 mm standoff, tape & reel for high-volume SMT.
RoHS Compliant.
Parameter | Specification |
|---|---|
Brand | TAT |
Model | BM8540S-0327-16 |
Buzzer Type | SMD Passive Electromagnetic (Magnetic) Buzzer |
Oscillation Frequency | 2731 Hz |
Rated Voltage | 3.6 Vo-p |
Operating Voltage | 2.0 ~ 5.0 Vo-p |
Current Consumption | Max. 90 mA at 3.6 Vo-p, 2731 Hz, 1/2 duty |
Sound Pressure Level (SPL) | Min. 85 dB at 10 cm, 3.6 Vo-p, 2731 Hz, 1/2 duty |
Coil Resistance | 16 ± 3 Ω |
Body Size | 8.5 *8.5 *4.0 mm |
Sound Port | Side-facing slot, 3.0*1.8 mm |
Mounting | SMD, 4 corner soldering pads, 1.5 * 45° chamfered corners |
Stand-off Height | 0.15 ± 0.05 mm |
Housing | Black LCP (reflow-compatible) |
Operating Temperature | -20 °C ~ +70 °C |
Storage Temperature | -40 °C ~ +85 °C |
Tolerance | ±0.3 mm unless specified |
Certification | RoHS Compliant |
Origin | China |
Datasheet: BM8540S-0327-16 Datasheet (PDF, 478 KB) — direct download, no form.
This is the production document for this exact part number. It covers:
Electrical and acoustic limits, with the voltage and load conditions they are rated at
Measurement conditions, including the test setup used for sound pressure level and frequency
Reliability test items, test conditions and acceptance criteria
Reflow soldering profile, and PCB mounting and handling notes
Evaluating several parts? Send the voltage range, frequency and target sound pressure level you need, and we will confirm which standard build fits — or quote a custom one.
Telecom & Network — routers, switches, ONT/ONT, base-station fault and alert beepers
Industrial Control — PLC fault alarms, VFD/warning beepers, HMI status tones
Vehicle & Outdoor — cabin electronics and outdoor enclosures used within -20 to +70 °C
Security — door access, smoke detectors, smart locks, alarm panels
Medical — patient monitors, portable diagnostic equipment
Office Equipment — printers, scanners, projector warning tones
85 dB Guaranteed From an SMD Package — a specified minimum instead of a best-case sample; SMD space without an undefined number.
Side Port = No Lost Volume — flush-mount against panels and enclosures without cutting a top hole.
Specified Temperature Window — -20 to +70 °C is a stated limit, so you design to a number instead of discovering it in the field.
Corner Pads Survive Vibration — four corner SMD pads hold up where two-pad SMD parts crack.
Free Samples for Bulk Buyers — direct-factory pricing and tape & reel for high-volume production.
Q1: Active or passive? Passive SMD magnetic. Feed a square wave at 2731 Hz (≈50% duty) from an MCU PWM pin; DC voltage alone makes no sound.

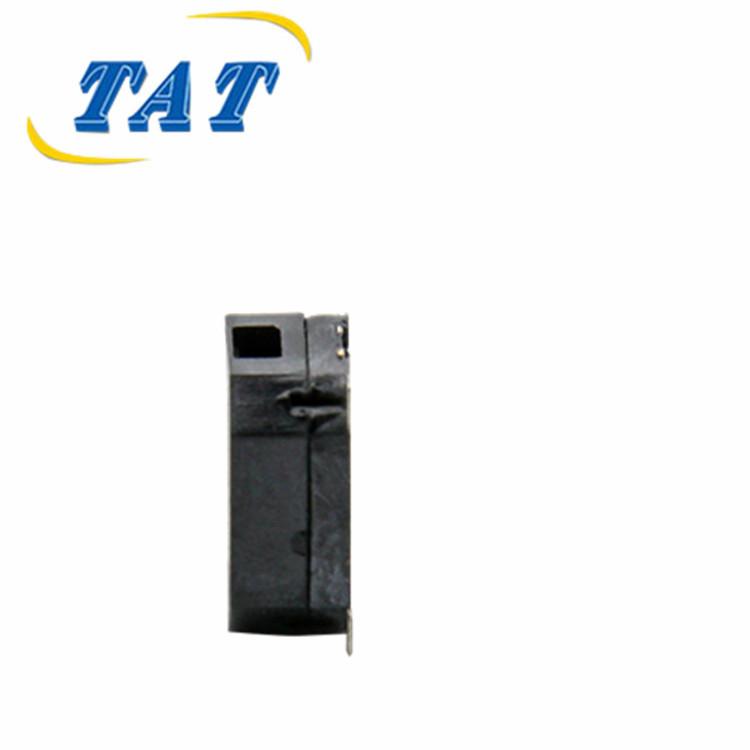

Q2: Where does sound come out? Sound exits through a side slot (3.0 * 1.8 mm). Design your housing with an acoustic path aligned to that side port — do not block it.
Q3: How loud is 85 dB? At rated 3.6 Vo-p measured 10 cm away, 85 dB is the guaranteed minimum — adequate for panel and cabinet annunciation at close range; for open-floor alarms choose a larger through-hole part.
Q4: What is the temperature range? -20 °C to +70 °C operating, -40 °C to +85 °C storage — an indoor and panel part; for outdoor cabinets check the ambient inside the enclosure.
Q5: Can it survive reflow? Yes. The black LCP housing and corner pads are rated for lead-free reflow; follow the reflow profile in the approval sheet (peak 250 °C maximum, 10 s max above 245 °C).
Q6: How do I drive it? Connect one pad to a PWM output (2.7 kHz square wave) and the other to GND. The 16 ± 3 Ω coil draws up to 90 mA at the rated drive; use a small NPN/MOSFET.
Unless a standard condition is specified, every figure in this specification is measured under the ordinary environment below; where a single reference value is quoted, the standard condition applies.
Condition | Ordinary environment | Standard condition |
|---|---|---|
Temperature | 5 ℃ ~ 35 ℃ | 25 ± 3 ℃ |
Relative humidity | 45 % ~ 85 % R.H. | 60 ± 10 % R.H. |
Atmospheric pressure | 860 ~ 1060 hPa | 860 ~ 1060 hPa |
BM8540S-0327-16 is a passive electromagnetic transducer: it has no oscillating circuit of its own and must be driven externally at its resonant frequency with a 1/2 duty cycle square wave. The signal amplitude has to be large enough to saturate the driving transistor, or the specified output is not reached. Sound output and current are both quoted at 3.6 Vo-p, 2731 Hz, 1/2 duty, measured at 10 cm.
The figures below are guaranteed limits, not typical readings, and each carries the drive condition under which it holds.
Limit | Guaranteed value | What it means at the design stage |
|---|---|---|
Rated voltage | 3.6 Vo-p | The reference point for the current and sound pressure figures. It is not a supply rail — it is the peak-to-peak amplitude delivered to the coil. |
Operating voltage | 2.0 ~ 5.0 Vo-p | Below 2.0 Vo-p the diaphragm does not reach rated output; the figures above 3.6 Vo-p are not guaranteed. |
Rated current | Max. 90 mA at 2731 Hz, 1/2 duty, 3.6 Vo-p | Worst-case current at the reference drive. Size the driving transistor and the supply against this figure. |
Sound output | Min. 85 dB at 10 cm, 2731 Hz, 1/2 duty, 3.6 Vo-p | A floor at one measurement point, not a band average. |
Coil resistance | 16 ± 3 Ω | DC resistance of the coil, measured with no drive. It is the number to use when biasing the driver — it is not the impedance seen at 2731 Hz. |
Body tolerance | ±0.3 mm unless specified | Applies to the 8.5 × 8.5 × 4.0 mm body; features called out on the drawing carry their own tolerance. |
After any of the tests below the part must meet specification without degradation in appearance or performance, with one exception: sound output may fall, but not by more than 10 dB from its initial value.
Test | Condition | Duration |
|---|---|---|
Ordinary temperature life | 25 ± 10 ℃, driven at rated voltage and resonant frequency, 1/2 duty square wave | 96 hours |
High temperature | Storage at +85 ℃ | 96 hours |
Low temperature | Storage at -40 ℃ | 96 hours |
Damp heat | +40 ± 3 ℃, 90 % ~ 95 % R.H., then 6 hours at room temperature | 48 hours |
Temperature shock | 60 ℃ / 1 h → 25 ℃ / 3 h → -20 ℃ / 1 h → 25 ℃ / 3 h per cycle | 10 cycles |
Drop | Standard packaging, dropped from 75 cm onto 5 cm hardwood, three sides and six faces | — |
Vibration | 1000 cycles/min, amplitude 1.5 mm, 1 hour on each of 3 axes | 3 hours total |
Reflow | Subjected to the recommended reflow condition: no abnormality after reflow, soldering meets requirement | 1 pass |
BM8540S-0327-16 is an SMD part and is joined by reflow soldering. The profile below is the one in the approval sheet; a wave-soldering or hand-soldering condition is not applicable.
Stage | Condition |
|---|---|
Pre-heating | 170 ℃ ~ 190 ℃, held for 90 ± 30 seconds |
Ramp rate | 4 ℃/second maximum |
Peak temperature | 250 ℃ maximum |
Time above 245 ℃ | 10 seconds maximum |
Cooling | By air |
During automated mounting, bending, expansion, pulling forces and shocks on the transducer must be kept to a minimum, and both an excessive soldering temperature and a steep heating or cooling gradient can cause electrical failure and mechanical damage.

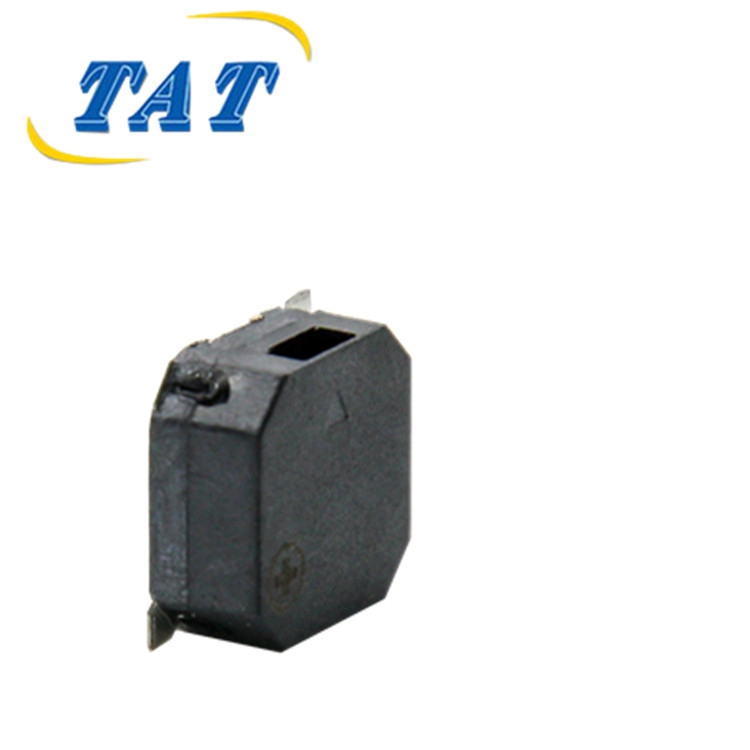

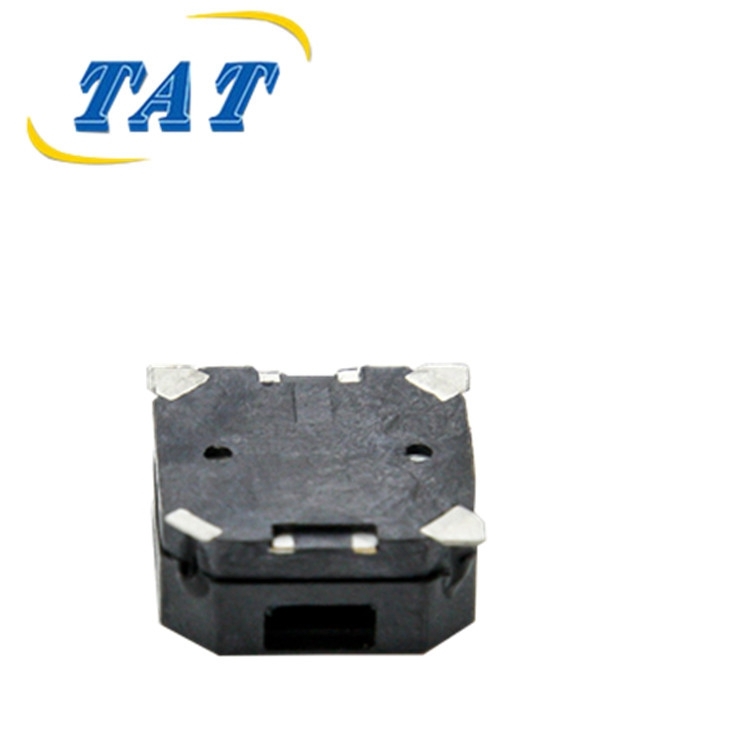

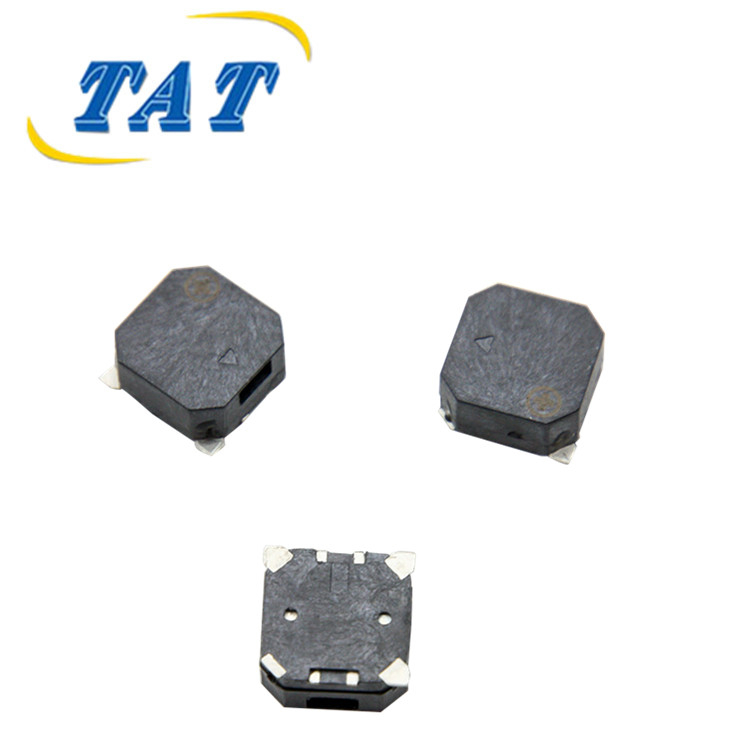

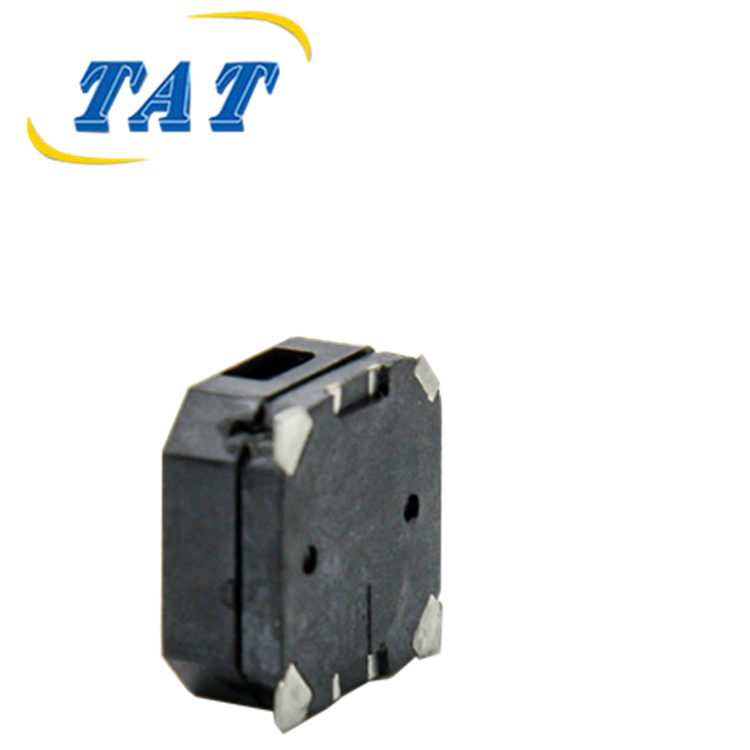

SMD part with four corner soldering pads and 1.5 × 45° chamfered corners; body 8.5 × 8.5 × 4.0 mm, stand-off 0.15 ± 0.05 mm, side-facing sound slot 3.0 × 1.8 mm. Housing is Black LCP, reflow compatible; the terminal plate carries three tin-plated brass soldering pads. Volume orders ship in tape and reel.
Keep the sound cavity clean. This part is not protected against particle ingress. Magnetic powder, washing solvent, flux and corrosive gas must not enter the housing during your production process — once inside, output level drops and does not recover.
