TAT BP3590W100-11 Φ35×9.0mm 10Vp-p 1100Hz Piezoelectric Ceramic Buzzer with XH2.54 Connector

BP3590W100-11 is a passive piezoelectric ceramic buzzer produced by TAT. This round piezo buzzer features dimension Φ35 × H9.0mm and is pre-wired with XH2.54-2P connector for quick plug-in connection. It requires square wave drive signal to generate clear 1100Hz alert tone. With ultra-wide working voltage range and ultra-low power consumption, it is a reliable audio alarm component for various electronic warning systems.

Model:
BP3590W100-11
Brand:
TAT
Code:
BP3590W100-11

Style:	Piezoelectric Ceramic buzzer
Operating Voltage:	1~30Vp-p
Rated Current:	Max.5mA,at 1.1KHz 50% duty Square Wave 10Vp-p
Sound Output at 10cm:	Min.80dB,at 1.1KHz 50% duty Square Wave 10Vp-p
Resonant Frequency:	1100±400Hz
Capacitance:	40±30% pF At 1KHz
Net Weight:	Approx 5.3g
Availability:

Quantity:



Inquire Add to Basket

Product Description

Key Features

Passive piezoelectric ceramic type, driven by square wave signal
Oscillation Frequency: 1100Hz
Wide Operating Voltage: 1~30Vp-p; Rated Voltage: 10Vp-p
Low Power Consumption: Max 5mA under rated voltage
Sound Pressure Level: Min.80dB at 10cm (rated voltage)
Housing: Black PBT, stable and insulating
Lead Pin: Tin plated brass, anti-oxidation
Pre-assembled wire with XH2.54-2P terminal, easy installation
Operating Temperature: -20℃ ~ +70℃
Storage Temperature: -30℃ ~ +80℃
RoHS compliant for global electronics export

Technical Specification

Item	Specification	Test Condition
Oscillation Frequency	1100 Hz	Square Wave
Operating Voltage	1~30 Vp-p	-
Rated Voltage	10 Vp-p	-
Current Consumption	Max.5 mA	At Rated Voltage
Sound Pressure Level	Min.80 dB	10cm, Rated Voltage
Electrostatic Capacity	50000pF ±30%	120Hz,1V

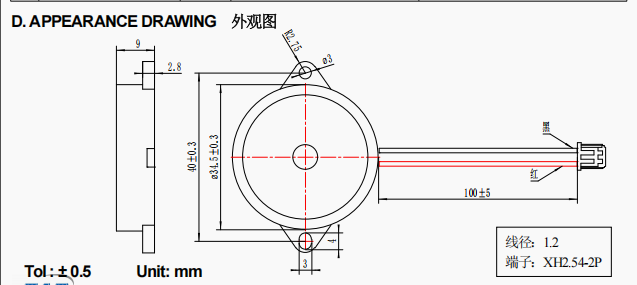

Dimension	Φ35 × H9.0 mm	-
Max Weight	6.2 gram	-
Housing Material	Black PBT	-
Lead Pin	Tin Plated Brass(Sn)	-
Connector	XH2.54-2P	Wire length 100±5mm, wire dia 1.2mm
Environmental Standard	RoHS	-

Application

This piezo buzzer is widely used for audible alert and indication:

1. Security alarm system & fire detectors

2. Industrial control instruments

3. Access control & door entry system

4. Household appliances fault reminder

5. Medical electronic equipment

6. Automatic detection & sensor modules

Custom & Order Service

Samples available for performance testing
Stable mass production and reliable lead time
Custom options: wire length, connector type, resonant frequency, mounting structure
Datasheet, RoHS certificate and test report can be sent upon request

FAQ

Q: Is this an active or passive piezo buzzer? A: It is a passive piezoelectric buzzer. It cannot work with DC voltage directly; square wave signal is required for driving.

Q: What is the advantage of this wide voltage piezo buzzer? A: It supports 1~30Vp-p input, compatible with most common circuit boards, great for projects with unstable or different supply voltage.

Q: Why choose the version with XH2.54 connector? A: Pre-wired XH2.54 terminal avoids soldering work, speeds up assembly on production line.
