| Style: | |
|---|---|
| Rated Voltage: | |
| Operating Voltage: | |
| Rated Current: | |
| Sound Output at 10cm: | |
| Resonant Frequency: | |
| Tone: | |
| Quantity: | |
Active piezoelectric buzzer with built-in drive circuit, directly driven by 12VDC power supply
Equipped with 200±10mm UL1007 AWG28# red & black lead wires, convenient for wiring assembly
Round dimension Φ42 *18mm, black ABS housing with good impact resistance
Two integrated mounting lugs, easy to fix onto panel or equipment shell by screws
Generates loud, clear continuous alarm sound
Tolerance: ±0.5mm for dimensions unless specially specified
RoHS compliant for global electronics export
Factory direct supply with competitive wholesale price
Samples available for prototype testing, custom wire length is acceptable for mass orders
Item | Parameter |
|---|---|
Model | BPC4218W200-12H |
Buzzer Type | Active Piezoelectric Ceramic Buzzer |
Operating Voltage | 12VDC |
Overall Dimension | Φ42 *18 mm |
Housing Material | Black ABS |
Lead Wire | UL1007 AWG28#, Red & Black |
Wire Length | 200±10mm |
Mounting Design | With 2 mounting lugs for screw fixing |
Tolerance | ±0.5mm unless specified |
Compliance | RoHS |

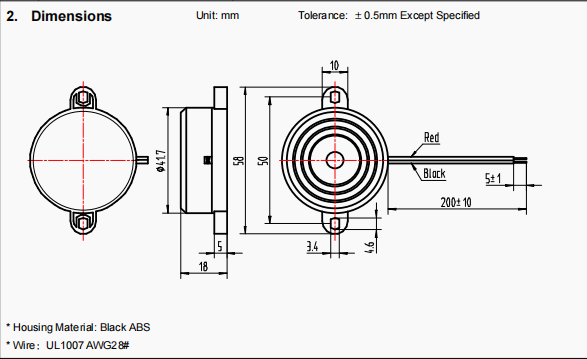

This wired active piezo buzzer uses durable black ABS housing. The engineering drawing shows complete outline size, mounting hole position and red/black lead wire structure. The two mounting ears allow easy panel installation without extra bracket. Built-in circuit makes it simple to operate: just connect DC power to red and black wire to trigger alarm sound.
Our lead-wire active piezoelectric buzzers are widely used for audio warning and reminder signals:
Industrial control cabinets
Security alarm systems
Automatic production machinery
Elevator & lifting equipment
Medical diagnostic instruments
Vehicle backup warning devices
IoT monitoring alarm modules
Q1: Is BPC4218W200-12H active or passive buzzer? It is an active piezo buzzer with internal drive circuit, only need 12VDC power input to sound.
Q2: What is the wire specification? UL1007 AWG28#, red wire for positive and black wire for negative, original wire length is 200mm.
Q3: Can I get samples for sound performance test? Yes, we support sample supply for your prototype verification.
Q4: Can we customize wire length for bulk orders? Custom wire length can be offered when the order quantity meets our MOQ.
Q5: Is this buzzer RoHS compliant? Yes, it meets RoHS requirements for worldwide electronic product export.
