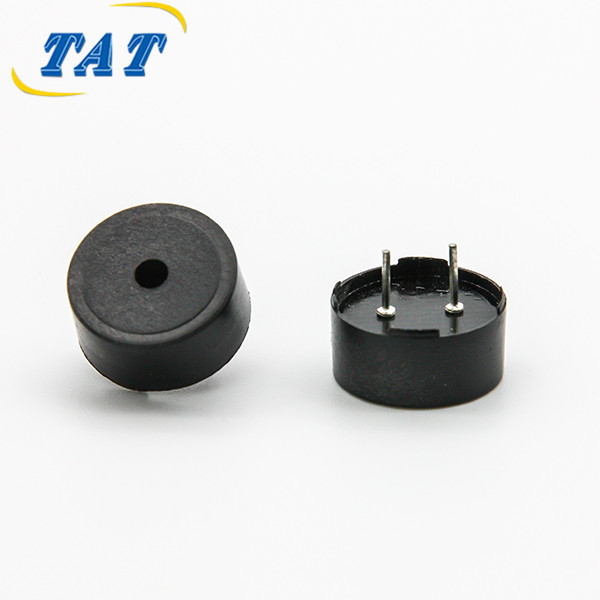

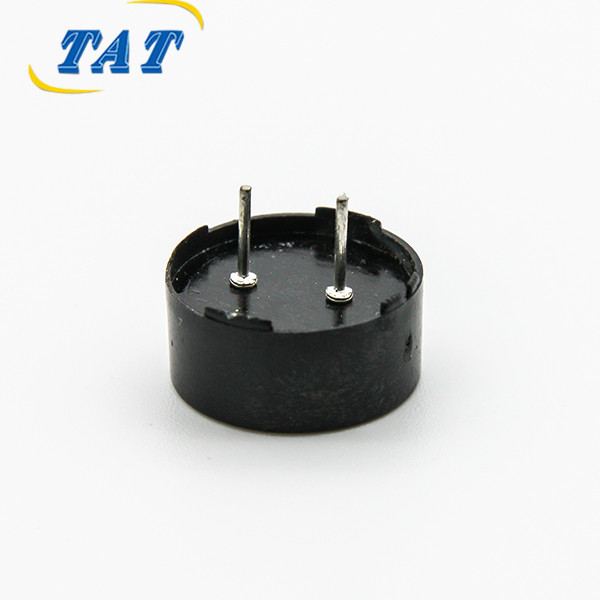

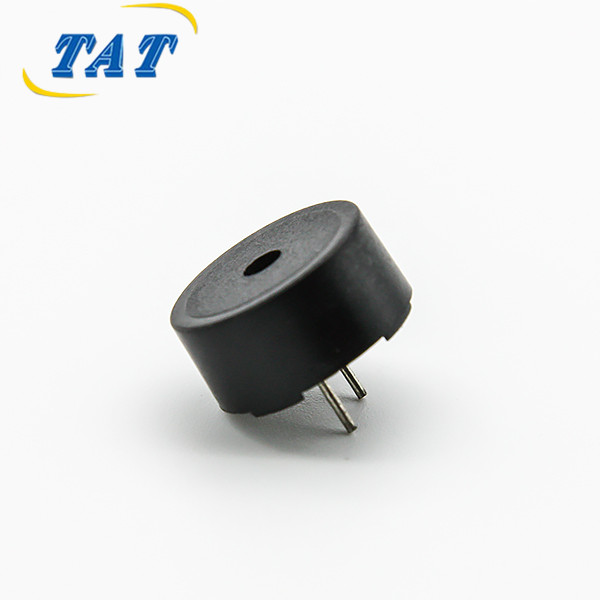

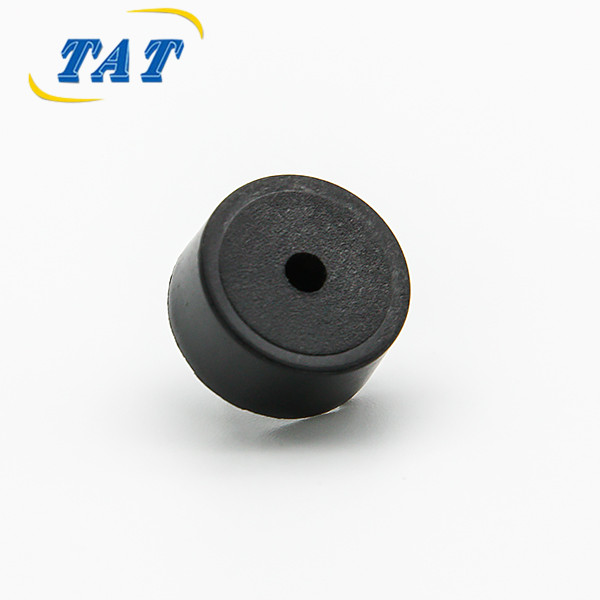

TAT BP1360C-40-P5.0/7.6 is an external-drive passive piezoelectric buzzer in the standard Φ13*6.0mm through-hole package. Driven by a 4kHz square wave across a wide 1–25Vp-p range and drawing only 5mA, it outputs ≥80dB of clear alert tone. A 11nF ceramic element and 5mm/7.6mm-pitch pins make it a cost-effective, reliable beeper for high-volume appliances, meters and alarm products.
  • BP1360C-40-P5.0/7.6

  • TAT

  • BP1360C-40-P5.0/7.6

Style:
Operating Voltage:
Rated Current:
Sound Output at 10cm:
Capacitance:
Resonant Frequency:
Net Weight:
Availability:
Quantity:

Key Features

  • Standard 13 mm Footprint — common piezo buzzer size; drops into existing designs and replaces generic units.

  • Wide Drive 1–25 Vp-p, Only 5 mA — from a 1 V battery up to 25 V industrial rails; near-zero quiescent current.

  • ≥80 dB SPL at 5 Vp-p — clear indoor alert tone for appliances and instruments.

  • 11 nF Ceramic Element — stable electro-acoustic performance, solid-state long life.

  • 4 kHz Resonant, MCU-Programmable — sweep frequency in firmware for chimes and multi-tone alarms.

  • 2-Pin Through-Hole, 5 mm Pitch — two Φ0.6 mm pins fit compact PCB pads; wave-solder friendly.

  • RoHS Compliant, -20 °C ~ +70 °C Operation, 0.6 g.

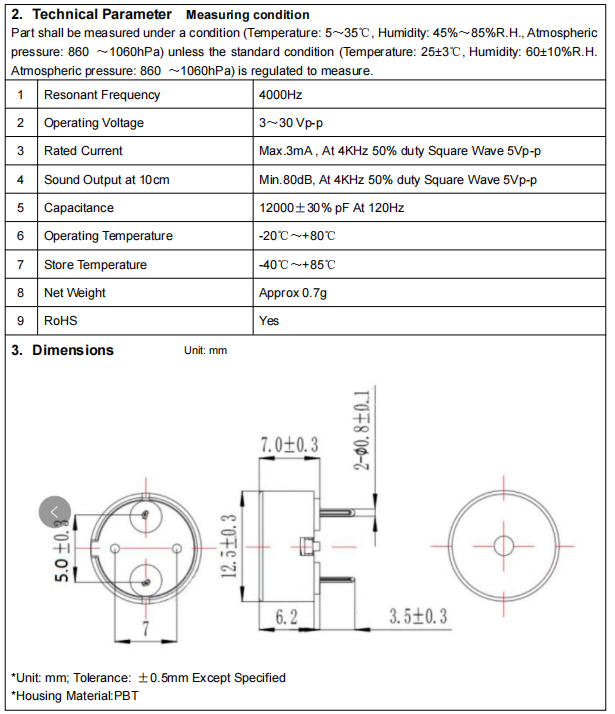

Technical Specifications

Parameter

Specification

Brand

TAT

Model

BP1360C-40-P5.0

Buzzer Type

Passive Piezoelectric Ceramic Buzzer (external drive)

Resonant Frequency

4000 ± 400 Hz

Operating Voltage

1 – 25 Vp-p

Rated Current

≤ 5 mA at 4 kHz, 50% duty square wave, 5 Vp-p

Sound Output (SPL)

≥ 80 dB at 10 cm, at 4 kHz 50% duty, 5 Vp-p

Capacitance

11000 ± 30% pF at 120 Hz

Body Diameter

Φ13.0 ± 0.2 mm

Body Height

6.0 mm

Mounting

Through-hole pins; 2 * Φ0.6 ± 0.1 mm; spacing 5/7.6 ± 0.2 mm

Polarity

Marked on BLACK PCB side

Net Weight

Approx. 0.6 g

Operating Temperature

-20 °C ~ +70 °C

Storage Temperature

-30 °C ~ +80 °C

Tolerance

±0.5 mm unless specified

Certification

RoHS Compliant

Origin

China (Guangdong)


Typical Applications

  • Home Appliances — microwave ovens, rice cookers, washing machines, oven timers

  • Instruments & Meters — multimeters, temperature controllers, timers, digital scales

  • Security & Doorbells — door access, smoke detectors, wired doorbells

  • Toys & Education — electronic keyboards, quiz buzzers, learning machines

  • Medical Portable — glucose meters, blood pressure monitors

  • Networking — router/switch fault beepers

  • Industrial Panels — small status and warning beepers

Why Choose TAT BP1360C-40-P5.0?

  1. Proven 13 mm Size — easy cross-reference and replacement of common piezo buzzers.

  2. One Part for All Voltages — 1 to 25 Vp-p range cuts SKU count across battery, logic and industrial products.

  3. Cost-Optimized for Volume — competitive pricing at high MOQ.

  4. Micro-Power 5 mA — suits battery-powered and standby-alert designs.

  5. Full OEM/ODM Flexibility — alternate frequencies, pin lengths and wire-lead versions available.

Frequently Asked Questions

Q1: Active or passive? Passive piezo. Feed a square wave at 4000 Hz (≈50% duty) from an MCU PWM pin; DC voltage alone produces no sound.

Q2: How do I drive it? Connect one pin to a GPIO PWM output (4 kHz square wave) and the other to GND. For 12–25 Vp-p drive, use an NPN/MOSFET stage with a current-limiting resistor.

Q3: How loud is 80 dB? At 5 Vp-p measured 10 cm away, 80 dB is a clear indoor alert. Raising drive voltage toward 25 Vp-p increases SPL.

Q4: Is it SMD or through-hole? Through-hole pins (5/7.6mm spacing). An SMD variant is available on request.

Q5: Can I get wire leads instead of pins? Yes. Standard is pins; wire-lead and JST connector versions are available on request.
