| Style: | |
|---|---|
| Operating Voltage: | |
| Rated Current: | |
| Sound Output at 10cm: | |
| Resonant Frequency: | |
| Capacitance: | |
| Net Weight: | |
| Quantity: | |
Passive Piezo Design: No internal oscillation circuit. Users can freely adjust tone frequency via external MCU square wave signal.
Compact 13×6.0mm Size: Small footprint saves PCB layout space, easy integration into compact electronic devices.
Low Power Consumption: Max rated current only 5mA, excellent for battery-powered portable products.
Low EMI Performance: No electromagnetic coil inside, no magnetic disturbance to nearby sensitive circuits.
Wide Operating Temperature Range: Stable performance from -20℃ ~ +70℃.
Clear Audible Warning: Minimum 80dB sound pressure level measured at 10cm distance for obvious alert sound.
RoHS Compliance: Satisfies global environmental requirements for exported electronic goods.
Item | Specification | Test Condition |
|---|---|---|
Model | TAT BP1360-40 | - |
Type | Passive Piezoelectric Ceramic Buzzer, Pin Mount | - |
Resonant Frequency | 4000 ± 400 Hz | - |
Operating Voltage | 1 ~ 25 Vp-p | - |
Max Rated Current | 5 mA | At 4KHz, 50% duty Square Wave, 5Vp-p |
Sound Output | Min.80dB @10cm | At 4KHz, 50% duty Square Wave, 5Vp-p |
Capacitance | 11000 ±30% pF | At 120Hz |
Operating Temperature | -20℃ ~ +70℃ | - |
Storage Temperature | -30℃ ~ +80℃ | - |
Net Weight | Approx. 0.6g | - |
Environmental Compliance | RoHS | Yes |
Unless otherwise specified, parts are measured under ambient condition: Temperature: 5 ~ 35℃, Humidity: 45% ~ 85%R.H., Atmospheric pressure: 860 ~ 1060hPa. Standard measuring condition: Temperature: 25±3℃, Humidity: 60±10%R.H., Atmospheric pressure: 860 ~1060hPa.
This passive piezoelectric buzzer works based on piezoelectric effect. When external square wave signal is applied to the piezo ceramic chip, the ceramic plate creates mechanical deformation and rapid vibration to produce audible sound. As a passive buzzer, there is no built-in oscillator. You need to supply square wave signal by MCU to trigger sound output. Without copper coil, it generates extremely low electromagnetic interference compared with electromagnetic buzzers.
This pin mount piezo buzzer is widely used for audio reminder and alarm signals:
Smart sensors & IoT modules
Portable handheld instruments
Small household appliances control panel
Mini security alarm devices
Medical portable electronics
Wearable electronic equipment
We are a professional manufacturer of electro-acoustic components. Custom service is available for BP1360 series. We can customize resonant frequency, sound pressure level and pin length according to your project drawings. Samples can be supplied for lab performance testing before mass production. RoHS certificate is available on request. Contact our engineer team to confirm MOQ and quotation.
Q: Is BP1360-40 active or passive buzzer? A: It is passive piezo buzzer, no built-in oscillator. External MCU square wave signal is required to produce sound.
Q: What is the maximum rated current? A: Max rated current is 5mA, low power consumption for battery-operated products.

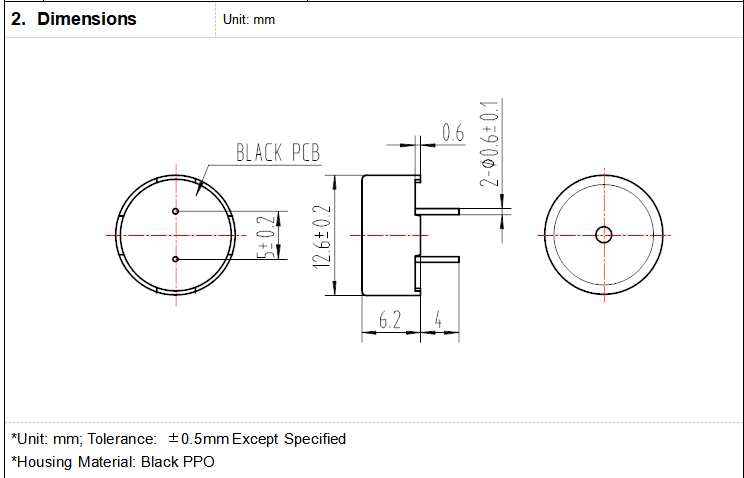

Q: What is the dimension of this buzzer? A: Diameter 13mm, height 6.0mm, compact pin mount design for PCB soldering.
Q: What is the difference between piezo buzzer and electromagnetic buzzer? A: Piezo buzzer uses ceramic wafer vibration, low current and low EMI. Electromagnetic buzzer relies on coil and diaphragm with higher current consumption. Piezo type is more suitable for compact electronic devices.
Q: Can I get samples for testing? A: Yes, samples are available for prototype and acoustic performance verification.
Q: Is this buzzer RoHS compliant? A: Yes, TAT BP1360-40 meets RoHS requirement, certificate can be provided.
