BPC2316-2431 23.3mm 24V Active Piezo Buzzer | 95dB Continuous Tone Internal Drive Piezoelectric Buzzer

The BPC2316-2431 piezoelectric buzzer is an active acoustic alarm component with integrated driving circuit. Unlike passive buzzers, it can emit stable continuous warning sound directly once connected to DC power within 5–28V, without extra drive circuits or signal modules. It features a resonant frequency of 3100±500Hz and impressive 95dB minimum sound output, delivering loud, clear alert signals for industrial and security devices. The shell adopts premium black PPO material, which brings excellent heat resistance and aging resistance. It supports -20℃ ~ +70℃ working temperature and adapts to tough indoor industrial environments. This 23.3*16mm through-hole pin buzzer is designed for direct soldering on PCB boards. Strict production testing guarantees consistent acoustic performance and long service life for mass manufacturing orders.

Model:
BPC2316-2431
Brand:
TAT
Code:
BPC2316-2431

Style:	Piezoelectric Ceramic Buzzer Built-in Osciliating Circult Type
Rated Voltage:	24VDC
Operating Voltage:	5~28Vp-p
Rated Current:	Max.30mA,at 24VDC
Sound Output at 10cm:	Min.95dB,at 24VDC
Resonant Frequency:	3100±500Hz
Tone:	Continuous
Availability:

Quantity:



Inquire Add to Basket

Product Description

Key Features

1.Active type with built-in drive circuit, direct DC power input

2.Rated 24VDC, wide operating voltage: 5 ~ 28VDC

3.Min.95dB loud warning sound measured at 10cm, continuous tone

4.Black PPO housing, outstanding high-temperature & anti-aging performance

5.Wide temperature range: -20℃ ~ +70℃ operating, -30℃ ~ +80℃ storage

6.Through-hole pin mounting for easy PCB assembly

7.RoHS certification, qualified for European market export

8.Stable resonant frequency 3100±500Hz, reliable sound consistency

Technical Specifications

Item	Parameter
Model	BPC2316-2431
Rated Voltage	24 VDC
Operating Voltage	5 ~ 28 VDC
Rated Current	Max.30mA @24VDC
Sound Output (10cm)	Min.95dB @24VDC
Resonant Frequency	3100 ± 500 Hz
Tone Type	Continuous Tone
Operating Temperature	-20 ~ +70 ℃
Storage Temperature	-30 ~ +80 ℃
Housing Material	Black PPO

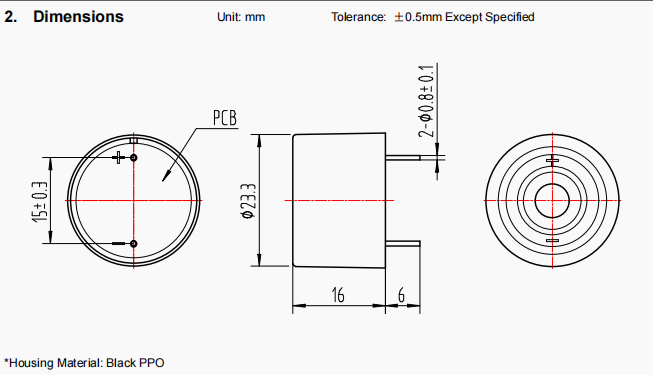

Dimension	Φ23.3mm × 16mm
Mounting Type	Pin / Through-hole
Certification	RoHS
Weight	Approx . 5g

Applications

Security alarm and intrusion detection systems
Industrial control panels & automation warning modules
Access control, door entry alert devices
Construction machinery & vehicle auxiliary alarm
Smart cabinet, power distribution cabinet prompt alarm
Other electronic equipment requiring loud audio warning

FAQ

Q1: Is this active or passive buzzer? A: It is an active piezo buzzer with internal driving circuit. It will sound directly when powered by 5–28V DC, no external square wave signal needed.

Q2: Can we customize it to intermittent beep sound? A: The standard version outputs continuous tone. Intermittent sound customization is available for bulk orders.

Q3: What is the test condition for 95dB? A: Sound level is tested at 10cm distance under rated 24VDC supply.

Q4: Why use PPO housing instead of normal plastic? A: PPO material has better heat resistance, low creep and anti-aging property, more suitable for long-running industrial alarm devices.

Q5: Can I get samples for testing? A: Yes, samples are available for performance verification. Please send an inquiry to confirm sample cost and shipping.
