TAT BP3075-28 Piezoelectric Ceramic Buzzer, Pin Mount 30*7.5mm, 10Vp-p 2800Hz Piezo Buzzer

TAT BP3075-28 is a pin through-hole piezoelectric ceramic buzzer. It is constructed with high-performance piezo ceramic chip and Black Noryl plastic housing, with overall dimension Φ30*7.5mm. This passive piezo buzzer operates at 10Vp-p with resonant frequency of 2800Hz. Two straight pins are designed for easy soldering onto PCB boards. It features ultra-low power consumption and loud, stable beep tone, widely used as audio warning and reminder component for home appliances, industrial control and alarm devices. We are direct manufacturer and provide samples and custom solutions for bulk orders.

Model:
BP3075-28
Brand:
TAT
Code:
BP3075-28

Style:	Piezoelectric Ceramic buzzer
Operating Voltage:	1~30Vp-p
Rated Current:	Max.5mA,at 2.8KHz 50% duty Square Wave 10Vp-p
Sound Output at 10cm:	Min.85dB,at 2.8KHz 50% duty Square Wave 10Vp-p
Resonant Frequency:	2800Hz
Capacitance:	20000±30% pF At 120Hz
Net Weight:	Approx 5g
Availability:

Quantity:



Inquire Add to Basket

Product Description

Key Features

Piezoelectric ceramic buzzer, driven by piezoelectric effect with ultra-low current draw
Pin through-hole mounting design, simple for PCB soldering and assembly
Round size: Φ30 * 7.5mm, larger diaphragm delivers louder sound output
Housing material: Black Noryl, excellent heat resistance and mechanical strength
Electrical spec: 10Vp-p, resonant frequency 2800Hz
Dual pins with clear polarity marking to prevent reverse soldering
Crisp and high-volume alert beep
RoHS compliant for global electronics export
Factory direct supply with competitive wholesale price
Samples available for prototype acoustic testing, custom pin length acceptable for mass orders

Specifications

Item	Parameter
Model	BP3075-28
Buzzer Type	Piezoelectric Ceramic Buzzer
Mounting Type	Pin Through Hole
Overall Dimension	Φ30 *7.5 mm
Housing Material	Black Noryl
Pin Quantity	2 Pins
Rated Voltage	10Vp-p
Resonant Frequency	2800Hz
Tolerance	±0.5mm unless specified
Compliance	RoHS

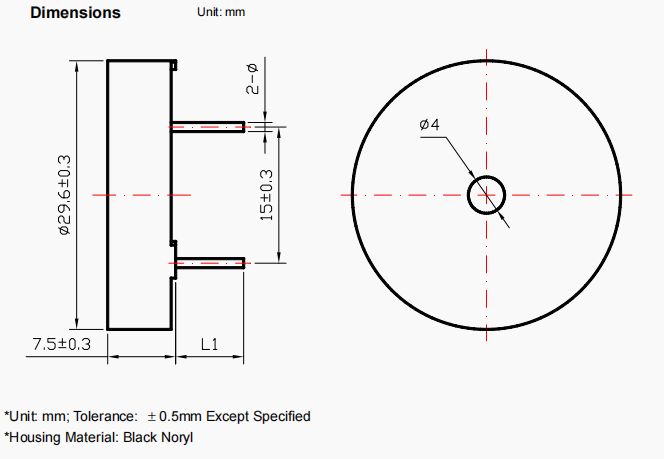

Product Dimension & Structure

This large round piezo buzzer uses high-performance Black Noryl housing. The engineering drawing shows full outline dimensions and two pin layout. Its bigger piezo diaphragm can produce louder sound compared with small-size piezo buzzers. The two through-hole pins can be directly soldered to PCB. Polarity marking helps engineers avoid wrong wiring during assembly.

Applications

Our pin-type piezoelectric buzzers are widely used for audio reminder and warning signals:

Household electrical appliances
Industrial control panels
Security alarm systems
Portable medical reminder instruments
Handheld testing & measuring equipment
IoT electronic devices
Automatic equipment prompt modules

FAQ

Q1: Is BP3075-28 active or passive piezo buzzer? It is passive piezoelectric buzzer, requiring external square wave drive signal to generate sound.

Q2: What is the advantage of Noryl housing? Black Noryl features high temperature resistance, good dimensional stability and strong impact resistance, suitable for industrial and high-temperature working environment.

Q3: Can I get samples for sound testing? Yes, we support sample supply for your prototype verification.

Q4: Can we customize pin length for bulk orders? Custom pin length and other parameters are available when order quantity meets MOQ.

Q5: Is this buzzer RoHS compliant? Yes, it meets RoHS requirements for worldwide electronic product export.
