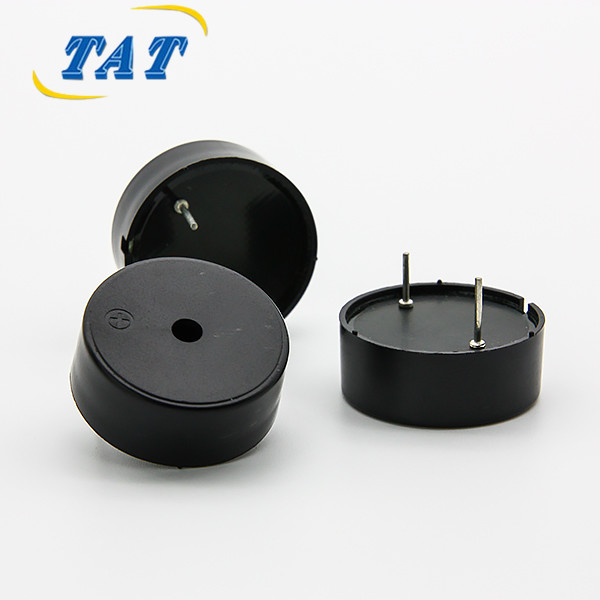

TAT BPC2410-1232 is an active piezoelectric buzzer with built-in drive circuit, housed in a compact Φ24*10mm can. Apply 12VDC and it immediately sounds a loud 95dB, 3200Hz continuous tone — no external oscillator, no PWM tuning. The through-hole pins on a 1mm spacing mount straight to your PCB or terminal block, making it a simple, high-decibel alerting part for security panels, access control, industrial control cabinets and commercial equipment.
  • BPC2410-1232

  • TAT

  • BPC2410-1232

Style:
Rated Voltage:
Operating Voltage:
Rated Current:
Sound Output at 10cm:
Resonant Frequency:
Tone:
Availability:
Quantity:

Key Features

  • Active with Built-in Circuit — apply 12 VDC and it sounds at once; your MCU only switches power on/off, no square-wave generation needed.

  • ≥95 dB Loud Output at 10 cm — high-decibel alarm tone clearly heard across rooms, corridors and workshops where 80–85 dB buzzers go unnoticed.

  • 12 VDC Standard Voltage — matches security panels, door-access controllers and industrial control boards; no separate regulator required.

  • 3200 Hz Continuous Tone — penetrating mid-frequency alarm sound for steady fault/emergency indication.

  • Compact Φ24 × 10 mm — balances loud output with a smaller footprint than 30/40 mm alarm buzzers.

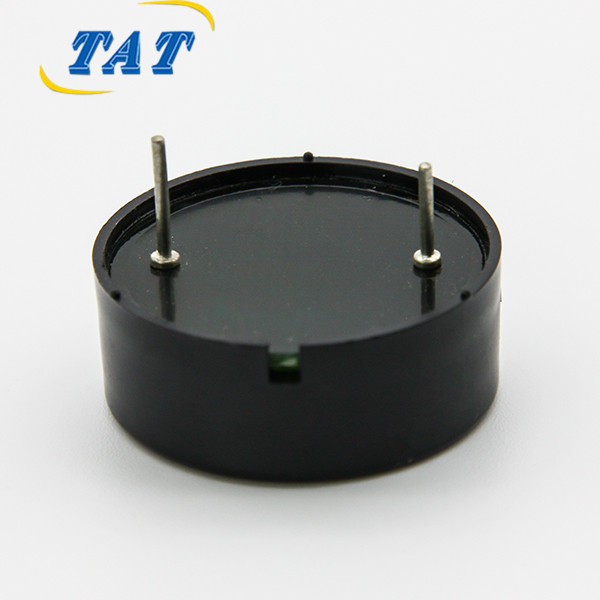

  • Through-Hole Pins, 15 mm Spacing — two Φ0.8 mm pins drop into standard PCB/terminal layouts; easy to install and replace.

  • RoHS Compliant, Black Housing.

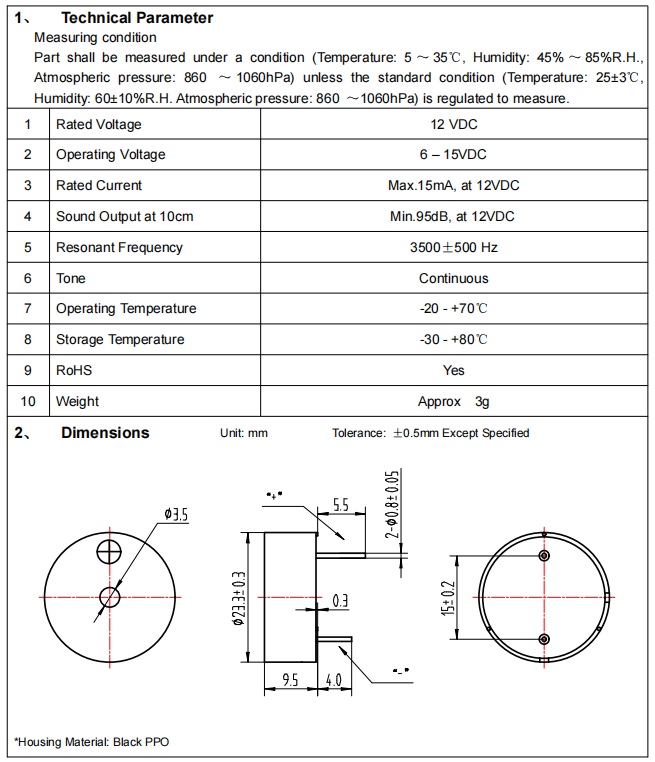

Technical Specifications

Parameter

Specification

Brand

TAT

Model

BPC2410-1232

Buzzer Type

Active Piezoelectric Ceramic Buzzer (built-in drive circuit)

Rated Voltage

12 VDC

Resonant Frequency

3200±500Hz

Sound Pressure Level

≥ 95 dB at 10 cm

Tone Pattern

Continuous

Body Diameter

Φ24.0 ± 0.3 mm

Body Height

10.0 mm

Mounting

Through-hole pins; 2 * Φ0.8 ± 0.05 mm; spacing 15 ± 0.2 mm

Top

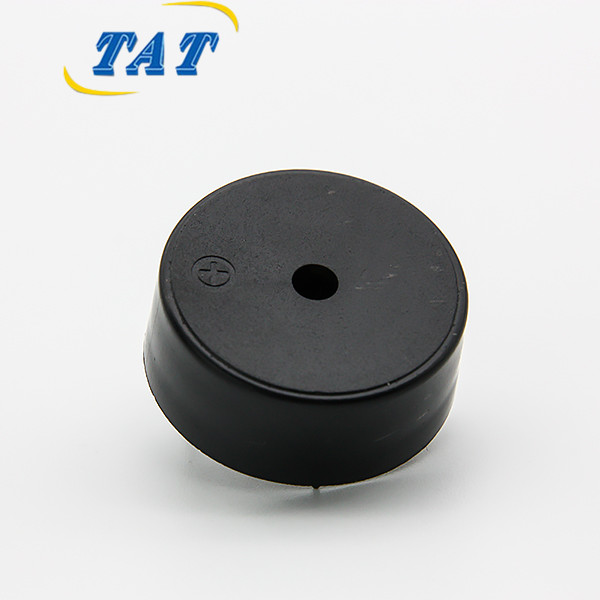

Center sound outlet

Housing

Black

Certification

RoHS Compliant

Origin

China (Guangdong)

Tolerance ±0.5 mm unless specified. Full electrical parameters (current draw, voltage range) per factory datasheet.


Typical Applications

  • Security & Access — door-access control panels, smoke detectors, perimeter alarms, emergency buttons

  • Industrial Control — PLC fault alarms, control-cabinet beepers, inverter warnings

  • Building — elevator alarms, intercoms, corridor sounders

  • Commercial — queue call systems, ATM alerts, vending machines

  • Appliances — microwave ovens, ovens, disinfection cabinets

Why Choose TAT BPC2410-1232?

  1. Simplest Design-In — active part means just switch 12 V power; no driver circuit or firmware tuning.

  2. Clearly Loud — 95 dB reaches where smaller buzzers cannot, in noisy commercial and industrial spaces.

  3. 12 V System Friendly — drops onto standard security and industrial 12 V rails.

  4. Compact 24 mm — louder than 12–16 mm buzzers without the bulk of 30/40 mm sirens.

  5. OEM Flexibility — intermittent/pulse tone variants, wire leads and connectors available.

Frequently Asked Questions

Q1: Active or passive? Active with built-in circuit. Apply 12 VDC directly and it sounds; no external square wave needed.

Q2: How loud is 95 dB? At 10 cm, 95 dB is comparable to a power tool or heavy truck — clearly audible across a large room or workspace.

Q3: Can I run it from other voltages? Rated 12 VDC; confirm operating voltage range with the factory datasheet. For 5 V / 24 V versions, ask our sales team.

Q4: How do I mount it? Insert the two pins (15 mm spacing) into your PCB or terminal block and solder/secure; the top sound outlet faces your enclosure's sound hole.

Q5: Can I get an intermittent beep version? Yes. Standard is continuous tone; intermittent and pulse patterns are available on request.
