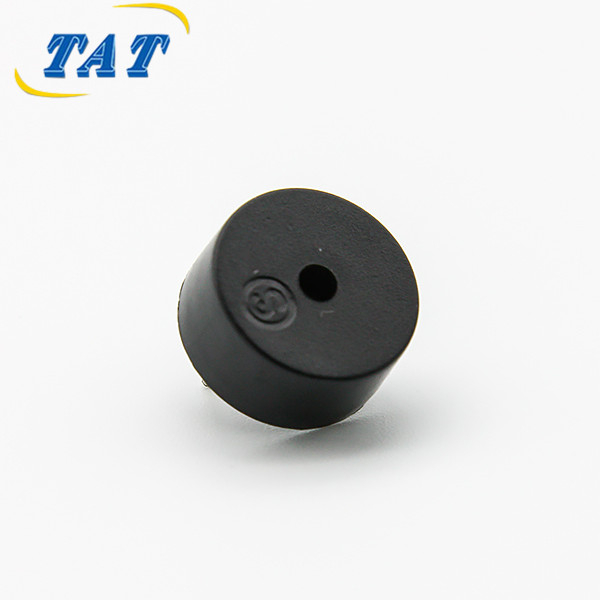

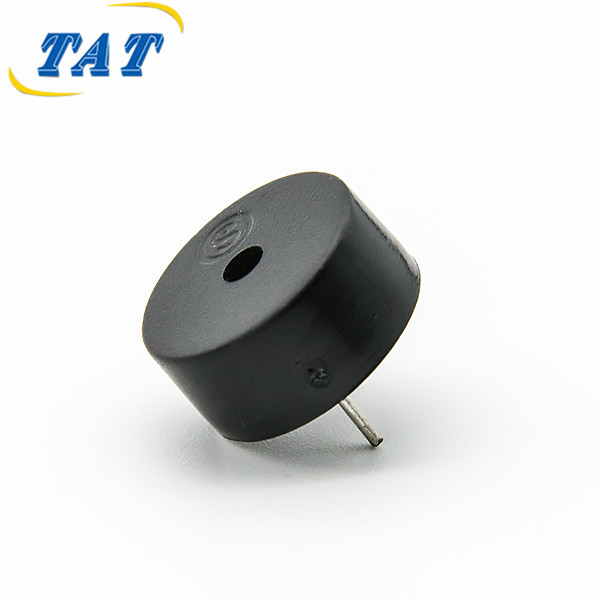

BP1255-4001
TAT
BP1255-4001
| Name: | |
|---|---|
| Resonant Frequency: | |
| Operating Voltage: | |
| Rated Current: | |
| Sound Output at 10cm: | |
| Capacitance: | |
| Net Weight: | |
| Availability: | |
| Quantity: | |
Standard 12 mm Footprint — the most common piezo buzzer size; drops into existing 12 mm designs and replaces generic units directly.
Wide Drive 1–20 Vp-p, Only 5 mA — from a 1 V battery up to 20 V industrial rails; capacitive element draws near-zero quiescent current.
≥80 dB SPL at 10 cm (5 Vp-p) — clear, standard alert tone for indoor appliances and instruments.
4 kHz Resonant, MCU-Programmable — sweep frequency in firmware for chimes and multi-tone alarms instead of a fixed beep.

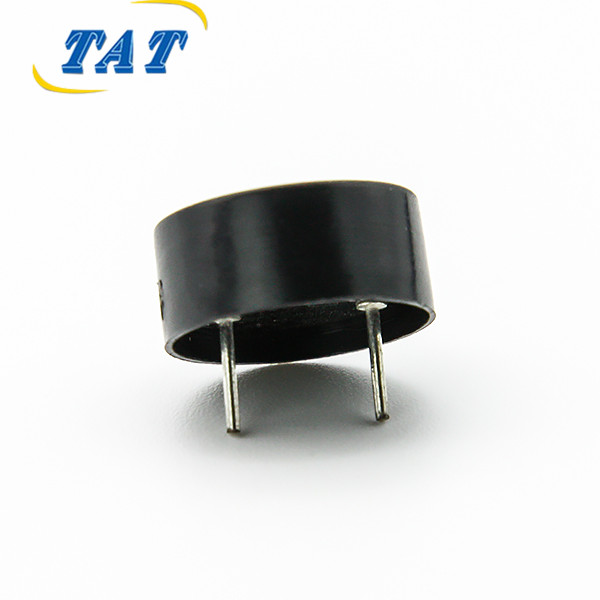

2-Pin Through-Hole, 6.5 mm Spacing — two Φ0.6 mm pins fit standard PCB pads; wave-solder and hand-solder friendly.
Economy Plastic Housing — cost-optimized build for high-volume consumer products; 0.8 g lightweight.
RoHS Compliant, -20 °C ~ +70 °C Operation.

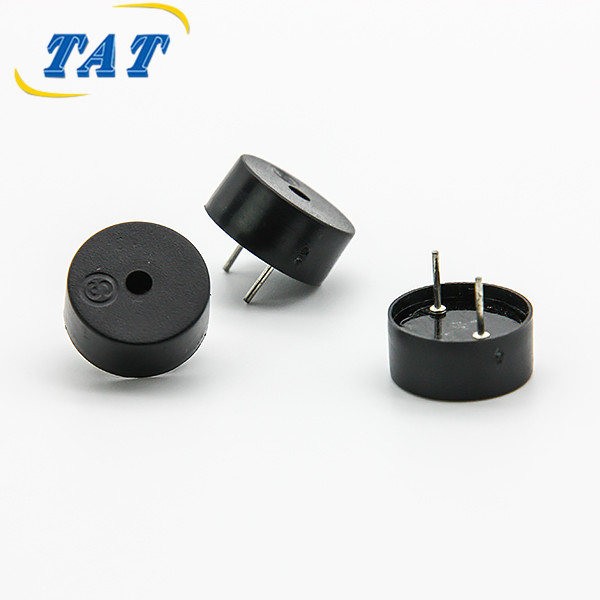

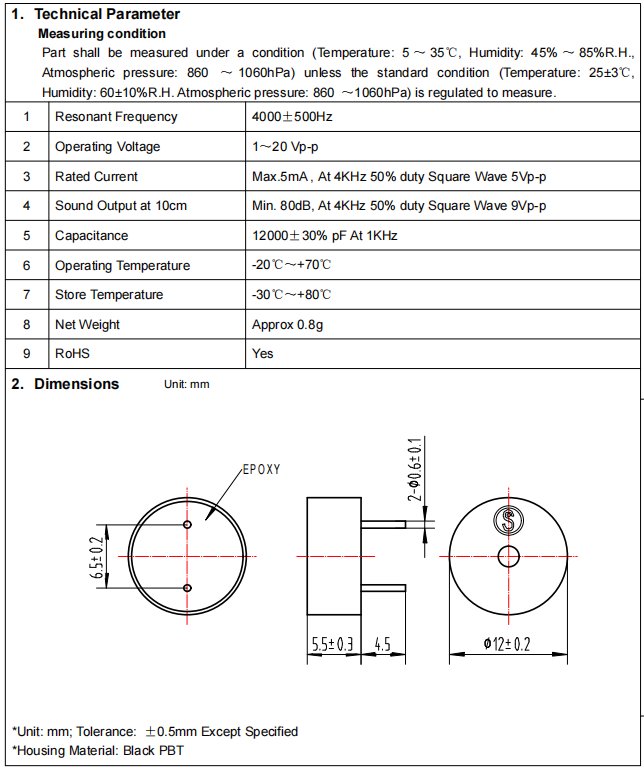

Parameter | Specification |
|---|---|
Brand | TAT |
Model | BP1255-4001 |
Buzzer Type | Passive Piezoelectric Ceramic Buzzer (without circuit) |
Resonant Frequency | 4000 ± 500 Hz |
Operating Voltage | 1 – 20 Vp-p |
Rated Current | ≤ 5 mA at 4 kHz, 50% duty square wave, 5 Vp-p |
Sound Output (SPL) | ≥ 80 dB at 10 cm, at 4 kHz 50% duty, 5 Vp-p |
Capacitance | 1200 ± 30% pF at 1 kHz |
Body Diameter | Φ12 ± 0.2 mm |
Body Height | 5.5 ± 0.3 mm |
Mounting | Through-hole pins; 2 * Φ0.6 ± 0.1 mm; spacing 6.5 ± 0.2 mm |
Housing Material | Plastic (Black PCB polarity marked) |
Net Weight | Approx. 0.8 g |
Operating Temperature | -20 °C ~ +70 °C |
Storage Temperature | -30 °C ~ +80 °C |
Tolerance | ±0.5 mm unless specified |
Certification | RoHS Compliant |
Origin | China |
Home Appliances — microwave ovens, rice cookers, washing machines, oven timers
Instruments & Meters — multimeters, temperature controllers, timers, digital scales
Security & Doorbells — door access, smoke detectors, wired doorbells
Toys & Education — electronic keyboards, quiz buzzers, learning machines
Medical Portable — glucose meters, blood pressure monitors
Networking — router/switch fault beepers
Industrial Panels — small status and warning beepers
Proven Standard Size — 12 mm is the world's most-specified piezo buzzer; no design risk, easy cross-replacement.
One Part for All Voltages — 1 to 20 Vp-p range cuts SKU count across battery, logic and industrial products.
Cost-Optimized for Volume — plastic housing and standard process deliver competitive pricing at high MOQ.
Micro-Power 5 mA — suits battery-powered and standby-alert designs.
Full OEM/ODM Flexibility — alternate frequencies, pin lengths, wire-lead versions available.
Q1: Active or passive? Passive piezo (without circuit). Feed a square wave at 4000 Hz (≈50% duty) from an MCU PWM pin; DC voltage alone produces no sound.
Q2: How do I drive it? Connect one pin to a GPIO PWM output (4 kHz square wave) and the other to GND. For 12–20 Vp-p drive, use an NPN/MOSFET stage with a current-limiting resistor.
Q3: How loud is 80 dB? At 5 Vp-p measured 10 cm away, 80 dB is a clear indoor alert — typical for appliances and instruments. Raising drive voltage toward 20 Vp-p increases SPL.
Q4: Is it SMD or through-hole? Through-hole pins (6.5 mm spacing). An SMD variant is available on request.
Q5: Can I get wire leads instead of pins? Yes. Standard is pins; wire-lead and JST connector versions are available on request.
