BP1275-45
TAT
BP1275-45
| Style: | |
|---|---|
| Operating Voltage: | |
| Rated Current: | |
| Sound Output at 10cm: | |
| Resonant Frequency: | |
| Capacitance: | |
| Net Weight: | |
| Availability: | |
| Quantity: | |

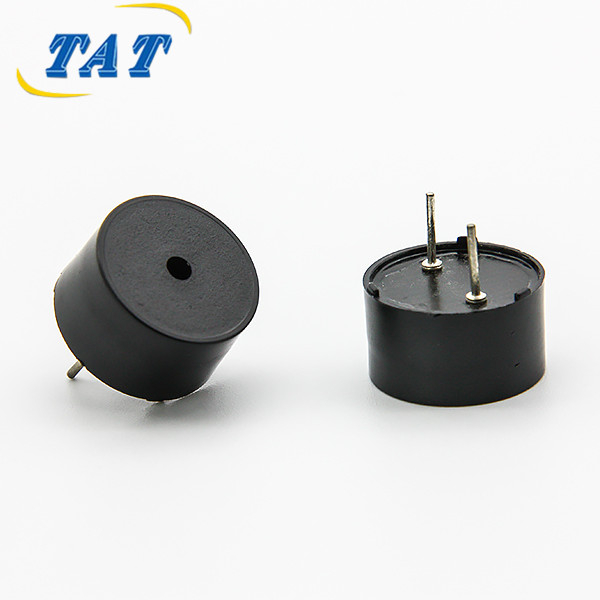

Ultra-Wide Temperature -40 °C to +85 °C — far beyond consumer-grade buzzers; dependable in freezing outdoor equipment, cold-chain cabinets, engine-adjacent panels and heated industrial enclosures.
4.5 kHz High-Pitched Alert Tone — sharp, attention-grabbing frequency that cuts through factory and road noise for fault and alarm indication.
Wide Drive 1–25 Vp-p, Only 12 mA — one part covers 1 V battery, 5 V MCU and 12/24 V industrial rails; capacitive piezo draws near-zero quiescent current.

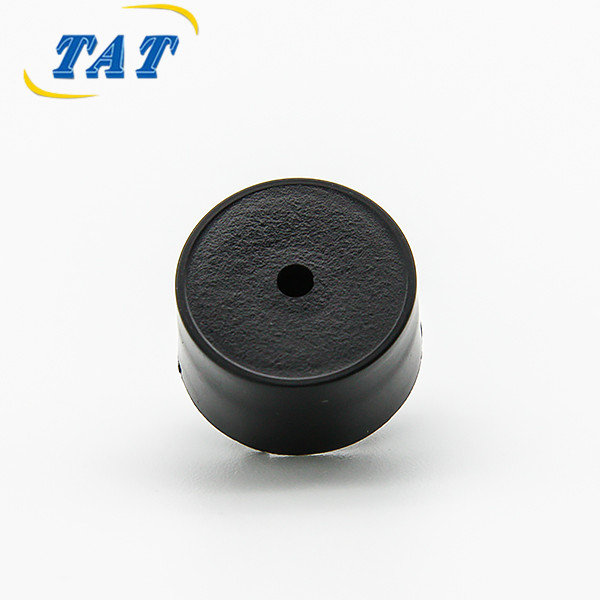

Compact Φ12.0 × 7.5 mm, 0.9 g — drops into space-constrained control boards, meters and automotive modules.

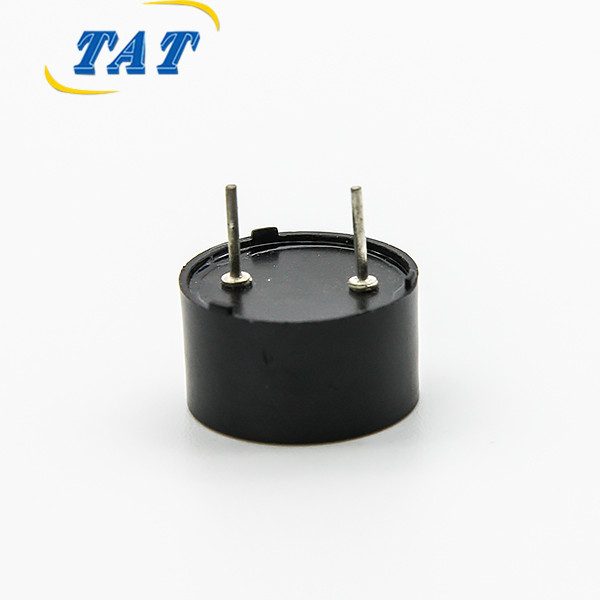

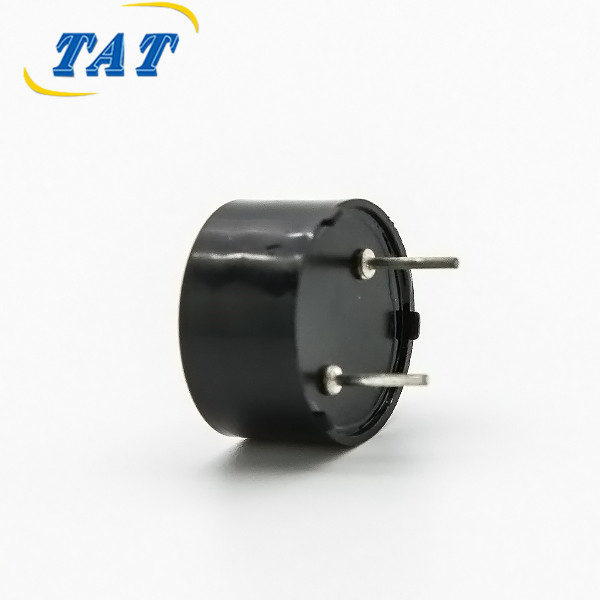

Through-Hole Pins, 3.5 mm Spacing — tin-plated brass pins on a standard small footprint; wave-solder and hand-solder friendly.
Black PBT Housing — heat-resistant engineering plastic survives soldering and thermal cycling without cracking.
MCU-Programmable Sound — passive design lets firmware sweep frequency for chimes and multi-tone alarms.
RoHS Compliant, -40 °C to +90 °C Storage.

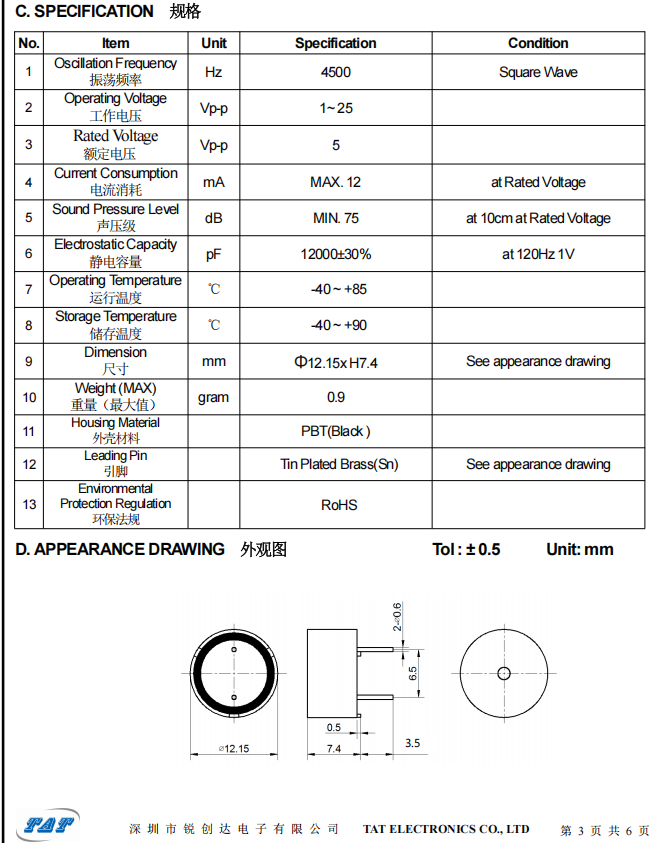

Parameter | Specification |
|---|---|
Brand | TAT |
Model | BP1275-45 |
Buzzer Type | Passive Piezoelectric Ceramic Buzzer (external square-wave drive) |
Oscillation Frequency | 4500 Hz (square wave) |
Operating Voltage | 1 – 25 Vp-p |
Rated Voltage | 5 Vp-p |
Current Consumption | ≤ 12 mA at rated voltage |
Sound Pressure Level | ≥ 75 dB at 10 cm, at rated voltage |
Electrostatic Capacity | 12000 ± 30% pF at 120 Hz, 1 V |
Body Diameter | Φ12.0 mm |
Body Height | 7.5mm |
Mounting | Through-hole pins; 2 × Φ0.6 mm; pin length 6.5 mm; spacing 3.5 mm |
Pin Material | Tin-plated brass (Sn) |
Housing Material | Black PBT |
Net Weight | ≤ 0.9 g |
Operating Temperature | -40 °C ~ +85 °C |
Storage Temperature | -40 °C ~ +90 °C |
Tolerance | ±0.5 mm unless specified |
Certification | RoHS Compliant |
Origin | China (Guangdong) |
Industrial Instruments — PLC panels, temperature controllers, VFD drives, multimeters, power supplies
Automotive — dashboard reminders, OBD modules, aftermarket alarms, cabin electronics (heat-tolerant)
Outdoor & Cold-Chain — refrigerated cabinets, outdoor weather sensors, agricultural machinery, gate controllers
Security & Alarms — access control, smoke detectors, perimeter alarm sounders
Home Appliances — microwave ovens, ovens, dryers, sterilizers
Networking — router/switch fault beepers, optical-network terminals
Low-Power IoT — wide-temperature sensor nodes, outdoor trackers
Built for -40 °C Cold and +85 °C Heat — the temperature rating is the headline: it works where -20 °C/+70 °C buzzers fail, outdoors and in cabinets.
Sharp 4.5 kHz Warning Tone — high-frequency output is instantly recognized as an alarm, not a routine beep.
One Part for Every Voltage — 1 to 25 Vp-p range removes SKU spread across battery, logic and industrial designs.
Tiny, Low-Current, Reliable — 12 mA and 0.9 g suit battery-powered and space-tight products.
Full OEM/ODM Flexibility — alternate frequencies, pin lengths, wire-lead and connector versions available.
Q1: Active or passive? Passive piezo. Feed a square wave at 4500 Hz (≈50% duty) from an MCU PWM pin; DC voltage alone produces no sound.
Q2: Why is the -40 °C to +85 °C rating important? Consumer buzzers typically stop at -20 °C / +70 °C. This part is qualified for extreme cold (outdoor, cold chain) and heat (engine bay, oven-adjacent) where reliability matters.
Q3: What voltage drives it? Rated 5 Vp-p, operating 1–25 Vp-p. Below 5 Vp-p SPL drops; for 12–25 Vp-p use a transistor/MOSFET stage with a limiting resistor.
Q4: How loud is 75 dB? At 10 cm at rated 5 Vp-p, 75 dB is a clear indoor alert; raising drive voltage toward 12–25 Vp-p increases SPL further.
Q5: Is it SMD or through-hole? Through-hole pins (3.5 mm spacing). We also offer SMD variants — specify your assembly method.
Q6: Can I get wire leads instead of pins? Yes. Standard is pins; wire-lead and JST connector versions are available on request.
