BP3017W50-28
TAT
BP3017W50-28
| Style: | |
|---|---|
| Operating Voltage: | |
| Rated Current: | |
| Sound Output at 10cm: | |
| Resonant Frequency: | |
| Capacitance: | |
| Net Weight: | |
| Availability: | |
| Quantity: | |

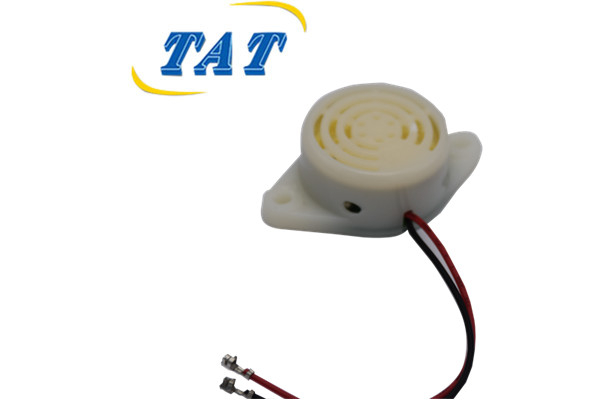

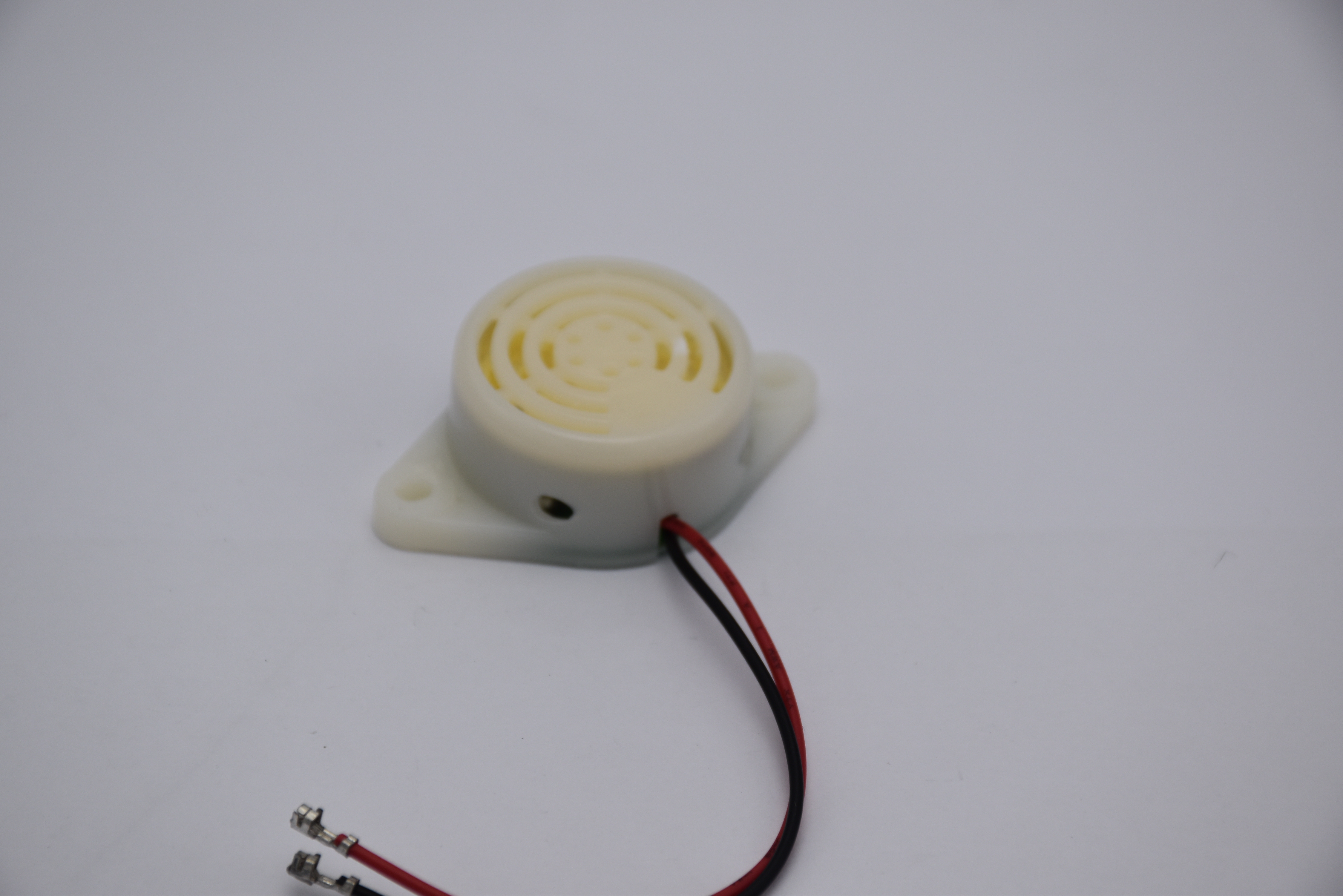

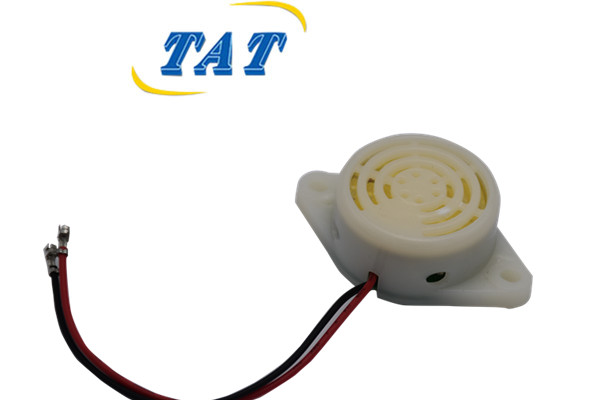

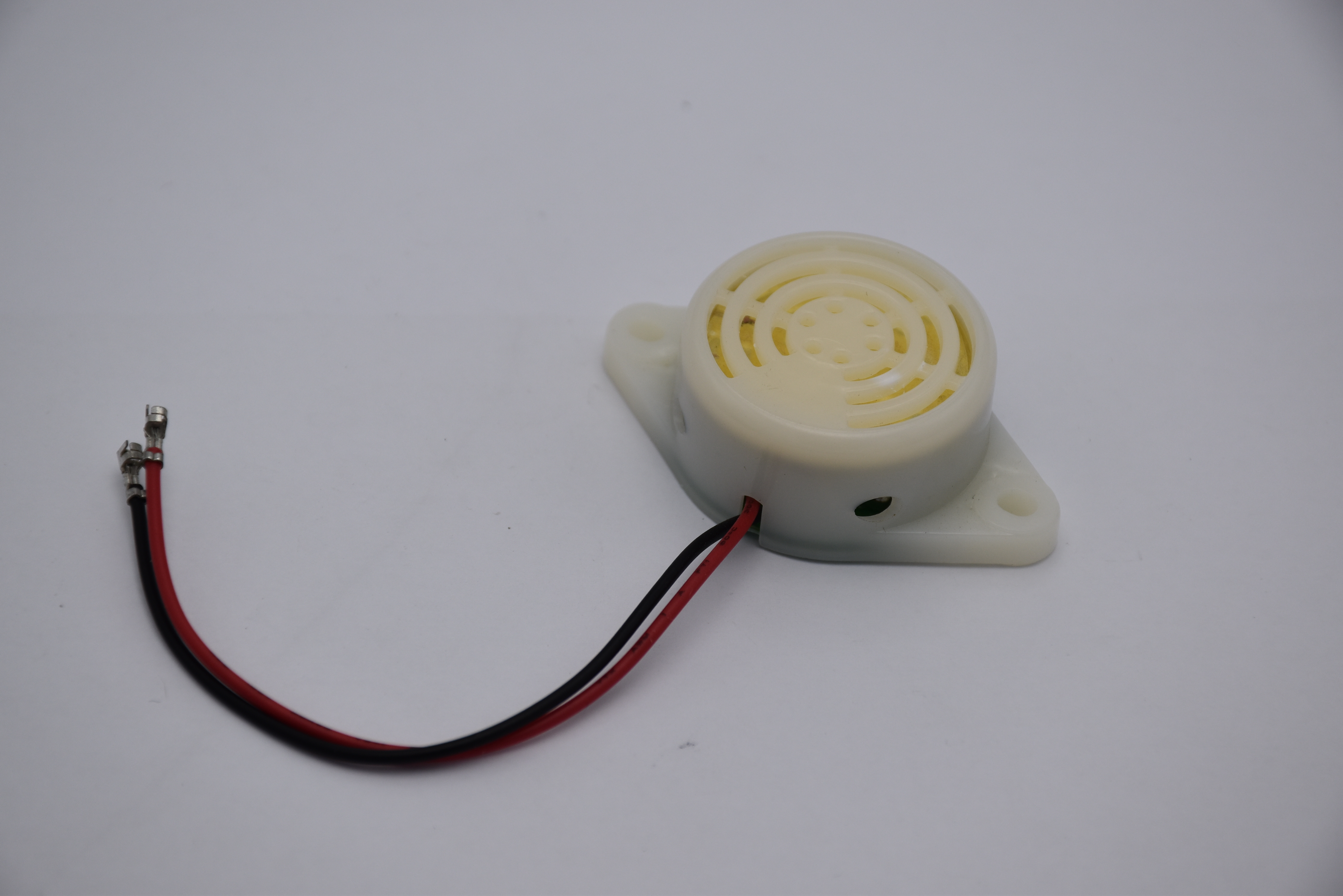

Flange Mount Φ30 mm, Wire-Lead Output — pre-crimped 87 mm red/black UL1571 leads connect straight to terminals; no PCB soldering or connector needed.
≥90 dB Loud Output at 9 Vp-p — high-decibel security/industrial alarm tone heard across rooms and work areas.
Wide Drive 1–25 Vp-p, Only 9 mA — covers 1 V battery up to 25 V industrial rails; capacitive piezo draws near-zero quiescent current.
3.4 kHz Penetrating Alarm Tone — high-frequency sound cuts through ambient noise for warning and emergency indication.
25000 pF Large Ceramic Element — high electro-acoustic efficiency, solid-state with no moving contacts, long life.
Black ABS Housing, 6.4 g — compact flange disc with center Φ6 mm sound outlet.
RoHS Compliant, -20 °C ~ +60 °C Operation.

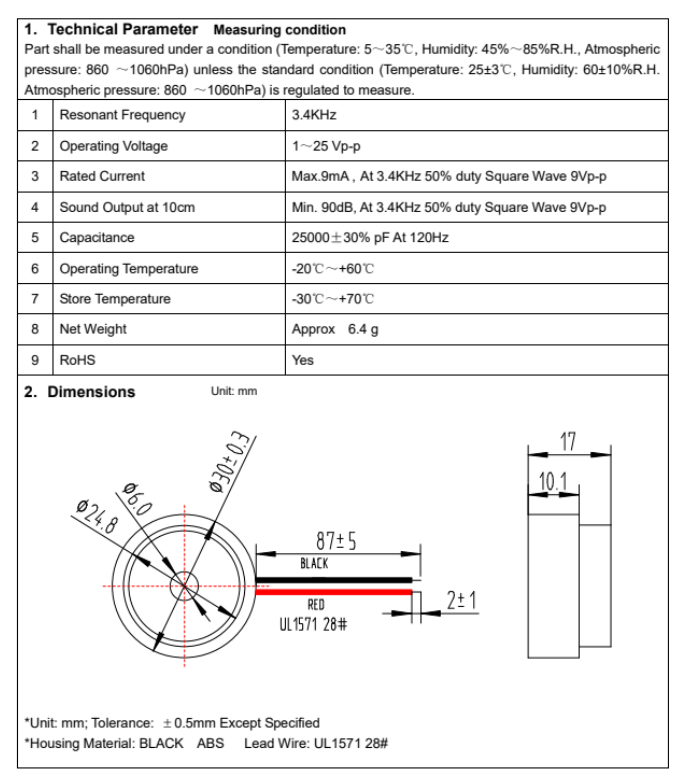

Parameter | Specification |
|---|---|
Brand | TAT |
Model | BP3017W50-28 |
Buzzer Type | Passive Piezoelectric Ceramic Buzzer (external square-wave drive) |
Resonant Frequency | 3.4 kHz |
Operating Voltage | 1 – 25 Vp-p |
Rated Current | ≤ 9 mA at 3.4 kHz, 50% duty square wave, 9 Vp-p |
Sound Output (SPL) | ≥ 90 dB at 10 cm, at 3.4 kHz 50% duty, 9 Vp-p |
Capacitance | 25000 ± 30% pF at 120 Hz |
Flange Diameter | Φ30 ± 0.3 mm |
Body Diameter | Φ25.0 mm |
Body Thickness | 17.0 mm |
Center Sound Hole | Φ6.0 mm |
Lead Wire | UL1571 28#, red/black |
Lead Length | 87 ± 5 mm |
Housing Material | Black ABS |
Net Weight | Approx. 6.4 g |
Operating Temperature | -20 °C ~ +60 °C |
Storage Temperature | -30 °C ~ +70 °C |
Tolerance | ±0.5 mm unless specified |
Certification | RoHS Compliant |
Origin | China (Guangdong) |
Security & Alarm — door access, smoke detectors, perimeter alarms, emergency buttons, continuous-tone sounders
Industrial — PLC fault alarms, control-cabinet beepers, inverter warnings
Building — elevator alarms, intercoms, fire-alarm sounders
Commercial — queue callers, ATM alerts, vending machines
Appliances — ovens, microwave ovens, disinfection cabinets
Wire Leads = Fast Wiring — no PCB footprint, no connector; mount and wire straight to terminals in panels and enclosures.
90 dB Security-Grade Volume — loud enough for corridors, warehouses and alarm systems.
One Part for All Voltages — 1–25 Vp-p range spans battery, logic and industrial supplies.
Micro-Power 9 mA — suits standby alarm systems on backup batteries.
OEM Flexibility — intermittent/pulse tones, custom lead lengths, connectors and IP54-rated builds available.
Q1: Active or passive? Passive piezo. Feed a square wave at 3.4 kHz (≈50% duty) from an MCU PWM or oscillator; DC voltage alone produces no sound.
Q2: How do I wire it? Red and black UL1571 28# leads (87 mm long) connect to your drive circuit terminals — red to drive, black to ground. No soldering to the buzzer itself.
Q3: How loud is 90 dB? At 9 Vp-p measured 10 cm away, 90 dB is a loud alarm tone — clearly audible across a room or workspace.
Q4: Can I run it from 12 V or 24 V? Yes. The 1–25 Vp-p range covers 12 V and up to 25 V; use a current-limiting resistor for high-voltage drive.
Q5: Can I get an intermittent beep or IP54 version? Yes. Standard is continuous passive tone; intermittent/pulse patterns and IP54 sealed versions are available on request.
