Passive Piezo Design: No internal oscillation circuit, tone & beep type adjustable by MCU driving signal.
Ultra-Low Current Consumption: Max rated current only 5mA, saving power for battery-operated electronics.
Thin & Compact Structure: 2.5mm thin thickness, saves PCB vertical space for slim product design.
High Sound Output: Minimum 85dB at 10cm distance, clear audible prompt tone.
Wide Driving Voltage: Supports 1~25Vp-p square wave input, compatible with most MCU circuits.
Pin Mount Type: Through-hole pin design for easy soldering on PCB board.
RoHS Compliance: Meets global environmental requirements for export electronic products.
Item | Specification | Test Condition |
|---|---|---|
Model | TAT BP1325W30-48 | - |
Type | Passive Piezoelectric Ceramic Buzzer, Pin Mount | - |
Resonant Frequency | 6500 ±500 Hz | - |
Operating Voltage | 1 ~ 25 Vp-p | Square wave signal |
Rated Current | Max.5mA | At 6.5KHz, 50% duty Square Wave,10Vp-p |
Sound Output | Min.85dB @10cm | At 6.5KHz, 50% duty Square Wave,10Vp-p |
Capacitance | 10000 ±30% pF | At 1KHz |
Operating Temperature | -20℃ ~ +60℃ | - |
Storage Temperature | -30℃ ~ +70℃ | - |
Net Weight | Approx.0.4g | - |
Compliance | RoHS | Yes |
Unless otherwise specified, parts are measured under ambient condition: Temperature: 5 ~ 35℃, Humidity: 45% ~ 85%R.H., Atmospheric pressure: 860 ~ 1060hPa. Standard measuring condition: Temperature: 25±3℃, Humidity: 60±10%R.H., Atmospheric pressure: 860 ~1060hPa.
This passive piezoelectric buzzer works based on the piezoelectric effect of ceramic wafer. When square wave signal is applied to piezo ceramic sheet, the ceramic will deform and vibrate rapidly to generate sound. Different from active buzzers, it does NOT contain built-in oscillation circuit. External MCU square wave drive signal is mandatory. You can customize different beep sounds by adjusting the output signal.
This 13*2.5mm pin mount passive piezo buzzer is commonly used for audio prompt:
Household appliances reminder
Smart sensors & IoT modules
Portable handheld electronic products
Medical equipment indicator
Small instrument warning alarm
Wearable electronic devices
We are professional manufacturer of electro-acoustic components. Customization available for resonant frequency, sound level and pin specification. Samples can be provided for prototype performance testing before mass production. RoHS certificate can be issued upon request. Please contact our sales engineer to get quotation and MOQ details.
Q: Is this buzzer active or passive? A: It is passive piezo buzzer. External MCU square wave driving signal is required, no built-in oscillator.
Q: What driving signal does it need? A: Square wave signal, working voltage range 1~25Vp-p.
Q: What is the sound loudness? A: Minimum 85dB measured at 10cm under 10Vp-p, 6.5KHz square wave.

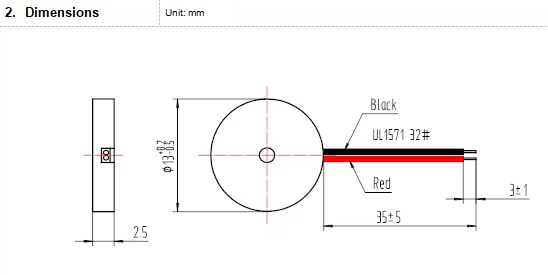

Q: What is the dimension? A: 13mm diameter, 2.5mm thickness, pin mount package.
Q: Can I get samples for testing? A: Yes, samples are available for customer verification.
Q: Does it comply with RoHS? A: Yes, the buzzer meets RoHS standard.
