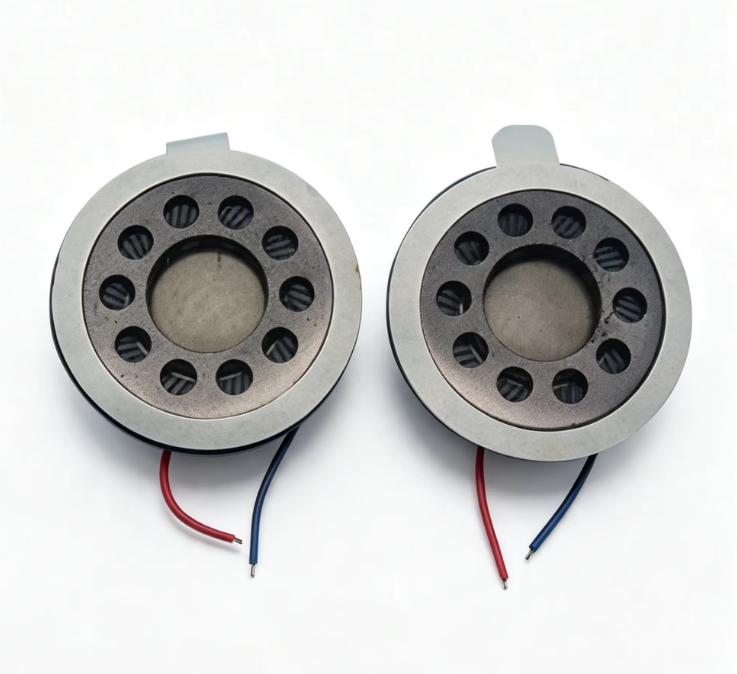

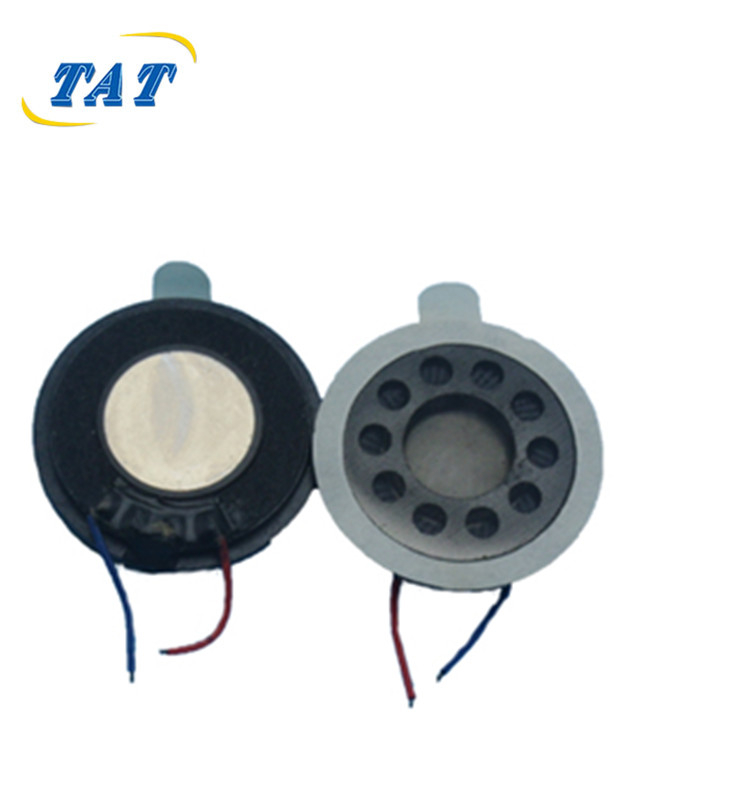

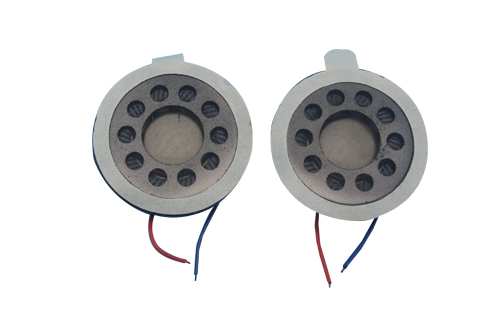

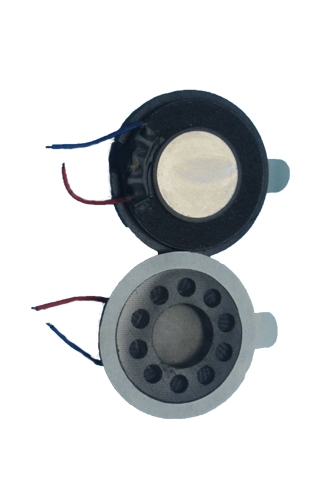

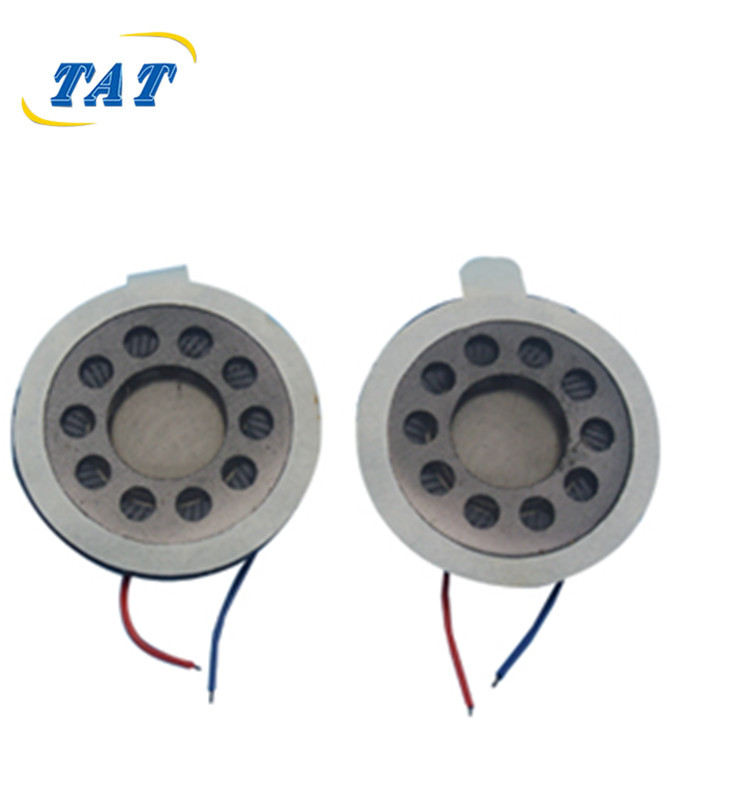

TATSP20B-001 is a 20mm Mylar speaker with a mounting flange and red/black leads. Rated 8Ω/0.5W and delivering a high 95dB, it plays loud from a tiny MP3 or Bluetooth module. An F0 of 650Hz plus response up to 20 kHz keeps both bass and detail, and the IP64 rated construction resists dust and splash water for outdoor and semi-outdoor voice use.
  • TATSP20B-001

  • TAT

  • TATSP20B-001

Model No.:
Dimension:
Sound Pressure Level(dB):
Impedance(Ω):
Input Power (W):
Resonance Frequency fo (Hz):
Frequency Range (Hz):
Availability:
Quantity:

Key Features

  • 95 dB High Sensitivity — small amplifiers play loud and save battery at 0.5 W.

  • IP64 Dust & Splash Resistant — sealed build suits outdoor, doorbell and humid-enclosure installs.

  • F0 650 Hz, Response to 20 kHz — warm bass with clear highs; music and voice both sound full.

  • 8 Ω ±20% / 0.5 W (1 W Max) — standard impedance for MP3, Bluetooth and small audio modules.

  • Mounting Flange + 80 mm Red/Black Leads — screw the ear to the panel and route leads straight to terminals; no soldering at the speaker.

  • Compact Φ20 mm Flange, 8.2 mm Deep — fits compact voice and MP3 enclosures.

  • RoHS Compliant.

Technical Specifications

Parameter

Specification

Brand

TAT

Model

TATSP20B-001

Speaker Type

Mylar (thin-film) Dynamic Speaker, Flange Mount

Rated Impedance

8 ± 20% Ω at 1 kHz, 1 Vrms

Input Power

Normal 0.5 W, Max 1.0 W

Sensitivity (SPL)

95 ± 3 dB at 0.5 W / 10 cm, averaged at 0.8 / 1.0 / 1.2 / 1.5 kHz

Resonance Frequency (F0)

650 ± 20% Hz

Frequency Range

F0 – 20 kHz

Flange Diameter

Φ20 ± 1.2 mm

Body Diameter

Φ13.8 ± 0.2 mm

Body Depth

8.2 ± 0.2 mm

Mounting

Flange ear, 4.3 ± 0.3 mm (M3 hole)

Lead Wire

Red/Black, 1.5 ± 0.3 mm², length 80 ± 3 mm

Protection Rating

IP64

Operating Temperature

-20 °C ~ +50 °C

Storage Temperature

-40 °C ~ +85 °C

Tolerance

±0.5 mm unless specified

Certification

RoHS Compliant

Origin

China (Guangdong)


Typical Applications

  • MP3 & Voice Modules — voice prompt boxes, MP3 players, announcers

  • Portable Audio — Bluetooth mini speakers, music boxes

  • Outdoor / IP64 — doorbells, garden speakers, weatherproof enclosures

  • Commercial — queue callers, POS voice, digital signage

  • Medical & Desktop — monitor prompts, device alerts

Why Choose TATSP20B-001?

  1. 95 dB from 0.5 W — exceptional efficiency lets small modules play loud without draining batteries.

  2. IP64 Built for Outdoors — dust and splash resistant for doorbell and semi-outdoor use.

  3. Full-Band Sound — F0 650 Hz to 20 kHz covers voice and music with detail.

  4. Flange + Leads, No Soldering — screw-mount and pre-wired leads simplify assembly.

  5. OEM Flexibility — 4 Ω / 16 Ω, custom lead lengths and higher IP ratings available.

Frequently Asked Questions

Q1: How loud is 95 dB? At 0.5 W measured 10 cm away, 95 dB is a loud, clear output — high efficiency means even a small MP3/Bluetooth module plays at useful volume.

Q2: Is it waterproof? The speaker is rated IP64 (dust-protected and splash-water resistant). For full immersion, specify a higher IP version.

Q3: What amplifier works? Any 8 Ω amp rated 0.5–1 W: PAM8303, NS4150, or built-in MP3/Bluetooth modules.

Q4: How do I mount and wire it? Screw the flange ear to the panel; connect RED to + and BLACK to −. Add a rear chamber and foam gasket for best bass.

Q5: Can I get 4 Ω or 16 Ω? Yes. Standard is 8 Ω; 4 Ω / 16 Ω and custom lead lengths are available on request.
