Home » Products » Speaker » Mylar Speaker » 8Ohm 0.8W 26mm Micro Mylar Speaker with 1.0-2P Connector, Factory Supply Alarm Speaker

TATSP26A-001 8ohm 0.8w Micro Mylar Speaker , Direct Factory Supply Alarm Speakers, Perfect for Bulk Wholesale Purchasers

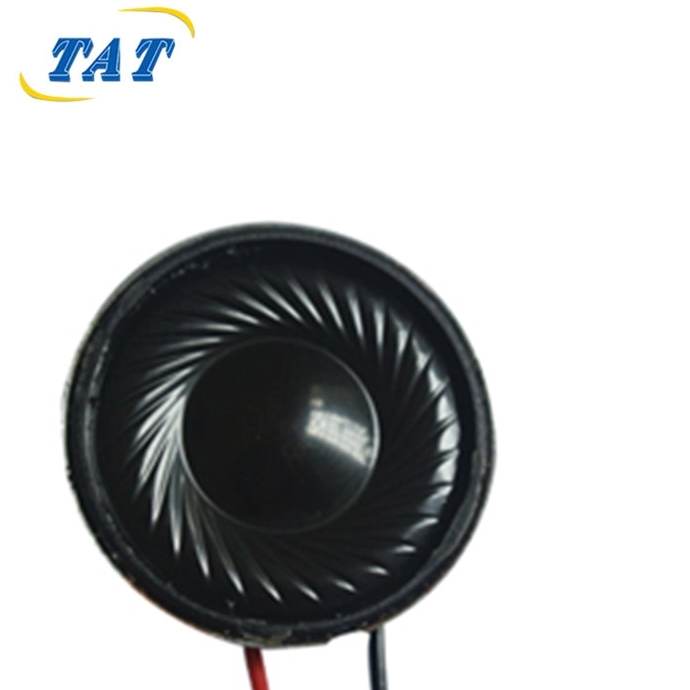

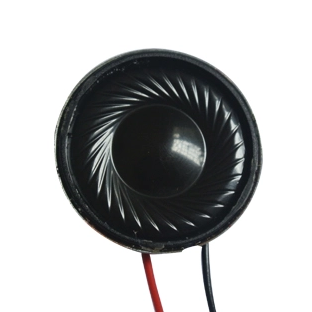

8Ohm 0.8W 26mm Micro Mylar Speaker with 1.0-2P Connector, Factory Supply Alarm Speaker

This micro Mylar speaker is rated 8 Ohm, 0.8W, with 26mm outer diameter. It adopts high-performance Mylar diaphragm for crisp and stable sound output. Pre-assembled with 80mm twisted black-white wire and Huabao 1.0-2P 2pin connector for easy plug-and-play installation. Compact thin structure makes it ideal for alarm systems and many small portable electronic devices. We are the direct manufacturer in China and provide samples plus custom service for bulk wholesale orders.

Model:
TATSP26A-001
Brand:
TAT
Code:
TATSP26A-001

Dimension:	26mm
Sound Pressure Level(dB):	99±3 at 0.8W/10cm(0.8,1.0,1.2,1.5KHz)
Impedance(Ω):	8±20% at 1KHz ,1Vrms
Input Power (W):	Normal 0.8,Max 1.0
Resonance Frequency fo (Hz):	650±20%
Frequency Range (Hz):	F0~5K
Operating Temperature (℃):	-30~+85
Availability:

Quantity:



Inquire Add to Basket

Product Description

Key Features

Mylar diaphragm speaker, lightweight and excellent fatigue resistance
Rated impedance: 8Ω, rated power: 0.8W
Outer diameter Φ26±0.2mm, ultra-thin compact outline, save device internal space
Pre-wired with 80±5mm twisted black & white cable, wire diameter 0.7mm
Equipped with Huabao 1.0-2P connector; White = positive, Black = negative
Clear voice & alert tone, perfect for alarm reminder and small audio equipment
Stable acoustic performance, long service life
Direct factory supply, competitive wholesale price
RoHS compliant for global export
Customizable wire length, printing logo and connector type for mass orders

Specifications

Item	Parameter
Speaker Type	Mylar Diaphragm Micro Speaker
Impedance	8 Ohm (8Ω)
Rated Power	0.8W
Outer Diameter	Φ26 ±0.2 mm
Thickness	4.4 ±0.3 mm
Cable	80±5mm twisted black-white wire, wire dia 0.7mm
Connector	Huabao 1.0-2P 2pin connector
Polarity	White(+), Black(-)
Tolerance	±0.5mm unless specified
Compliance	RoHS

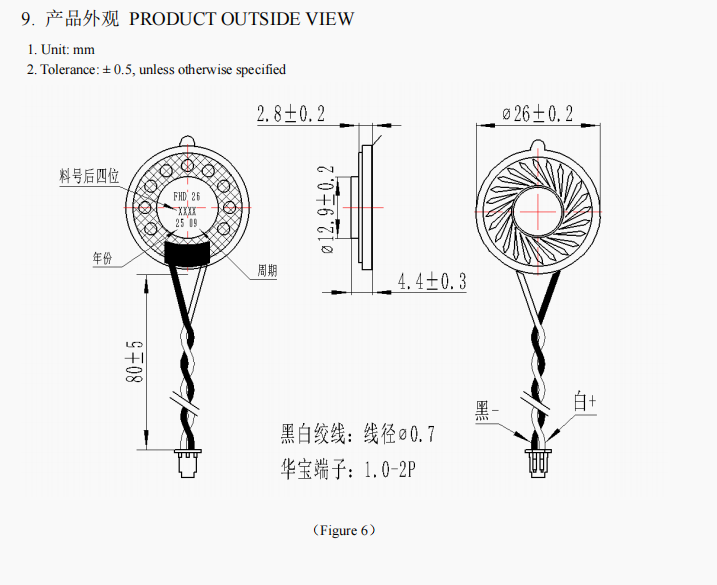

Product Dimension & Structure

This small mylar loudspeaker comes with a Φ26mm round shape. The engineering drawing shows complete outline dimension and assembly structure. It is pre-connected with twisted pair cable to reduce noise interference. The 1.0-2P plug connector helps customers save soldering work during mass production. Polarity marking is clearly defined on cable ends to avoid wiring mistakes. Laser marking on speaker surface supports traceability and custom logo.

Applications

Our micro Mylar speakers are widely used for voice and alarm audio output:

Security alarm & warning devices
Portable handheld electronics
Medical reminder equipment
Smart home small appliances
Wearable audio modules
Industrial prompt devices
Bluetooth mini audio accessories

FAQ

Q1: What is Mylar diaphragm? Mylar diaphragm is polyester film, features thin, light, water-resistant and anti-fatigue characteristics, widely used in miniature speakers for clear alert sound.

Q2: Can you change the wire length or connector? Yes, we support custom wire length and different connector types for bulk orders.

Q3: Can we get samples for sound testing? Sample service is available for your prototype and performance verification.

Q4: What is your MOQ and production lead time? Flexible MOQ. Please contact our sales team for wholesale price and production schedule.

Q5: Is this speaker RoHS compliant? Yes, our Mylar speakers meet RoHS standard for worldwide export electronics.
