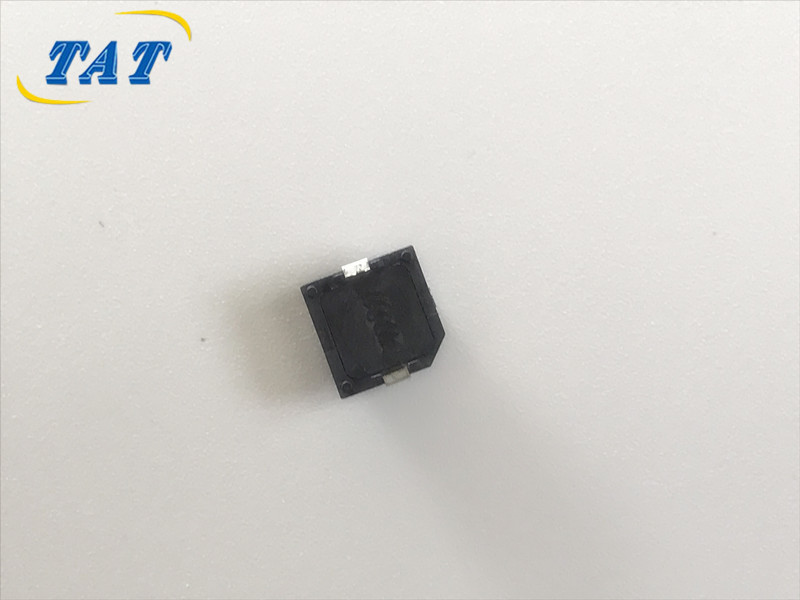

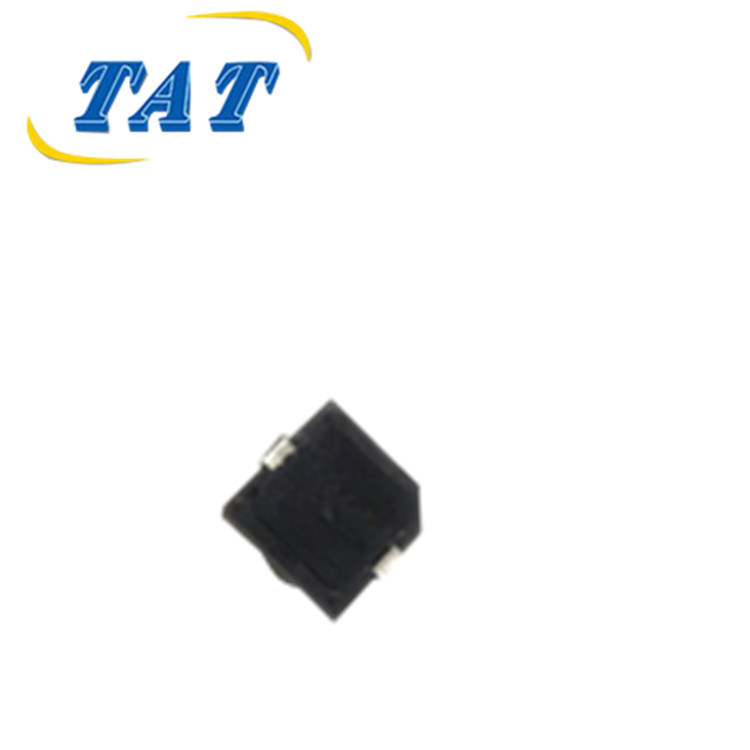

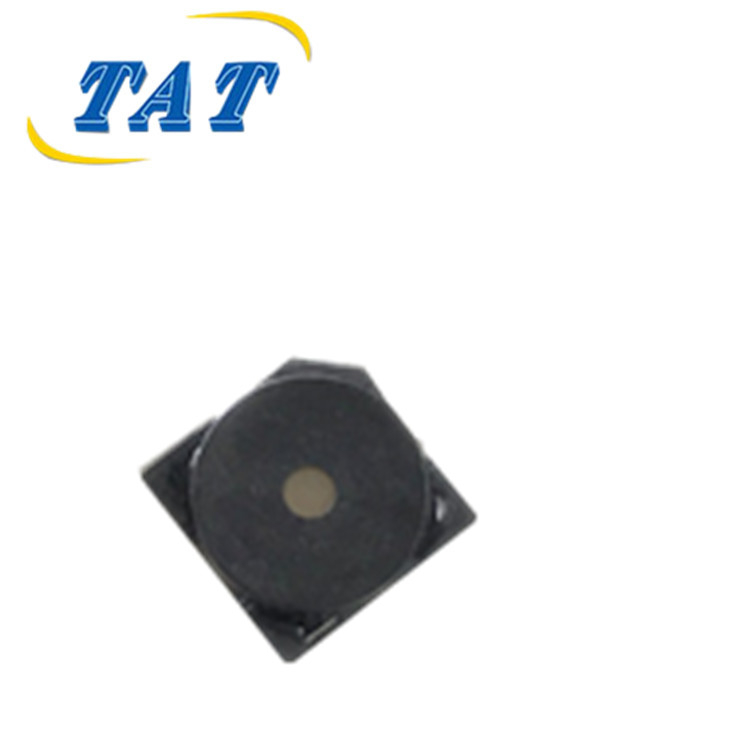

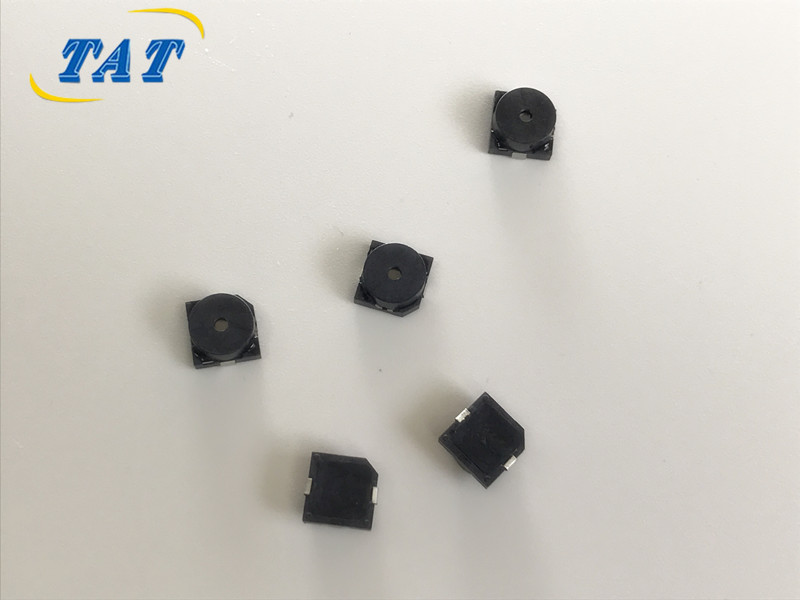

TAT BMC9650S-0524 Magnetic Buzzer Pin Mount 9.6*5.0mm 4-7VDC 2400Hz

The electromagnetic buzzer is an electro‑acoustic component that generates sound through the interaction between an internal electromagnetic coil and a metal diaphragm. When electric current passes through the coil, a magnetic field is produced, causing the diaphragm to vibrate rapidly and output clear prompt tones. Featuring simple structure, fast response and loud sound output, electromagnetic buzzers are widely used in various electronic devices requiring stable audio feedback.

Product Advantages

1. Compact & Light‑weight Design

Electromagnetic buzzers feature small dimension, thin thickness and light weight, which can be easily built into compact electronic devices and high‑density PCB layouts. With compact internal construction and high mechanical reliability, they save valuable internal space, making them ideal for portable and miniaturized electronic products.

Keywords: compact buzzer, lightweight buzzer, small‑size electromagnetic buzzer, micro buzzer

2. Loud Sound & Fast Response

Electromagnetic buzzers deliver high sound pressure level and produce clear alert tones immediately after power‑on. With good sound propagation performance, they work well in noisy environments for user reminders, and are widely adopted in alarms, doorbells, instruments and status‑notification equipment.

Keywords: high‑decibel buzzer, fast‑response buzzer, alarm buzzer, loud electromagnetic buzzer

3. Low Power Consumption & Stable Performance

Electromagnetic buzzers consume low operating current and fit battery‑powered devices. They maintain stable performance without obvious sound attenuation during long‑time continuous or intermittent beeping operations, suitable for scenarios requiring frequent audio alerts.

Keywords: low‑power buzzer, energy‑saving buzzer, stable buzzer, battery‑powered buzzer

4. Easy‑to‑drive & Convenient Integration

Electromagnetic buzzers can be driven by DC or pulse signals with simple peripheral circuits. They are easy to connect with single‑chip microcomputers, control boards and various electronic systems. Simple mounting structure allows fast integration into home appliances, industrial equipment, automotive electronics and smart devices.

Keywords: DC buzzer, electromagnetic‑type buzzer, easy‑integrated buzzer, PCB‑mount buzzer

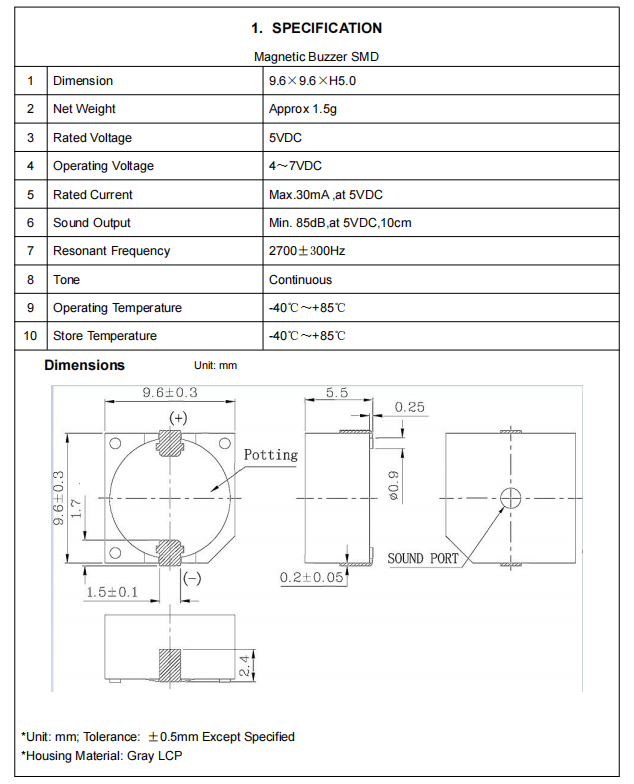

Technical Parameters

Product Applications

1. Consumer Electronics & Smart Devices

Electromagnetic buzzers are commonly used in smart phones, smart watches, tablets, remote controllers and small smart devices for notification alerts, keypad tones, alarm signals and status reminders. Compact size and clear sound enhance human‑machine interaction and user experience for portable electronics.

2. Home Appliances

They are applied in microwave ovens, rice cookers, washing machines, air‑conditioners, water dispensers and other small home appliances, to deliver completion reminders, timing alerts and fault warnings, providing stable audible feedback for household equipment.

3. Alarm & Security Systems

Suitable for smoke detectors, gas alarms, anti‑theft alarm devices, fire‑safety equipment and emergency warning systems. High sound pressure and quick response can notify users of abnormal conditions promptly, improving safety for residential and commercial premises.

4. Automotive Electronics

Electromagnetic buzzers serve for dashboard reminders, reverse parking alerts, seat‑belt warning, door‑ajar notification and vehicle fault alarms. They keep stable performance under vehicle voltage fluctuation and vibration conditions for automotive applications.

5. Industrial Control & Automation

Used in industrial equipment, CNC machines, automated production lines, instruments and controllers for fault alarms, status indication and operation prompts. Good durability and reliability meet the requirements of harsh industrial operating environments.

Product Selection Guide

When selecting an electromagnetic buzzer, first confirm the drive type: active self‑driven type or pulse‑driven type, and verify that the rated voltage matches your system circuit.

Select proper outline dimension and pin configuration according to mounting space, to fit your PCB footprint or installation holes.

Evaluate required sound pressure based on application scenarios: 80‑95dB for normal prompt use; 95‑110dB is recommended for alarm or noisy surroundings.

Check operating temperature range, interface specification and reliability standards to guarantee long‑term stable performance.
